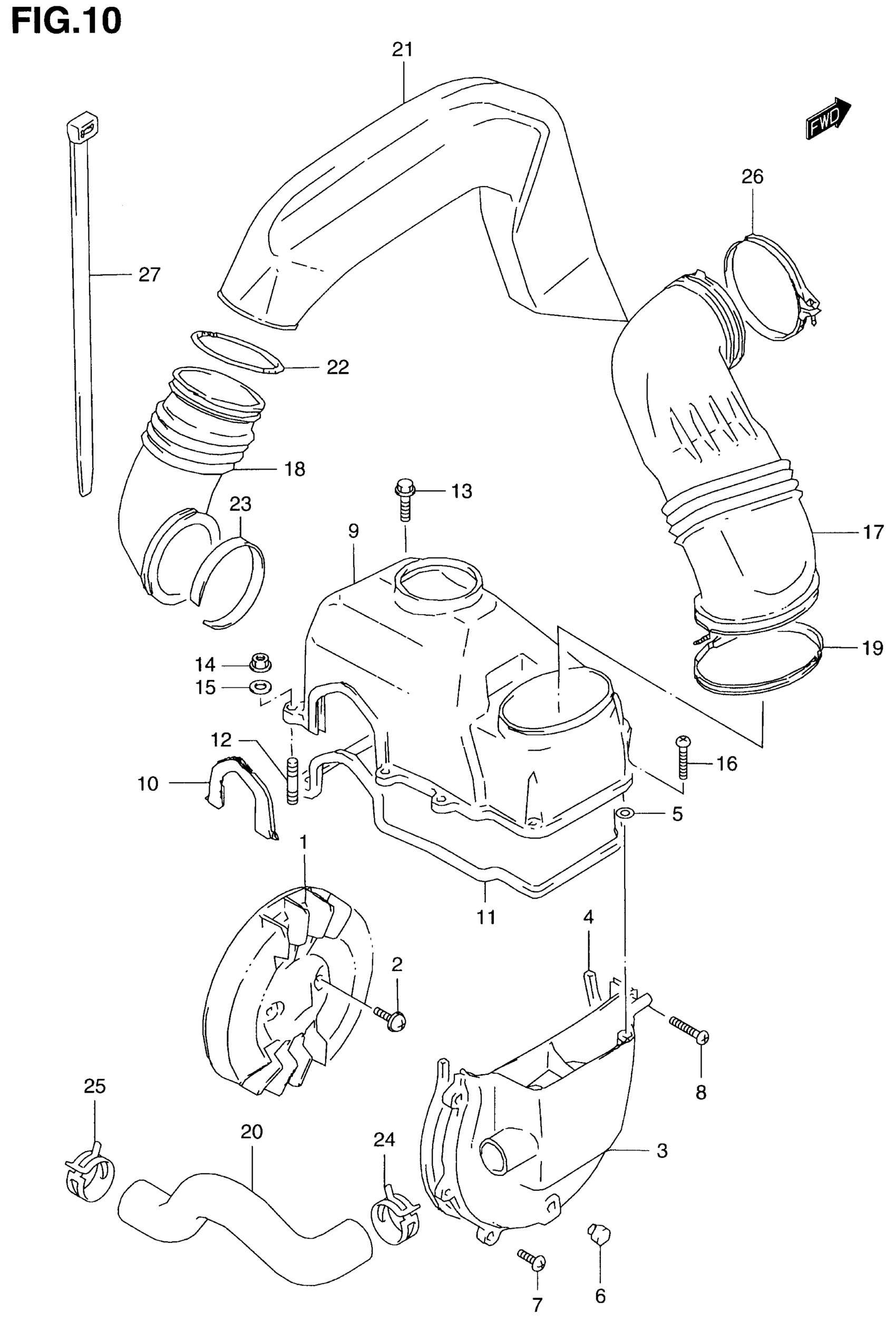

Suzuki LT80 (2001) COOLING FAN Diagram

#

Description
Price

1

FAN, COOLING

17110-40B00

$19.98

2

SCREW This part replaces 02112-16123.

02112-1612B

$3.03

3

COVER, COOLING FAN

17121-40B20

$40.44

4

GASKET

17132-40B00

$6.28

5

GASKET

17125-40B00

$2.18

6

PLUG, DRAIN

17124-40B00

$3.29

7

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

8

SCREW This part replaces 02142-06253.

02142-0625A

$1.49

9

COWLING, CYLINDER

17131-40B20

$61.55

10

SEAL

17140-40B00

$27.89

11

GASKET

17132-40B00

$6.28

12

STUD BOLT This part replaces 01421-06208.

01421-0620A

$1.91

13

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

14

NUT

08319-31067

$2.03

15

WASHER | ~E.NO.177448

08211-06121

$1.54

15

.WASHER | E.NO.177449~ This part replaces 08322-01063.

08322-0106B

$2.26

16

SCREW | ~E.NO.179008 This part replaces 03541-04353.

03541-0435B

$2.15

16

SCREW | E.NO.179009~ This part replaces 03541-04253.

03541-0425B

$2.12

17

DUCT, CYLINDER COOLING IN

17151-40B01

$60.97

18

DUCT, CYLINDER COOLING OUT

17181-40B01

$28.15

19

CLAMP

17155-40B00

$8.70

20

DUCT, BELT COOLING OUT

17171-40B01

Unavailable

21

DUCT, CYLINDER COOLING OUT

17183-40B00

$62.70

22

CLAMP

13826-38300

$3.56

23

RING

17182-40B00

$7.73

24

CLIP

09401-30404

$4.79

25

CLIP | MODEL T/V/W This part replaces 09401-34402.

09401-33401

$6.18

25

CLIP | MODEL X/Y/K1

09401-33401

$6.18

26

CLAMP This part replaces 09402-82202.

09402-82208

$6.17

27

CLAMP (L:386)

09407-38401

$9.83
