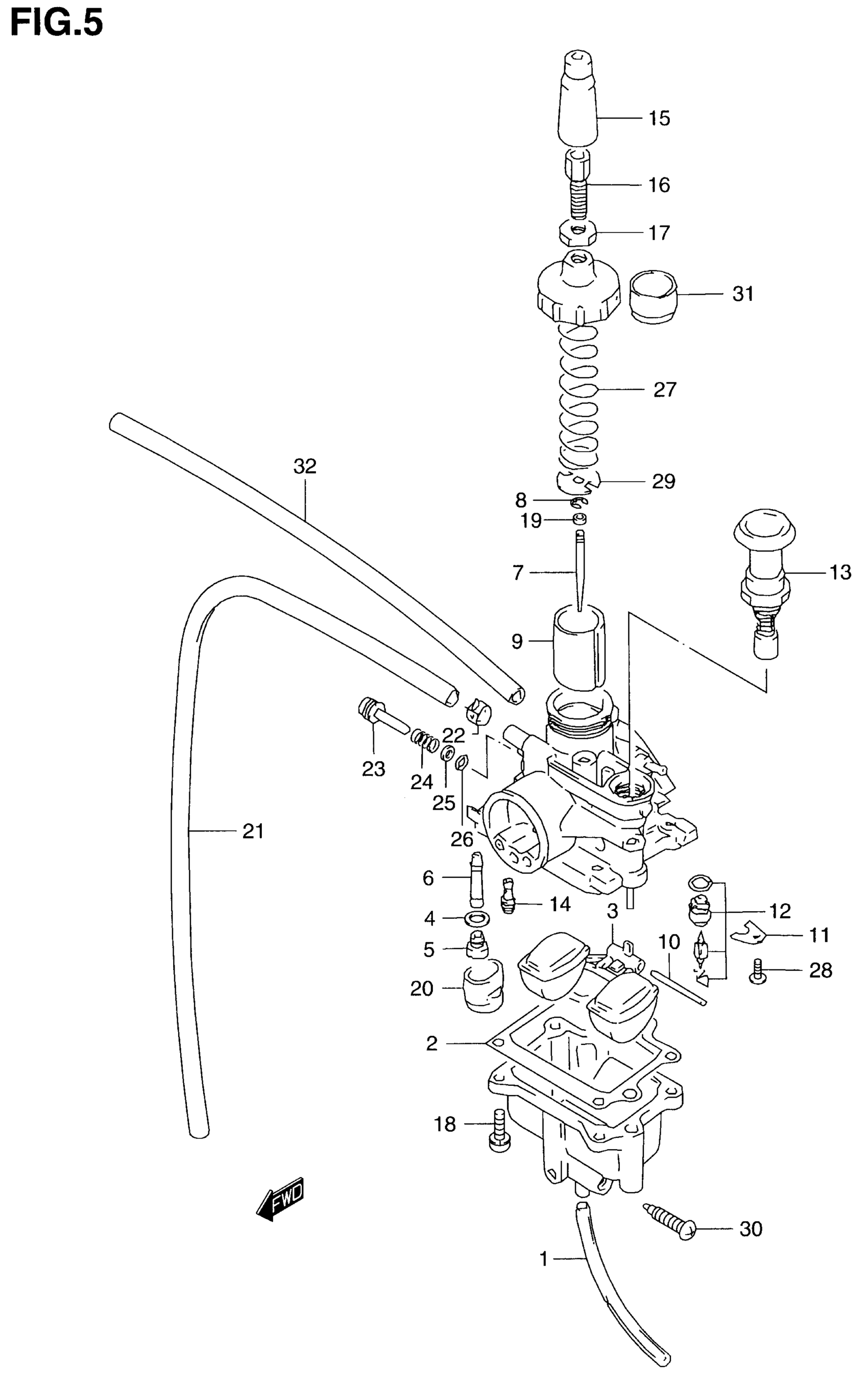

Suzuki LT80 (2001) CARBURETOR Diagram

#

Description
Price

CARBURETOR ASSY | Includes Item(s) 1 - 31

13200-40B10

$237.74

1

HOSE | L:600?70 This part replaces 09351-30503-600.

09351-30001-600

$3.57

2

GASKET

13258-02100

$4.93

3

FLOAT This part replaces 13250-16A00.

13250-30D50

$29.39

4

GASKET

13386-04700

$2.90

5

JET, MAIN (92.5)

09491-92004

$9.69

6

JET, NEEDLE (E-0)

09494-00553

$32.30

7

NEEDLE, JET (3J17-2)

13383-46B00

$18.43

8

E RING

13394-40D00

$5.43

9

VALVE, PISTON (CA:2.5)

13551-40B00

Unavailable

10

PIN, FLOAT

13254-20010

$4.28

11

PLATE

13373-46710

$6.17

12

VALVE ASSY, NEEDLE

13370-03A20

$50.37

13

PLUNGER ASSY

13411-40B00

$34.27

14

JET, PILOT (20)

09492-20008

$10.97

15

CAP

13681-33010

$9.32

16

ADJUSTER, CABLE

13577-22600

$6.00

17

NUT

13661-16600

$4.64

18

SCREW

13601-04148

$2.81

19

GASKET

13382-47010

$3.56

20

CAP

13697-40B00

$7.46

21

HOSE (3.5X6.5X600) | L:600?500

09351-35653-600

$4.64

22

CLIP

13698-40B00

$15.42

23

ADJUSTER

13483-16A01

$16.25

24

SPRING

13268-35010

$4.48

25

WASHER

13291-35010

$3.56

26

O RING

13295-33010

$4.48

27

SPRING

13573-98500

$5.25

28

SCREW This part replaces 02112-03063.

02112-0306B

$1.59

29

PLATE

13447-30A00

$2.37

30

SCREW, DRAIN | ?13247-13A00

13247-02340

$4.99

31

RING

13331-40B00

$32.92

32

HOSE(4.5X8.5X60 | L:600?240 MODEL T This part replaces 09354-45853-600.

09355-45001-600

$9.48

32

HOSE(4.5X8.5X60 | L:600?240 MODEL V/W/X/Y/K1 This part replaces 09355-45855-600.

09355-45001-600

$9.48
