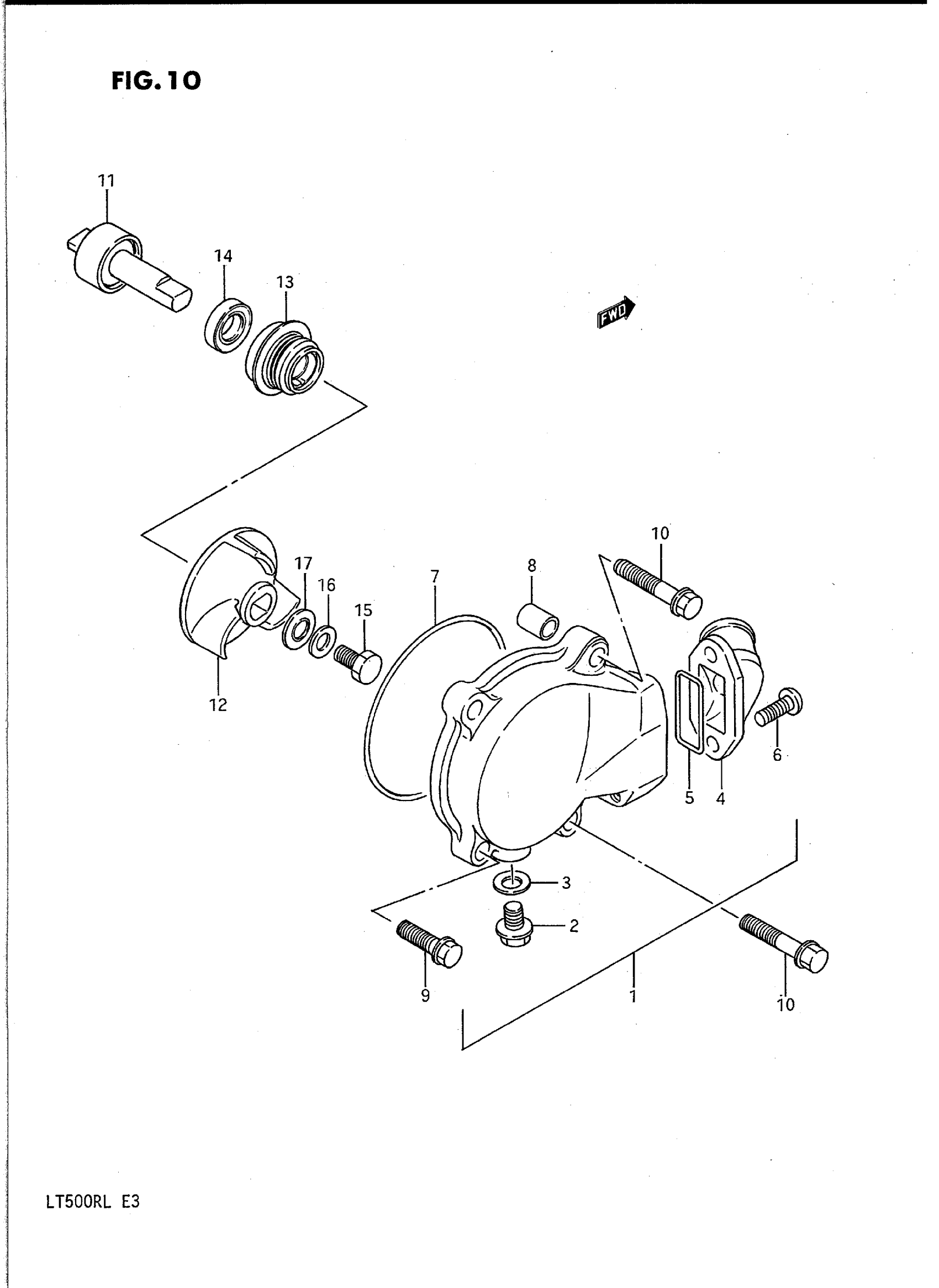

Suzuki LT500RL (1990) WATER PUMP Diagram

#

Description
Price

1

CASE, WATER PUMP | Includes Item(s) 2 - 6

17410-43B00

Unavailable

2

BOLT, DRAIN

17415-14300

$2.99

3

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.65

4

CONNECTOR, WATER PUMP

17412-43B00

Unavailable

5

O RING, WATER PUMP CONNECTOR

17414-14300

$2.99

6

SCREW This part replaces 02112-06164.

02112-0616A

$1.49

7

GASKET, WATER PUMP CASE

17418-43B00

Unavailable

8

PIN

04211-09129

$1.65

9

SCREW

01547-06207

$2.01

10

SCREW

01547-06307

$2.03

11

SHAFT, WATER PUMP

17510-01C00

$123.30

12

IMPELLER, WATER PUMP

17491-43B00

Unavailable

13

.SEAL,MECHANICAL This part replaces 17470-46A00.

17470-02F11

$29.22

14

OIL SEAL (10X20X3.8)

09282-10013

$6.11

15

BOLT

09100-06137

$2.41

16

LOCK WASHER

09164-06006

$2.61

17

WASHER, SEAL

09168-06025

$2.92
