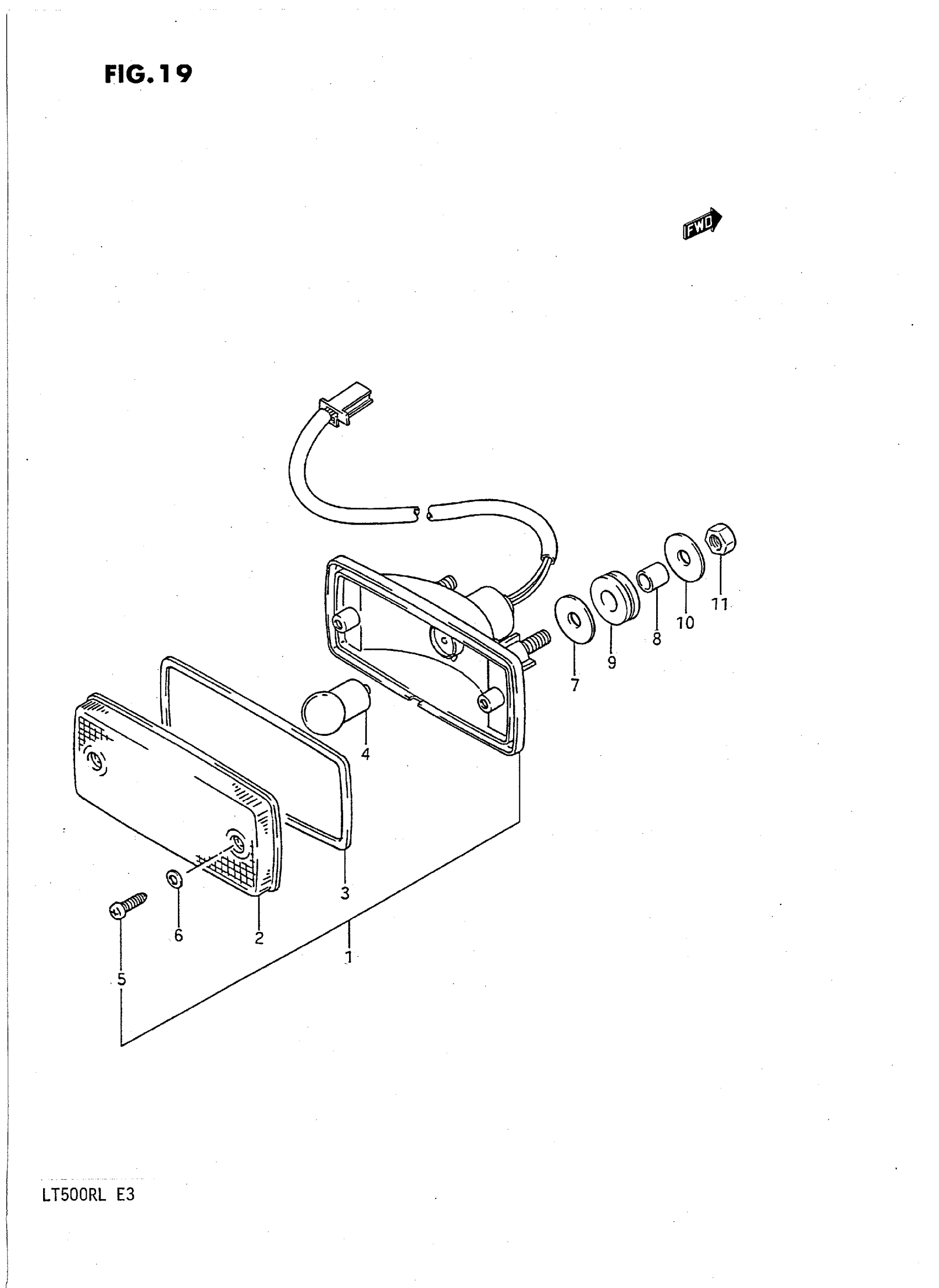

Suzuki LT500RL (1990) TAIL LAMP Diagram

#

Description
Price

1

LAMP ASSY, TAIL | MODEL H/J/K This part replaces 35710-18A32.

35710-41B02

Unavailable

1

LAMP ASSY, TAIL | MODEL L; Includes Item(s) 2 - 6 This part replaces 35710-18A33.

35710-41B02

Unavailable

2

LENS | MODEL H/J/K This part replaces 35712-18A31.

35712-18A32

$45.31

2

LENS | MODEL L

35712-18A32

$45.31

3

GASKET

35713-18A30

$9.67

4

BULB (12V,5W) | MODEL H/J/K

09471-12058

$2.33

4

BULB (12V5W) | MODEL L This part replaces 09471-12139.

09471-12058

$2.33

5

SCREW

03212-04169

$1.49

6

GASKET

35627-43010

$2.28

7

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

8

SPACER

35766-26470

$2.37

9

CUSHION

35765-35300

$3.71

10

WASHER (6.5X20X1.2) This part replaces 09160-06060.

09160-06077

$1.91

11

NUT This part replaces 08310-12066.

08310-0006A

$1.84
