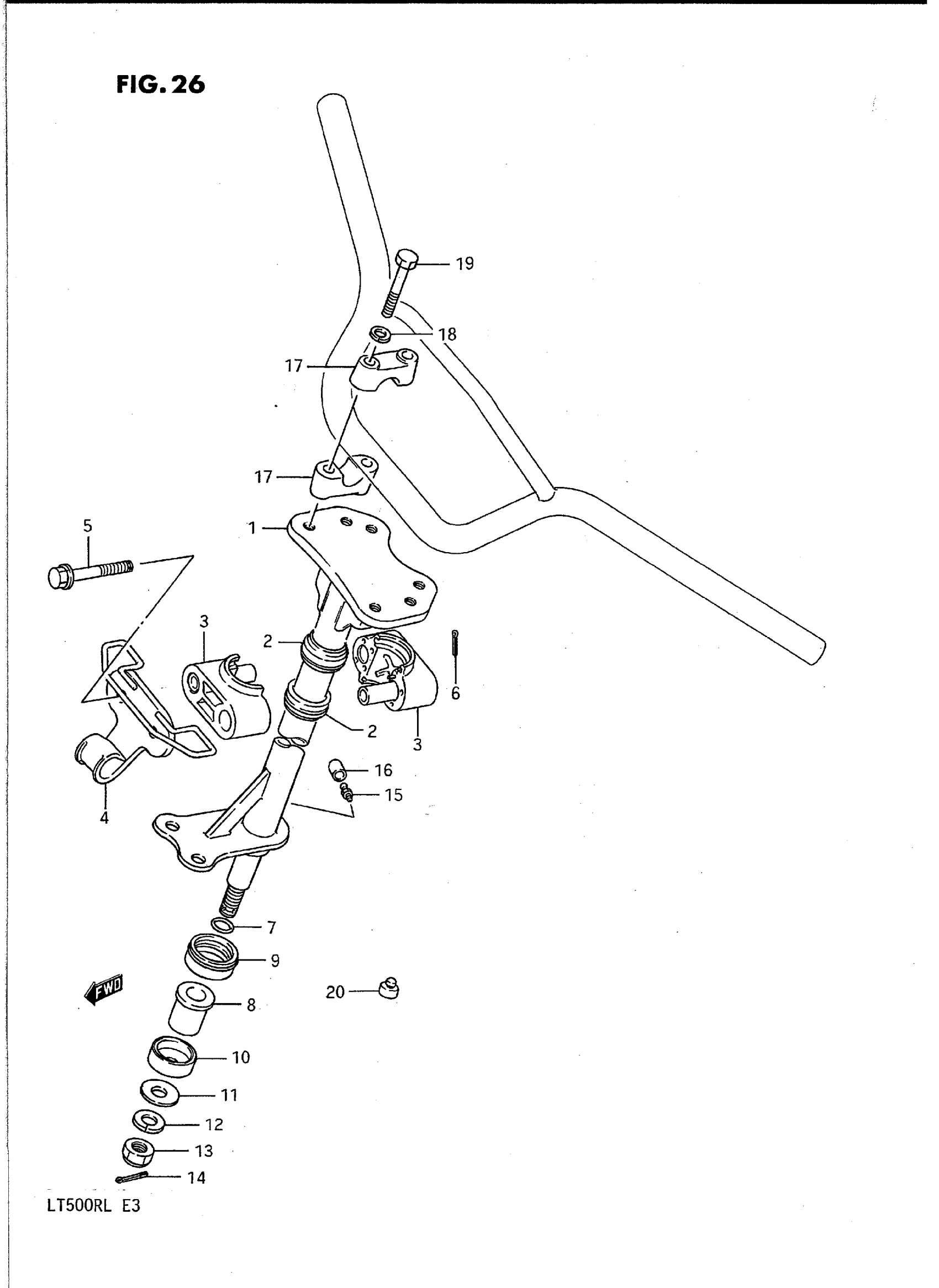

Suzuki LT500RL (1990) STEERING SHAFT Diagram

#

Description
Price

1

SHAFT, STEERING | MODEL H

51650-43B00

Unavailable

1

SHAFT, STEERING | MODEL J/K/L

51650-43B10

Unavailable

2

DUST SEAL, STEERING

51678-24500

$6.64

3

HOLDER,STEERING SHAFT

51670-24500

$23.07

4

REINF, STEERING HOLDER

51680-43B00

Unavailable

5

BOLT

09103-08150

Unavailable

6

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

7

O RING

09280-17003

$1.65

8

BUSH, STEERING SHAFT LOWER (17X26X36.9) | MODEL H/J This part replaces 51661-19B00.

51661-09F00

$30.05

8

BUSH, STEERING SHAFT LOWER (17X26X36.9) | MODEL K/L This part replaces 51661-19B10.

51661-09F00

$30.05

9

SEAL,DUST This part replaces 51662-19A01.

51662-05G01

$6.42

10

SEAL,DUST This part replaces 51663-24500.

51663-05G01

$7.13

11

WASHER (12.5X32X4.5) This part replaces 09160-12043.

09160-12094

$3.72

12

WASHER,LOCK This part replaces 08321-21125.

08321-0112A

$2.10

13

NUT This part replaces 08319-21125.

08319-2112B

$5.18

14

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

15

NIPPLE,GREASE | MODEL H This part replaces 08351-21008.

08351-2100A

$4.68

16

CAP, GREASE NIPPLE | MODEL H

61442-33310

$3.37

17

CLAMP, HANDLEBAR (BLACK)

56211-27200-291

$17.90

18

LOCK WASHER | MODEL H/J This part replaces 08321-21084.

08321-0108A

$1.84

19

BOLT | MODEL H/J This part replaces 01107-08555.

01500-0855B

$3.49

19

BOLT | MODEL K/L This part replaces 01137-08555.

01570-0855B

$4.32

20

CUSHION, STEERING SHAFT | MODEL J/K/L

09321-10017

$6.38
