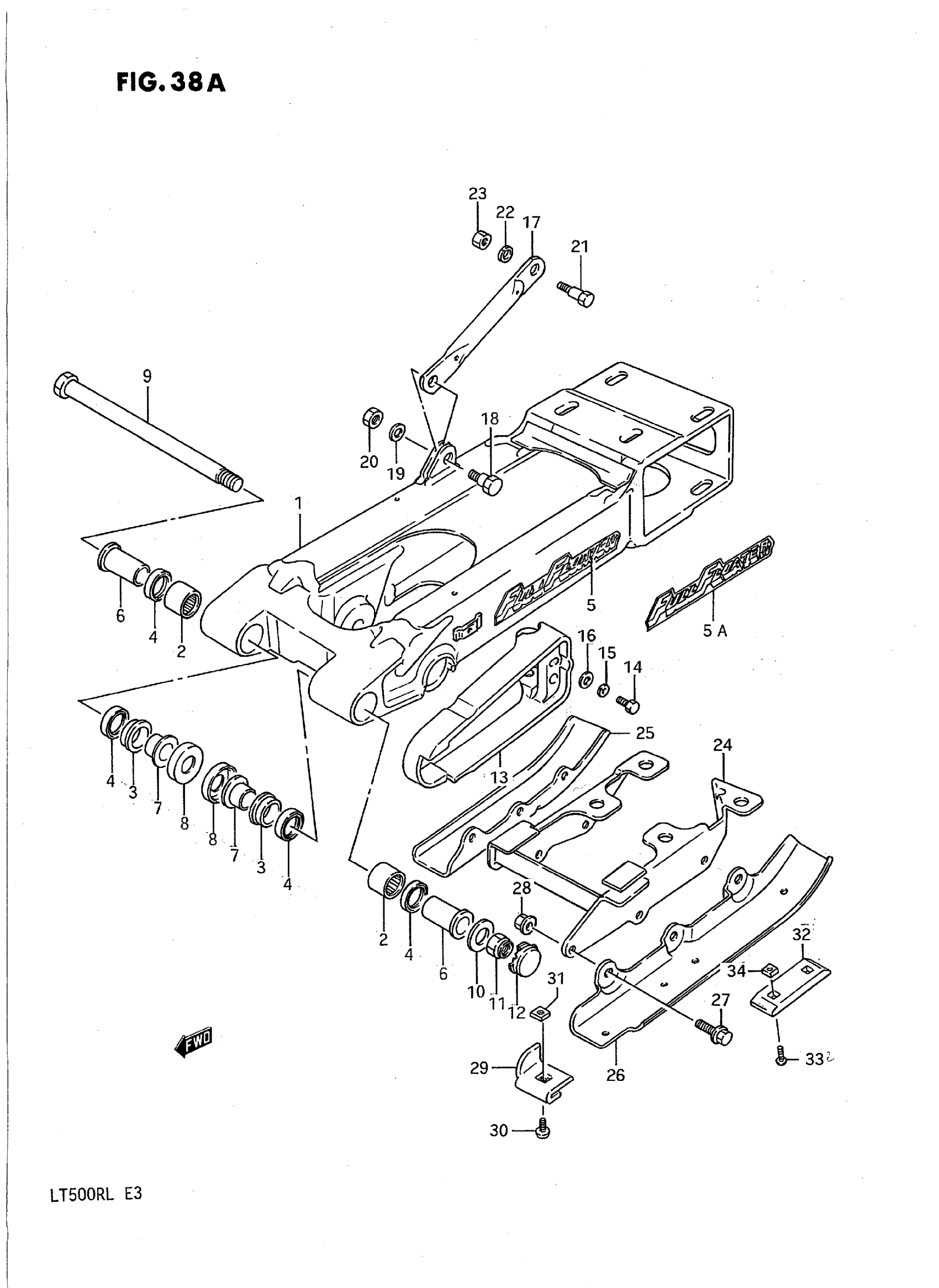

Suzuki LT500RL (1990) REAR SWINGING ARM (MODEL J/K/L) Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | Includes Item(s) 2 - 4

61000-43B01

Unavailable

2

BEARING

09263-20041

$26.47

3

BUSH This part replaces 61261-40402.

61261-27C00

Unavailable

4

DUST SEAL, INNER This part replaces 09285-20005.

09283-20031

$5.24

5

EMBLEM | MODEL J

68381-34A10-97J

Unavailable

5A

EMBLEM | MODEL K/L

68381-01C00-2SG

Unavailable

6

SPACER

61251-19A00

Unavailable

7

SPACER, INNER

61252-14100

Unavailable

8

SEAL, DUST This part replaces 61262-40400.

61262-40401

$5.93

9

SHAFT

61211-19A00

Unavailable

10

WASHER

09160-14009

$2.82

11

NUT This part replaces 09159-14013.

09159-14019

$11.61

12

CAP (BLUE)

61222-13A00-19F

Unavailable

13

BUFFER

61273-43B01

Unavailable

14

BOLT This part replaces 01107-06127.

01500-06127

$1.97

15

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

16

WASHER

09160-06019

$1.49

17

TORQUE LINK, REAR

64311-43B00

Unavailable

18

BOLT, FRONT

09111-08061

Unavailable

19

WASHER This part replaces 08322-11088.

08322-01087

$2.13

20

NUT This part replaces 08319-21088.

08319-2108A

$2.12

21

BOLT, REAR

09100-10230

Unavailable

22

WASHER This part replaces 08322-11107.

08322-01107

$2.15

23

NUT

09159-10027

$3.10

24

STAY, GUARD

61390-43B01

Unavailable

25

GUARD, DISC PLATE This part replaces 61391-43B00.

61391-43B01

Unavailable

26

GUARD, SPROCKET

61392-43B00

Unavailable

27

BOLT, REAR LH This part replaces 01517-08207.

01550-08207

$2.69

28

NUT

08319-31087

$2.32

29

BUFFER, SPROCKET GUARD

61396-19A13

Unavailable

30

SCREW This part replaces 02142-05104.

02142-0510B

$1.78

31

NUT This part replaces 08318-11056.

08318-1105A

$1.50

32

BUFFER, SPROCKET GUARD

61397-43B01

Unavailable

33

SCREW This part replaces 02142-05104.

02142-0510B

$1.78

34

NUT This part replaces 08318-11056.

08318-1105A

$1.50
