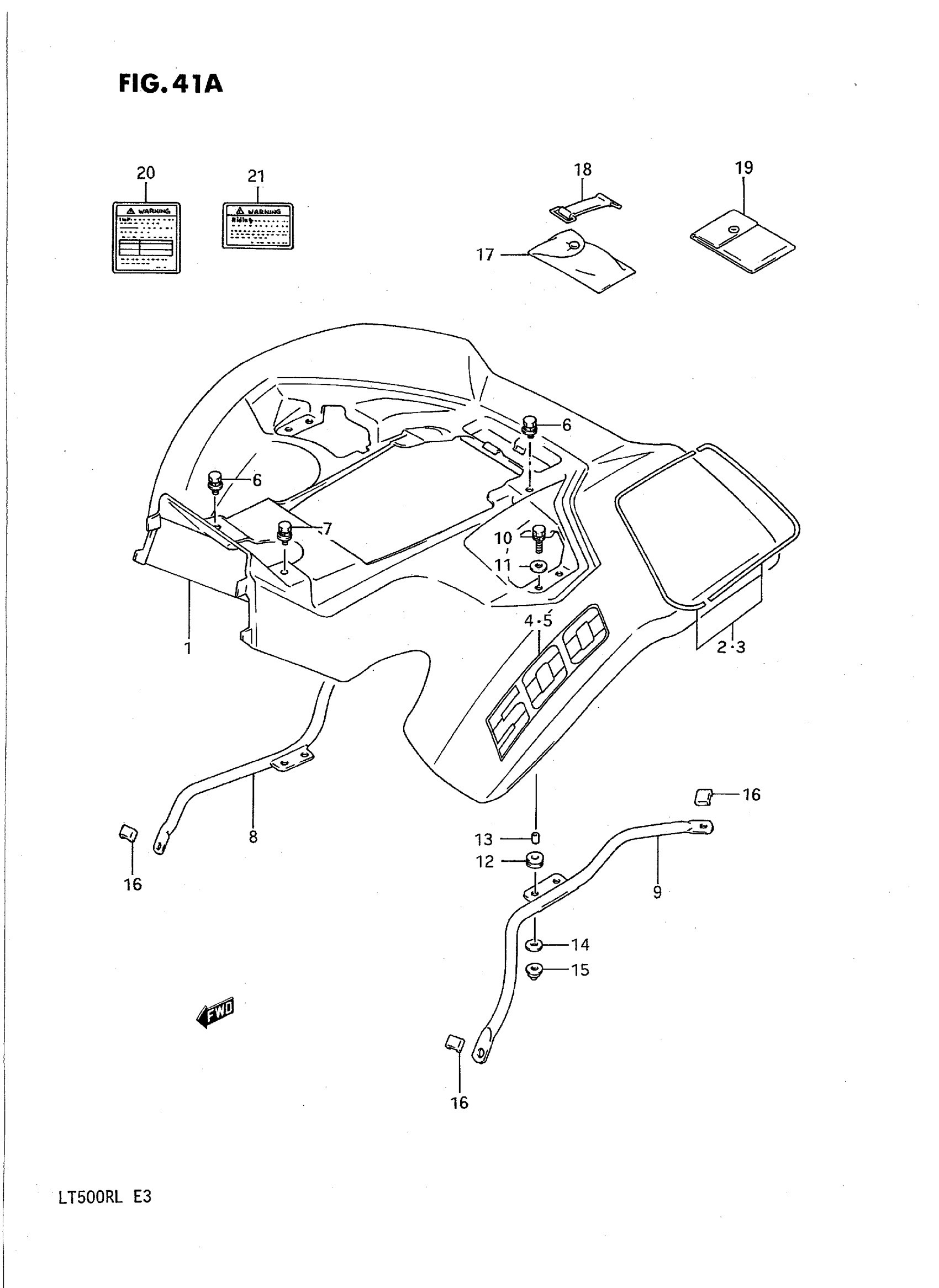

Suzuki LT500RL (1990) REAR FENDER (MODEL L) Diagram

#

Description
Price

1

FENDER, REAR (YELLOW)

63111-43B00-25Y

Unavailable

2

TAPE SET, FENDER RH

68170-43B30-33N

Unavailable

3

TAPE SET, FENDER LH

68170-43B40-33N

Unavailable

4

EMBLEM, 500 RH

68171-43B40-9SD

Unavailable

5

EMBLEM, 500 LH

68171-43B50-9SD

Unavailable

6

BOLT (6X16)

09118-06017

$2.12

7

BOLT, FRONT LH (6X20)

09118-06016

Unavailable

8

REINFORCEMENT, RH

63140-43B00

Unavailable

9

REINFORCEMENT, LH

63150-43B00

Unavailable

10

BOLT This part replaces 01134-06306.

01570-0630A

$3.03

11

WASHER This part replaces 09169-06051.

09169-06055

$2.27

12

CUSHION

09320-09016

$1.97

13

SPACER This part replaces 09180-06152.

09180-06262

$2.55

14

WASHER (6.5X18X1.6) This part replaces 09160-06057.

09160-06109

$1.49

15

NUT This part replaces 08319-31066.

08319-31067

$2.03

16

CUSHION(OD:30) This part replaces 09250-12011.

09250-12018

$3.70

17

TOOL ASSY This part replaces 09800-00346.

09800-21059

Unavailable

18

BAND

09462-00033

$3.20

19

BAG, OWNERS MAN This part replaces 94980-34301.

94980-17201

$17.25

20

LABEL, TIRE AIR PRESSURE

68332-43B30

Unavailable

21

LABEL, WARNING

68367-04620

Unavailable
