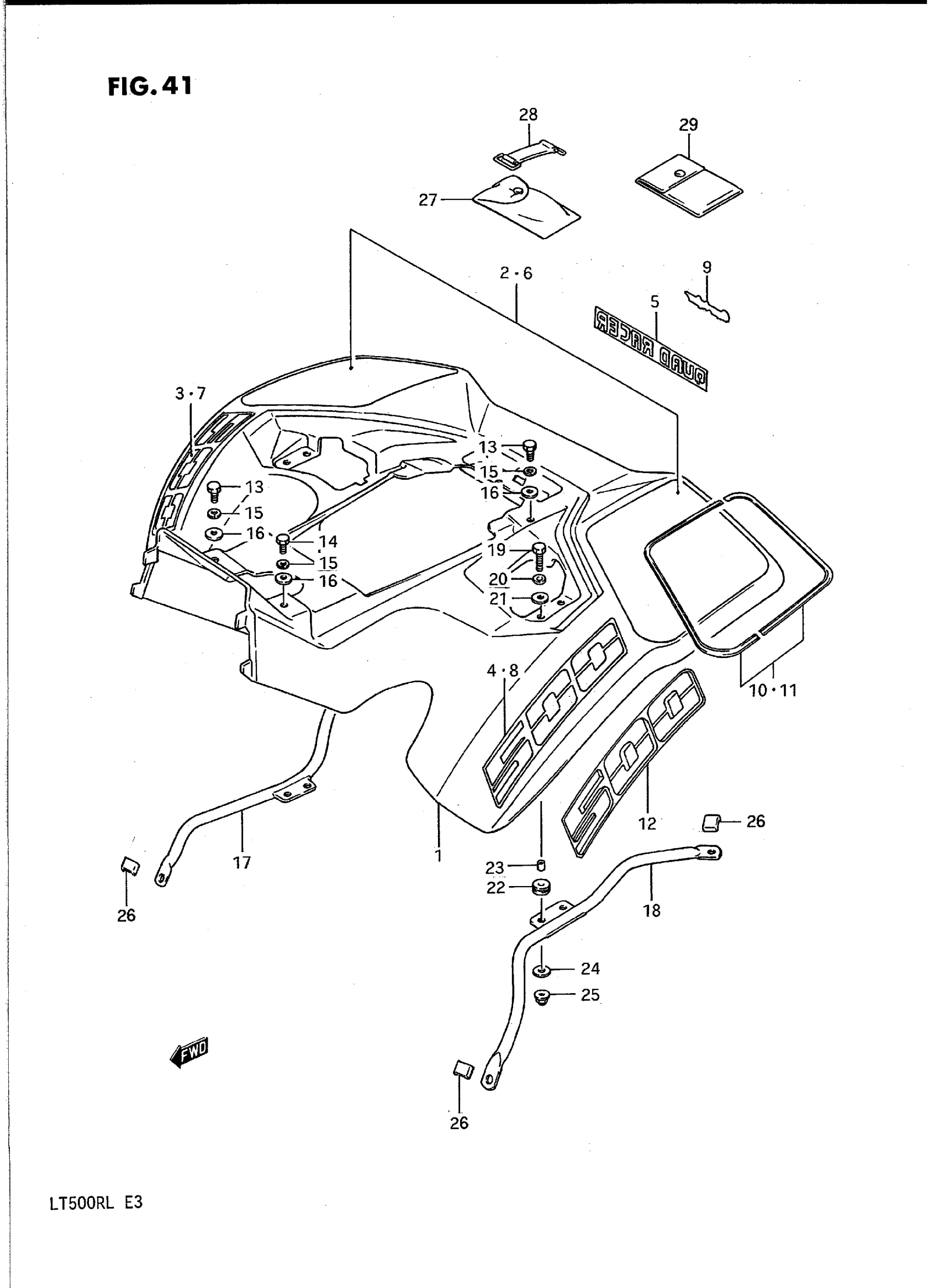

Suzuki LT500RL (1990) REAR FENDER (MODEL H/J/K) Diagram

#

Description
Price

1

FENDER, REAR (YELLOW)

63111-43B00-25Y

Unavailable

2

TAPE SET, FENDER (BLACK) | MODEL H

68170-43B00-291

Unavailable

3

EMBLEM, 500 RH | MODEL H

68177-43B00-9BY

Unavailable

4

EMBLEM, 500 LH | MODEL H

68177-43B10-9BY

Unavailable

5

EMBLEM, QUAD RACER | MODEL H

68177-43B20-9BS

Unavailable

6

TAPE SET, FENDER (BLUE) | MODEL J

68170-43B00-765

Unavailable

7

EMBLEM, 500 RH | MODEL J

68177-43B30-9SF

Unavailable

8

EMBLEM, 500 LH | MODEL J

68177-43B40-9SF

Unavailable

9

EMBLEM, QUAD RACER | MODEL J

68171-43B10-9BS

Unavailable

10

TAPE, FENDER RH | MODEL K

68170-43B10-8JR

Unavailable

11

TAPE, FENDER LH | MODEL K

68170-43B20-8JR

Unavailable

12

EMBLEM, 500 | MODEL K

68171-43B20-2SE

Unavailable

13

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$1.97

14

BOLT This part replaces 01107-06207.

01500-06207

$2.28

15

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

16

WASHER This part replaces 09160-060A6.

09160-06084

$1.78

17

REINFORCEMENT, RH

63140-43B00

Unavailable

18

REINFORCEMENT, LH

63150-43B00

Unavailable

19

BOLT This part replaces 01107-06306.

01500-0630A

$2.19

20

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

21

WASHER | MODEL H/J This part replaces 09169-06045.

09169-06055

$2.27

21

WASHER | MODEL K This part replaces 09169-06051.

09169-06055

$2.27

22

CUSHION

09320-09016

$1.97

23

SPACER This part replaces 09180-06152.

09180-06262

$2.55

24

WASHER (6.5X18X1.6) This part replaces 09160-06057.

09160-06109

$1.49

25

NUT This part replaces 08319-31066.

08319-31067

$2.03

26

CUSHION(OD:30) This part replaces 09250-12011.

09250-12018

$3.70

27

TOOL ASSY This part replaces 09800-00346.

09800-21059

Unavailable

28

BAND

09462-00033

$3.20

29

BAG, OWNERS MAN This part replaces 94980-34301.

94980-17201

$17.25
