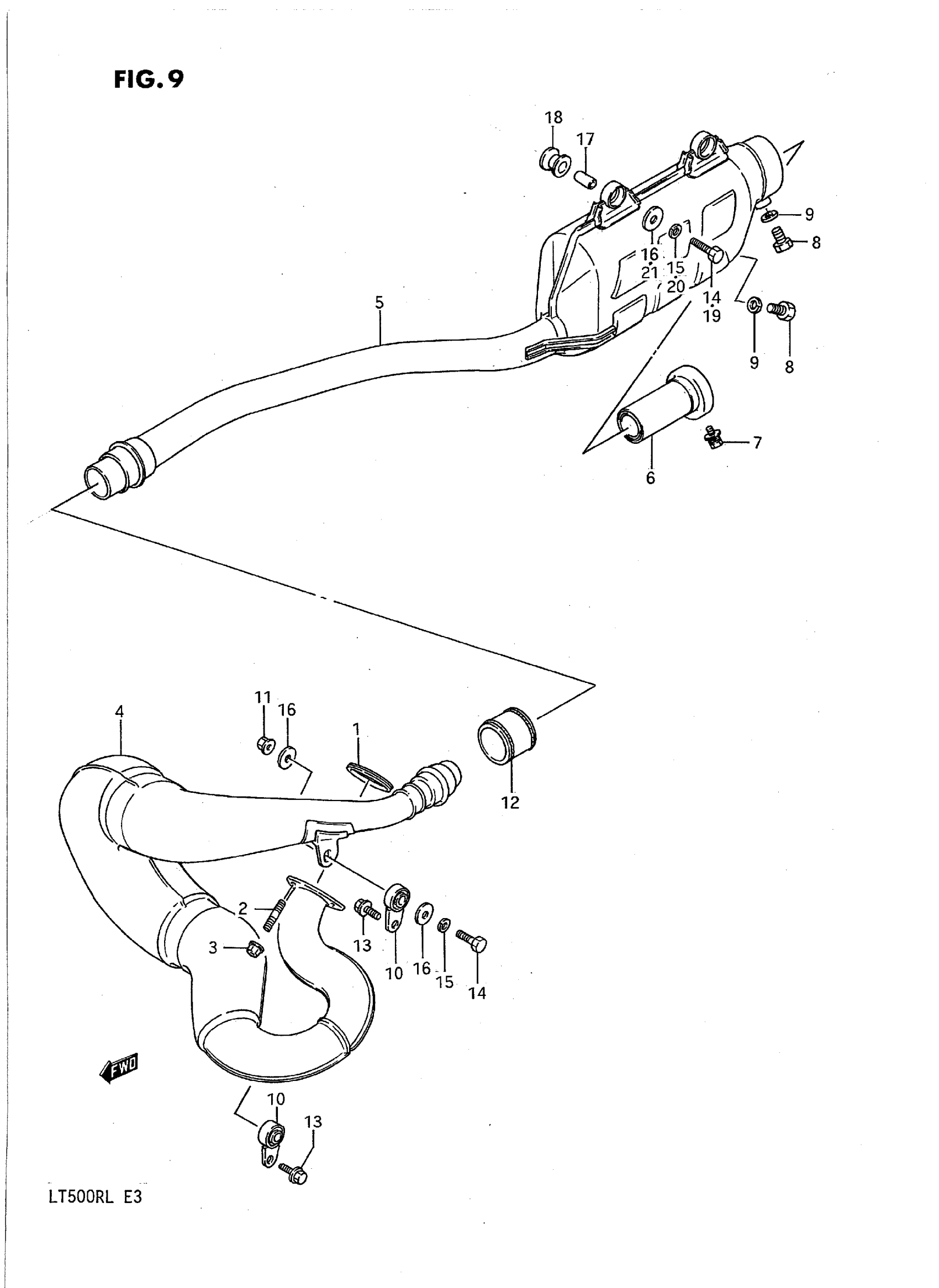

Suzuki LT500RL (1990) MUFFLER Diagram

#

Description
Price

1

GASKET,EXHAUST This part replaces 14181-43B00.

14181-43B01

Unavailable

2

BOLT,STUD This part replaces 01421-06165.

01421-0616A

$1.91

3

NUT | MODEL H This part replaces 08316-16064.

08316-1006B

$2.50

3

NUT | MODEL J/K/L This part replaces 08319-31065.

08319-3106A

$2.03

4

MUFFLER, 1ST

14310-43B02

Unavailable

5

MUFFLER, 2ND | MODEL H This part replaces 14330-43B02.

14303-43B20

Unavailable

5

MUFFLER, 2ND | MODEL J This part replaces 14303-43B10.

14303-43B20

Unavailable

5

MUFFLER, 2ND | MODEL K/L; Includes Item(s) 6 - 7

14303-43B20

Unavailable

6

TUBE, CLEAN OUT | MODEL J/K/L

14850-43B10

Unavailable

7

BOLT | MODEL J/K/L This part replaces 01177-06128.

01580-06127

$3.30

8

PLUG, DRAIN | MODEL H/J

09247-12104

$2.73

8

PLUG, DRAIN | MODEL K/L

09247-12103

$2.84

9

GASKET | MODEL H/JMODEL K/L

09168-12002

$1.59

10

DAMPER, MUFFLER SUPPORT

14770-43B00

Unavailable

11

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

12

CONNECTOR, MUFFLER | MODEL H

14771-43B00

Unavailable

12

CONNECTOR, MUFFLER | MODEL J/K/L This part replaces 14771-43B10.

14771-43B00

Unavailable

13

BOLT (8X20) This part replaces 09103-08055.

09103-08505

$3.58

14

BOLT | MODEL H/JMODEL K/L This part replaces 01107-08358.

01500-0835B

$3.04

15

.LOCK WASHER | MODEL H/JMODEL K/L This part replaces 08321-21088.

08321-01087

$2.13

16

WASHER, EXHAUST SUPPORT | MODEL H/JMODEL K/L This part replaces 09160-08002.

09160-08135

$2.35

17

SPACER,8.5X12X1 This part replaces 09180-08133.

09180-08204

Unavailable

18

CUSHION

09320-12043

$7.98

19

BOLT | MODEL K/L This part replaces 01107-08355.

01500-0835B

$3.04

20

LOCK WASHER | MODEL K/L This part replaces 08321-21084.

08321-0108A

$1.84

21

WASHER, EXHAUST SUPPORT | MODEL K/L This part replaces 09160-08057.

09160-08135

$2.35
