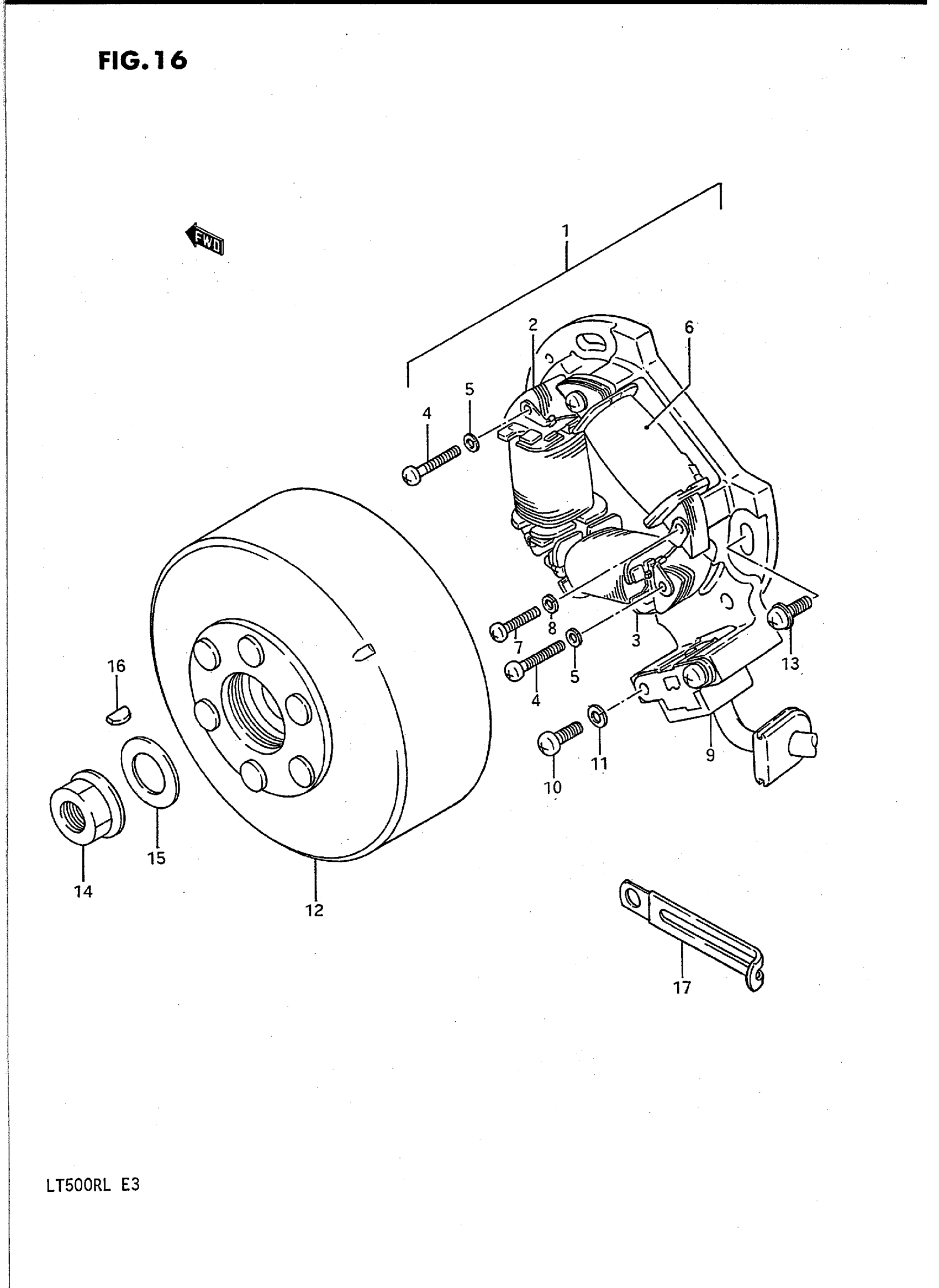

Suzuki LT500RL (1990) MAGNETO Diagram

#

Description
Price

1

STATOR ASSY | Includes Item(s) 2 - 11

32101-43B00

Unavailable

2

COIL, LIGHTING (A)

32120-19A00

Unavailable

3

COIL, LIGHTING (B)

32130-19A00

Unavailable

4

SCREW This part replaces 02112-04258.

02112-0425B

$2.34

5

LOCK WASHER This part replaces 08321-21047.

08321-0104A

$1.84

6

COIL, PRIMARY

32140-19A00

Unavailable

7

SCREW This part replaces 02112-04208.

02112-0420A

$1.49

8

LOCK WASHER This part replaces 08321-21047.

08321-0104A

$1.84

9

COIL,PICK UP This part replaces 32150-19A10.

32150-09D10

$182.60

10

SCREW This part replaces 02112-05128.

02112-05127

$1.97

11

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.84

12

ROTOR

32102-43B01

Unavailable

13

SCREW This part replaces 02142-05128.

02142-05127

$1.97

14

NUT This part replaces 08316-16128.

08316-10127

$2.50

15

WASHER This part replaces 08322-11128.

08322-01127

$1.84

16

KEY

08341-31039

$1.89

17

CLAMP This part replaces 09404-06403.

09404-06039

$1.74
