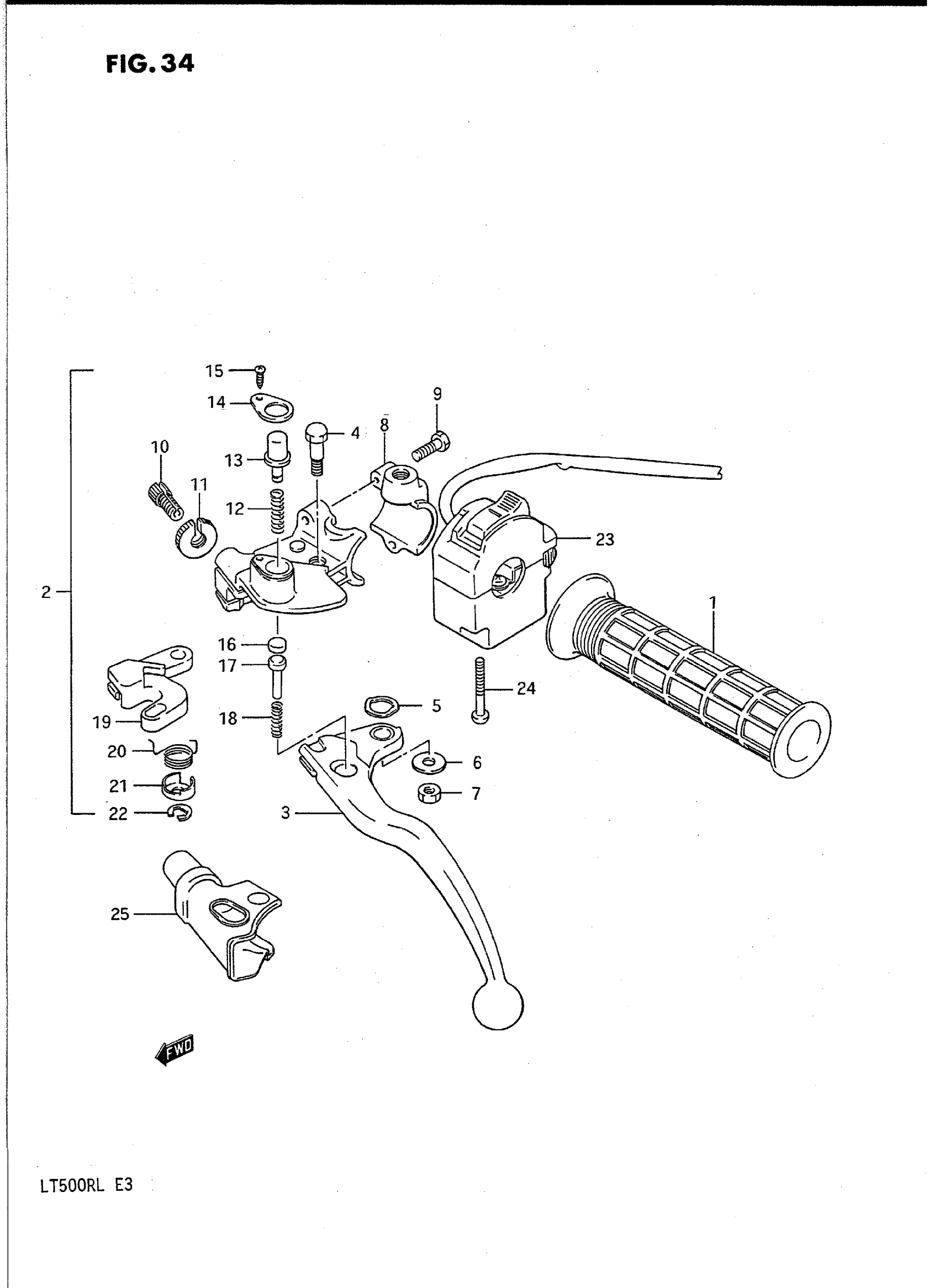

Suzuki LT500RL (1990) LEFT HANDLE SWITCH Diagram

#

Description
Price

1

GRIP This part replaces 57211-19A03-291.

57211-19A04-291

$11.75

2

LEVER ASSY, CLUTCH & PARKING | Includes Item(s) 3 - 22

57800-19A01

Unavailable

3

LEVER

57620-19A00

Unavailable

4

BOLT This part replaces 57431-33450.

57531-14A00

$7.46

5

WASHER

08221-08144

$2.23

6

WASHER (6.5X15X1.6) This part replaces 57912-19A00.

09160-06128

$1.99

7

.NUT This part replaces 08319-21065.

08319-2106B

$2.32

8

BRACKET

57512-44500

Unavailable

9

BOLT, GEAR SHIFT LINK This part replaces 01107-06205.

01500-0620A

$1.78

10

.ADJUSTER, BRAKE CABLE This part replaces 57441-13A00.

57441-26010

$4.48

11

NUT This part replaces 57442-44400.

57442-11010

$2.79

12

SPRING

57817-19A00

Unavailable

13

BUTTON

57811-19A00

Unavailable

14

COVER

57815-19A00

Unavailable

15

SCREW

57619-19A00

$3.78

16

PIECE

57814-19A00

Unavailable

17

PIN

57813-19A00

$5.95

18

SPRING

57818-19A00

$3.65

19

LEVER, PARKING

57812-19A00

Unavailable

20

SPRING, RETURN

57911-19A00

Unavailable

21

COVER, SPRING

57819-19A00

Unavailable

22

E RING This part replaces 08332-11045.

08332-1104A

$1.49

23

SWITCH ASSY, LH | Includes Item(s) 24

37400-43B00

Unavailable

24

SCREW

02112-05357

$1.49

25

COVER

57541-19A00

Unavailable
