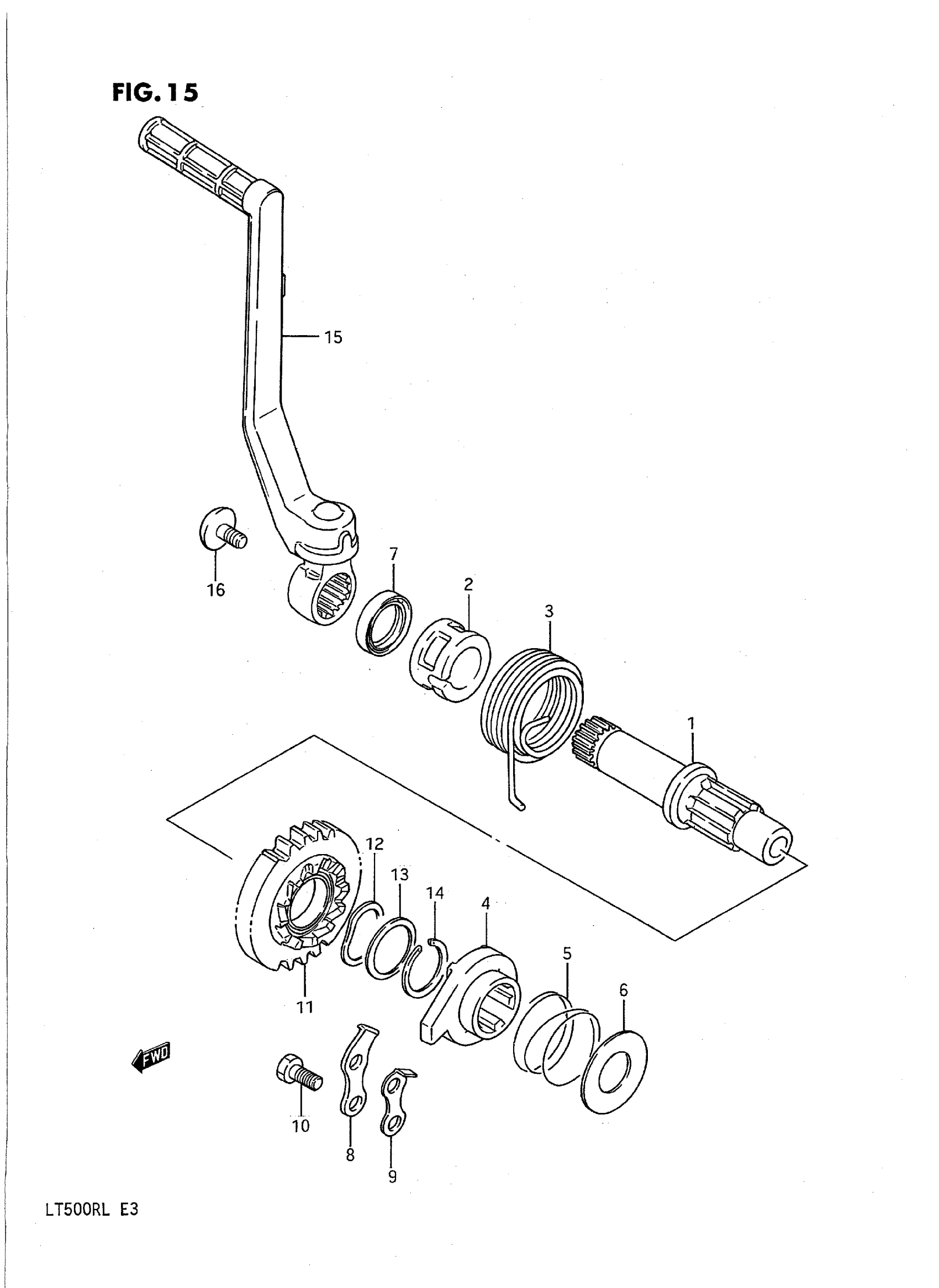

Suzuki LT500RL (1990) KICK STARTER Diagram

#

Description
Price

1

SHAFT, KICK STARTER This part replaces 26211-13A00.

26211-08D00

Unavailable

2

GUIDE, KICK STARTER

26221-13A01

Unavailable

3

SPRING

09448-48009

Unavailable

4

STARTER, KICK

26231-22A10

$63.88

5

SPRING

09440-32002

$2.27

6

PLATE

08211-17342

$2.72

7

OIL SEAL

09283-20031

$5.24

8

GUIDE, KICK STARTER

26232-43B00

Unavailable

9

STOPPER, KICK STARTER

26233-32400

$5.40

10

BOLT

09100-08166

Unavailable

11

GEAR, DRIVE (NT:30)

26240-43B00

Unavailable

12

WAVE WASHER

09164-22003

Unavailable

13

NO DESCRIPTION AVAILABLE This part replaces 08221-22286.

09181-22134

Unavailable

14

CIRCLIP

09380-22006

$3.10

15

LEVER, KICK STARTER This part replaces 26300-43B00.

26300-01C01

Unavailable

16

BOLT (8X14) This part replaces 09106-08050.

09106-08102

$4.64
