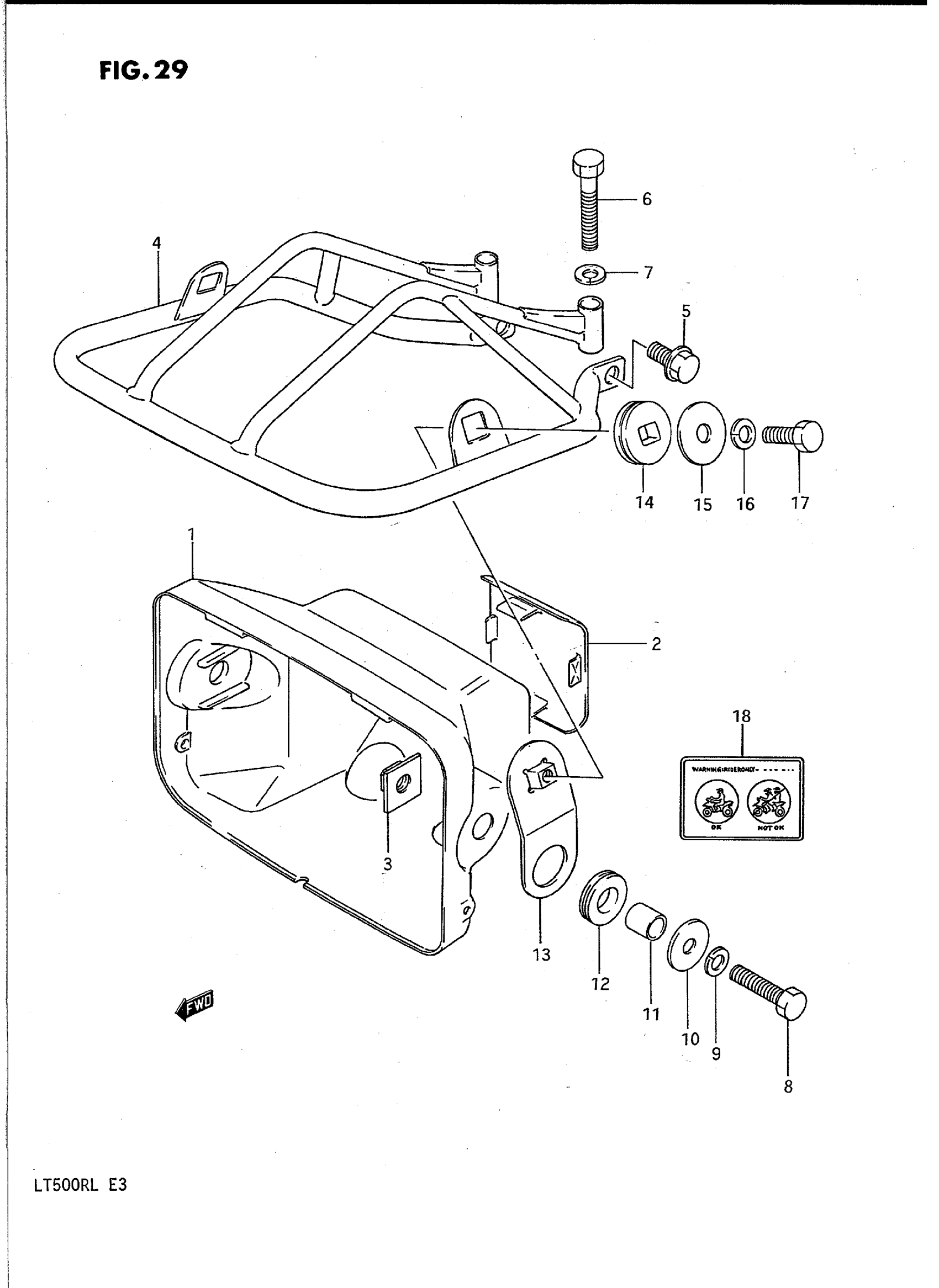

Suzuki LT500RL (1990) HEADLAMP HOUSING Diagram

#

Description
Price

1

HOUSING, HEADLAMP

51811-39300

$73.80

2

COVER, HEADLAMP

51843-19A00

Unavailable

3

PLATE, HEADLAMP

51860-24400

Unavailable

4

BRACKET, HEADLAMP

51530-19A01

Unavailable

5

BOLT (8X12) This part replaces 01517-08125.

01550-0812A

$2.32

6

BOLT This part replaces 01107-08455.

01500-08453

$2.50

7

LOCK WASHER This part replaces 08321-31084.

08321-0108A

$1.84

8

BOLT This part replaces 01107-08255.

01500-0825A

$2.19

9

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

10

WASHER 6.5x26x1.2 This part replaces 09160-08064.

09160-08032

$2.30

11

SPACER (8.5X12X11) This part replaces 09180-08126.

09180-08189

$2.58

12

FENDER SIDE CUS This part replaces 09320-12011.

09320-12090

$1.91

13

BRACKET, HEADLAMP

48550-19A00

Unavailable

14

CUSHION

09320-12034

Unavailable

15

WASHER, EXHAUST SUPPORT This part replaces 09160-08057.

09160-08135

$2.35

16

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

17

BOLT This part replaces 01107-08125.

01500-0812A

$2.28

18

LABEL,WARNING This part replaces 68367-04610.

68367-04611

Unavailable
