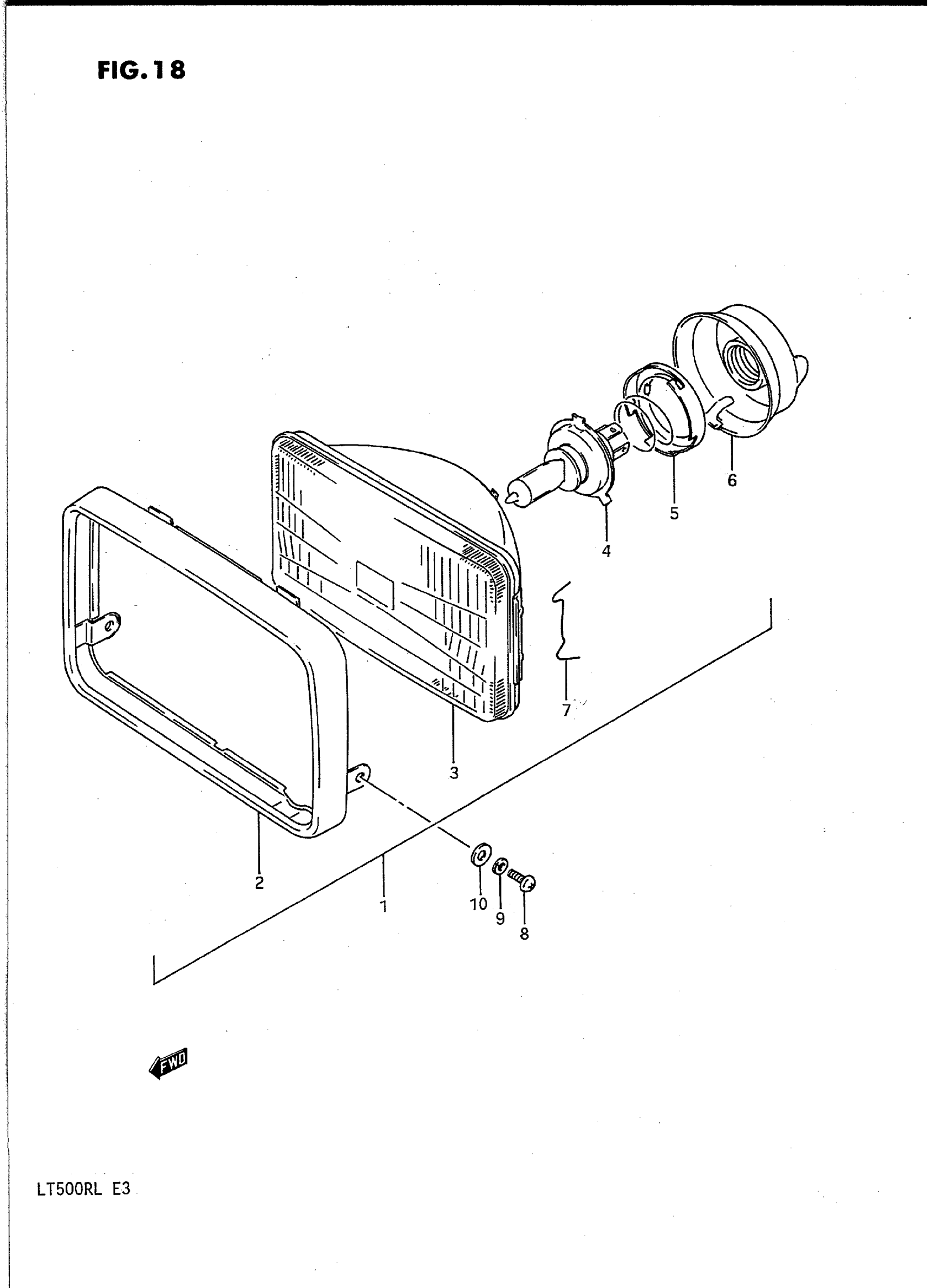

Suzuki LT500RL (1990) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | MODEL H/J

35100-19A00

Unavailable

1

HEADLAMP ASSY | MODEL K/L; Includes Item(s) 2 - 7

35100-19A50

Unavailable

2

RIM | MODEL H/J

35111-36510

$56.30

2

RIM | MODEL K/L

35111-19A50

Unavailable

3

UNIT

35121-19A00

Unavailable

4

BULB (12V,60/55W,H4)

09471-12060

$25.15

5

HOLDER, BULB

35136-19A00

Unavailable

6

.COVER SOCKET

35173-01440

$17.37

7

SPRING

35128-19A00

Unavailable

8

SCREW This part replaces 02112-05125.

02112-0512A

$1.49

9

LOCK WASHER This part replaces 08321-21055.

08321-0105A

$1.84

10

WASHER, FRONT This part replaces 08322-21055.

08322-0105A

$1.84
