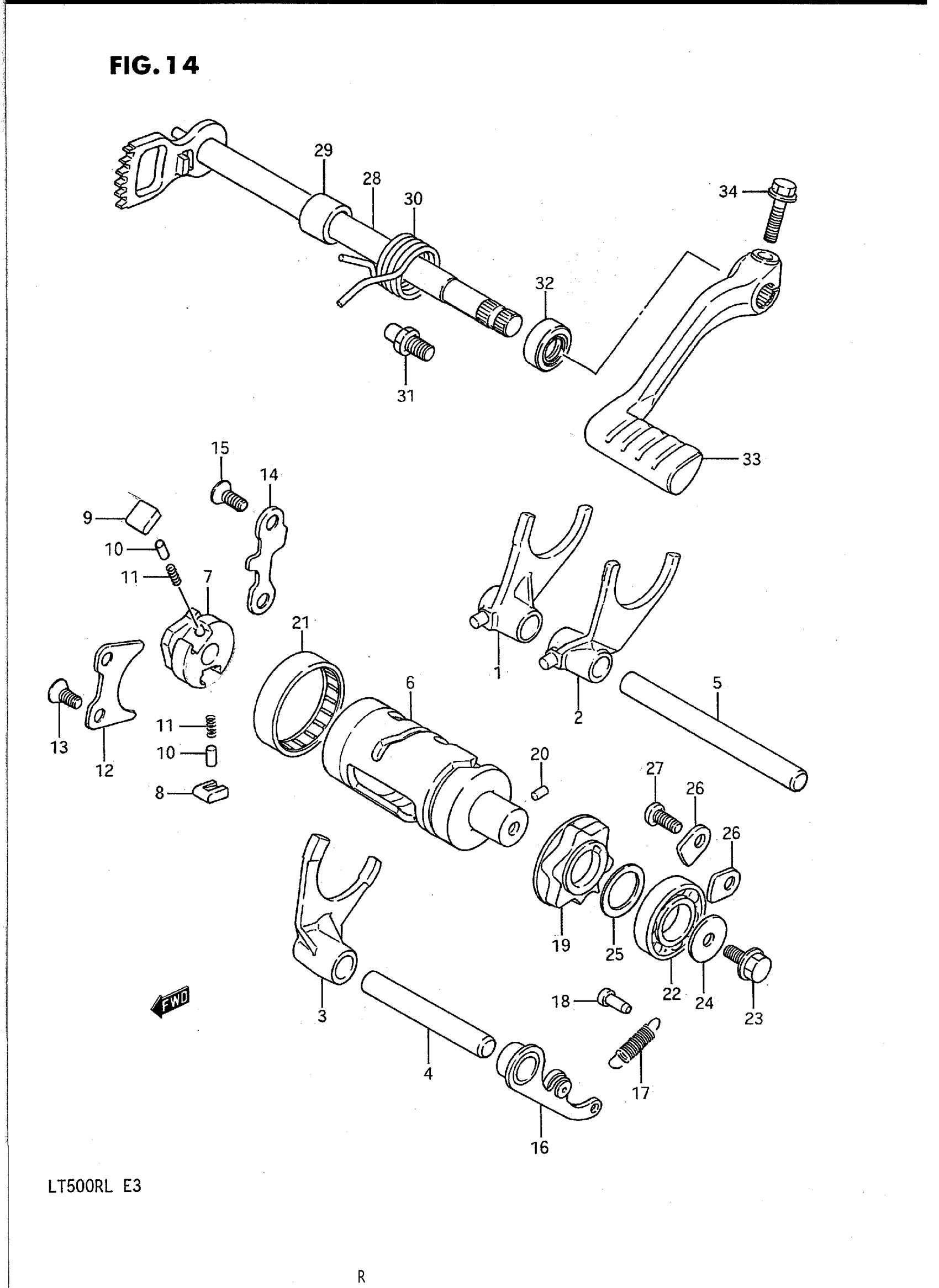

Suzuki LT500RL (1990) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, NO.1

25211-43B00

Unavailable

2

FORK, NO.2

25221-43B00

Unavailable

3

FORK, NO.3

25231-43B00

Unavailable

4

SHAFT, FORK NO.2 | L:75 This part replaces 25421-14A00.

25421-14A02

$23.07

5

SHAFT, GEAR SHIFT FORK (L:109 | L:109

25411-16701

$18.02

6

CAM, GEAR SHIFTING

25310-43B00

Unavailable

7

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-31301.

25322-31310

$26.93

8

PAWL, GEAR SHIFT NO.1

25323-34201

$7.22

9

PAWL, GEAR SHIFT NO.2

25324-34201

$7.22

10

ROLLER

09261-05003

$1.54

11

SPRING

09440-04003

$1.54

12

LIFTER,GEAR SHIFT POLE

25331-14A00

$7.64

13

SCREW This part replaces 02122-06128.

02122-06127

$1.84

14

STOPPER

25341-43B00

Unavailable

15

SCREW This part replaces 02122-06128.

02122-06127

$1.84

16

STOPPER, CAM

25350-43B00

Unavailable

17

SPRING

09443-09040

Unavailable

18

HOOK

09223-04001

$1.68

19

PLATE

25381-14310

Unavailable

20

PIN This part replaces 06211-04063.

04221-04069

$2.12

21

BEARING, RH

09263-41002

Unavailable

22

BEARING, LH

09262-17019

$19.34

23

BOLT This part replaces 01517-06128.

01550-06127

$2.30

24

WASHER

08211-06223

$2.30

25

WASHER

08211-17243

$2.83

26

RETAINER This part replaces 24741-20A10.

24741-21A00

$2.81

27

SCREW This part replaces 02112-06128.

02112-06127

$1.84

28

SHAFT, GEAR SHIFTING

25510-43B00

Unavailable

29

SPACER

09180-12083

$2.45

30

SPRING

09444-26013

$3.10

31

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.48

32

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

33

LEVER ASSY

25611-19A01

Unavailable

34

BOLT This part replaces 01517-06257.

01550-06257

$2.30
