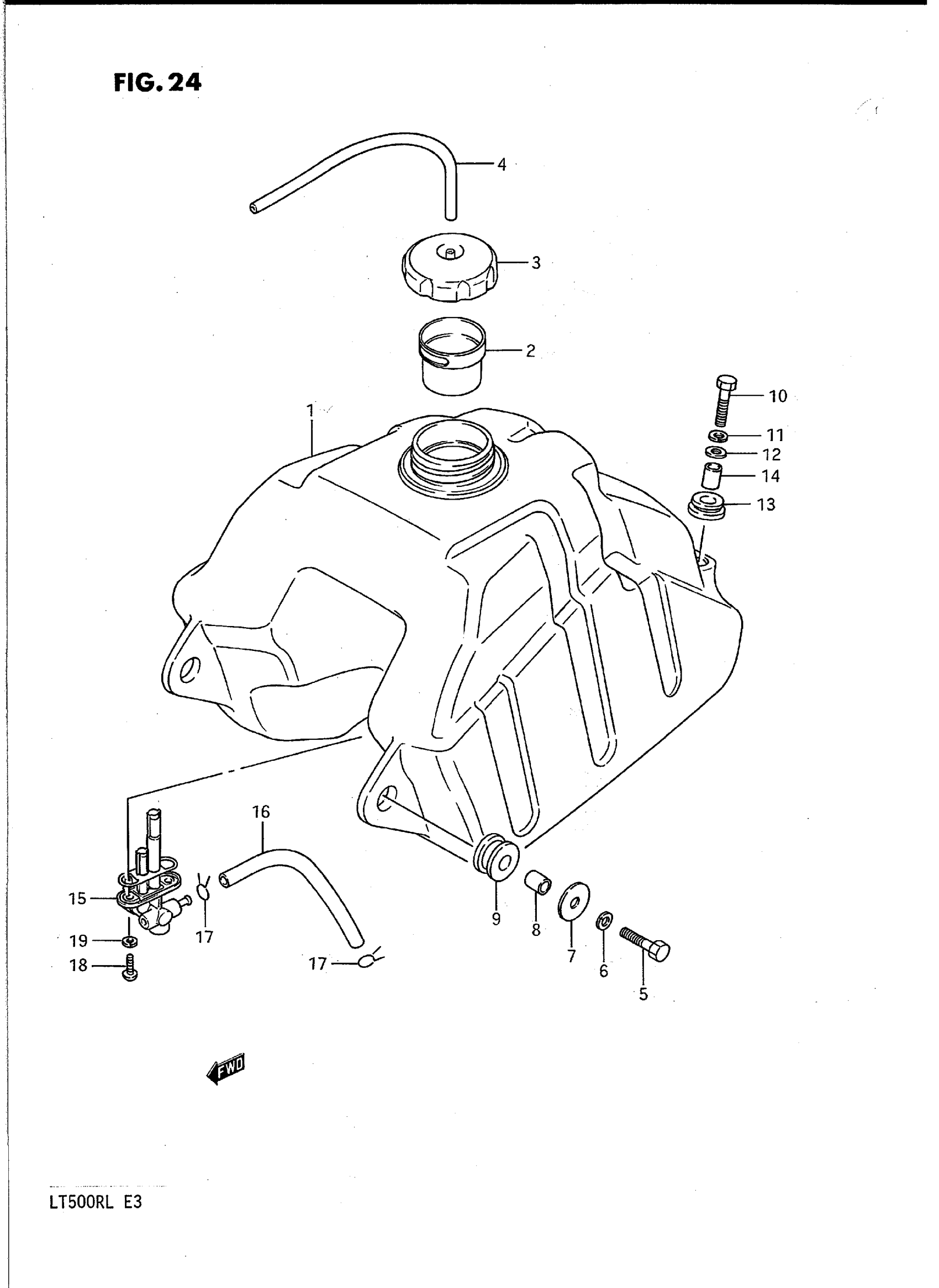

Suzuki LT500RL (1990) FUEL TANK Diagram

#

Description
Price

1

TANK, FUEL | MODEL H This part replaces 44110-43B00.

44110-43B01

Unavailable

1

TANK, FUEL | MODEL J/K/L

44110-43B01

Unavailable

2

TUBE, FILLER INLET

44199-19A00

$6.28

3

CAP, FUEL TANK

44200-19A01

$48.20

4

HOSE | MODEL H This part replaces 09343-05165.

09352-50005-00B

$13.93

4

HOSE | MODEL J This part replaces 09352-50823-950.

09352-50005-00B

$13.93

4

HOSE,5X10X600 | MODEL K/L This part replaces 09352-50823-600.

44421-13ER0

$10.06

5

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

6

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

7

WASHER, MUFFLER SUPPORT This part replaces 09160-08001.

09160-08503

$2.50

8

SPACER This part replaces 09180-08120.

09180-08209

$3.04

9

CUSHION

09320-12016

$2.11

10

BOLT This part replaces 01107-06356.

01500-0635A

$2.19

11

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

12

WASHER This part replaces 08322-21067.

08322-01067

$2.13

13

CUSHION | MODEL H

09320-20004

$2.92

14

SPACER, REAR

09180-08067

$2.41

15

COCK ASSY, FUEL | MODEL H/J This part replaces 44300-43B00.

44300-43B01

Unavailable

15

COCK ASSY, FUEL | MODEL K/L

44300-43B01

Unavailable

16

HOSE(7X11X600) | MODEL H This part replaces 09343-07111.

09352-70119-600

$10.40

16

HOSE(7X11X600) | MODEL J/K/L This part replaces 09352-70113-300.

09352-70119-600

$10.40

17

CLIP

09401-12403

$1.96

18

SCREW | MODEL H/J/K

02112-06167

$1.49

18

SCREW | MODEL L This part replaces 02112-36168.

02112-36167

$2.34

19

LOCK WASHER | MODEL H/J/K This part replaces 08321-21067.

08321-01067

$2.13
