1990 Suzuki LT500RL Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 1990 Suzuki LT500RL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

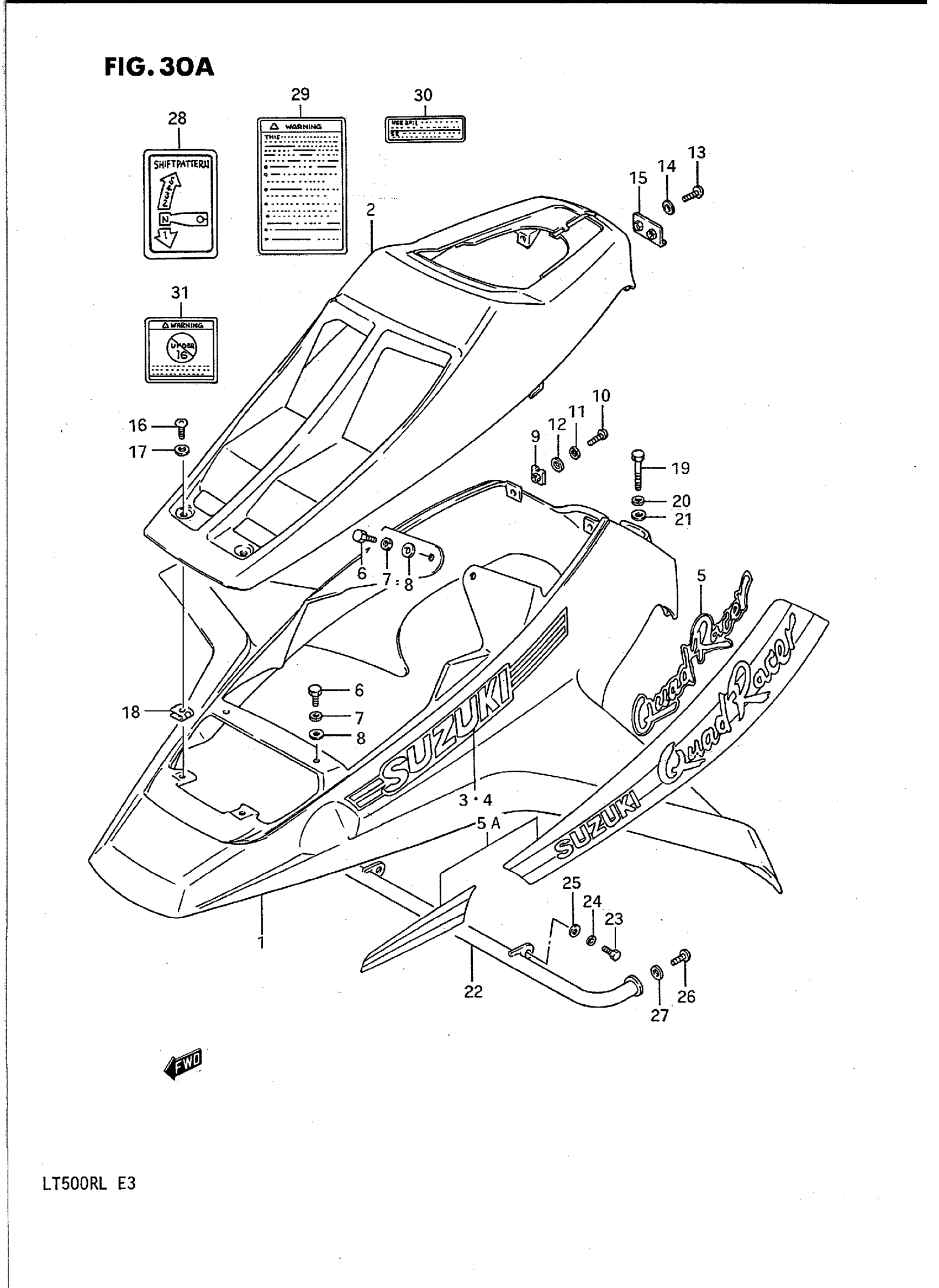

1990 Suzuki LT500RL Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT (YELLOW)

53111-43B01-25Y

1
Out of stock

2

FENDER, CENTER (BLUE)

53118-43B00-19F

1
Out of stock

3

TAPE SET, RH | MODEL K

68150-43B20-2SE

1
Out of stock

4

TAPE SET, LH | MODEL K

68150-43B30-2SE

1
Out of stock

5

EMBLEM, CENTER FENDER | MODEL K

68151-43B00-2PA

2
Out of stock

5A

TAPE SET,FR FEN | MODEL L This part replaces 68150-43B40-3RN.

68150-43B41-3RN

1
Out of stock

5A

TAPE SET, FENDER LH | MODEL L

68150-43B50-3RN

1
Out of stock

6

BOLT This part replaces 01107-06166.

01500-0616A

4
Out of stock

7

LOCK WASHER This part replaces 08321-21066.

08321-0106A

4
Out of stock

8

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

4
Out of stock

9

NUT

53141-19A00

2
Out of stock

10

SCREW This part replaces 02112-06128.

02112-06127

2
Out of stock

11

LOCK WASHER This part replaces 08321-21067.

08321-01067

2
Out of stock

12

WASHER This part replaces 09160-060A6.

09160-06084

2
Out of stock

13

SCREW This part replaces 02142-06164.

02142-0616A

2
Out of stock

14

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

2
Out of stock

15

PLATE, CENTER FENDER REAR

53130-43B00

1
Out of stock

16

SCREW This part replaces 02142-06164.

02142-0616A

2
Out of stock

17

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

2
Out of stock

18

NUT

53141-19A00

2
Out of stock

19

BOLT This part replaces 01107-06356.

01500-0635A

2
Out of stock

20

LOCK WASHER This part replaces 08321-21066.

08321-0106A

2
Out of stock

21

.WASHER This part replaces 08322-21066.

08322-0106B

2
Out of stock

22

BRACE, FRONT FENDER

53210-43B00

1
Out of stock

23

BOLT This part replaces 01107-08125.

01500-0812A

2
Out of stock

24

LOCK WASHER This part replaces 08321-21084.

08321-0108A

2
Out of stock

25

WASHER This part replaces 08322-11084.

08322-0108A

2
Out of stock

26

SCREW This part replaces 02142-06164.

02142-0616A

2
Out of stock

27

WASHER

09169-06037

2
Out of stock

28

LABEL, GEAR SHIFT

68392-22A00

1
Out of stock

29

LABEL, WARNING MAIN This part replaces 68366-25C00.

68366-20B50

1
Out of stock

30

LABEL,WARNING This part replaces 68367-41300.

68367-41301

1
Out of stock

31

LABEL, WARNING

68367-25C00

1
Out of stock
