1990 Suzuki LT500RL Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 1990 Suzuki LT500RL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

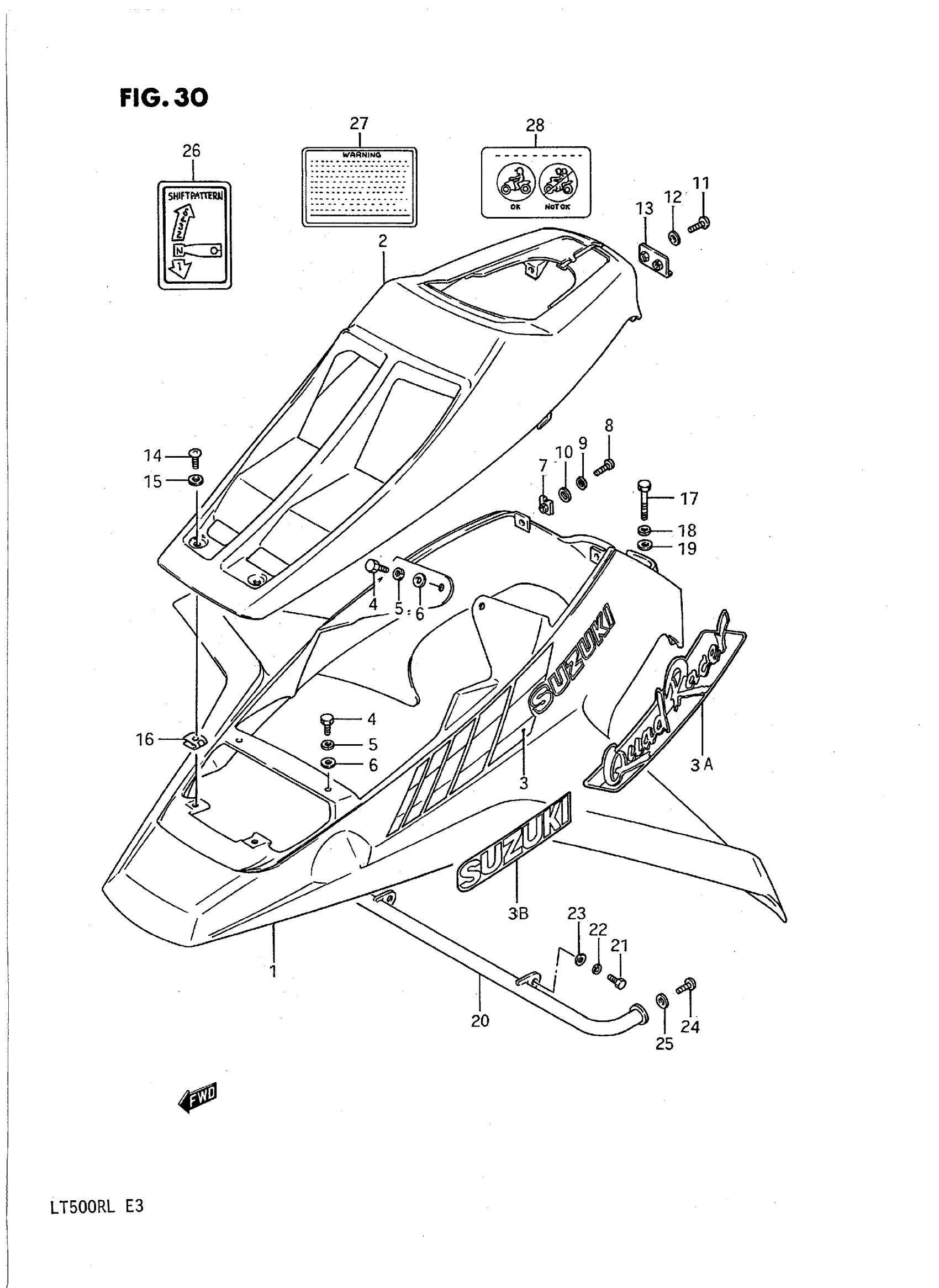

1990 Suzuki LT500RL Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT (YELLOW)

53111-43B01-25Y

1
Out of stock

2

FENDER, CENTER (BLUE)

53118-43B00-19F

1
Out of stock

3

TAPE SET | MODEL H

68150-43B00-9BR

1
Out of stock

3A

TAPE SET | MODEL J

68150-43B10-9BR

1
Out of stock

3B

EMBLEM,SUZUKI | MODEL J This part replaces 68111-01C20-9BS.

68111-01C21-9BS

2
Out of stock

4

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

4
Out of stock

5

LOCK WASHER This part replaces 08321-21067.

08321-01067

4
Out of stock

6

WASHER This part replaces 09160-06007.

09160-06084

4
Out of stock

7

NUT

53141-19A00

2
Out of stock

8

SCREW This part replaces 02112-06166.

02112-0616A

2
Out of stock

9

LOCK WASHER This part replaces 08321-21066.

08321-0106A

2
Out of stock

10

WASHER This part replaces 09160-06007.

09160-06084

2
Out of stock

11

SCREW This part replaces 02142-06164.

02142-0616A

2
Out of stock

12

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

2
Out of stock

13

PLATE, CENTER FENDER REAR

53130-43B00

1
Out of stock

14

SCREW This part replaces 02142-06164.

02142-0616A

2
Out of stock

15

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

2
Out of stock

16

NUT

53141-19A00

2
Out of stock

17

BOLT This part replaces 01107-06356.

01500-0635A

2
Out of stock

18

LOCK WASHER This part replaces 08321-21067.

08321-01067

2
Out of stock

19

WASHER This part replaces 08322-21067.

08322-01067

2
Out of stock

20

BRACE, FRONT FENDER

53210-43B00

1
Out of stock

21

BOLT This part replaces 01107-08125.

01500-0812A

2
Out of stock

22

LOCK WASHER This part replaces 08321-21084.

08321-0108A

2
Out of stock

23

WASHER This part replaces 08322-11084.

08322-0108A

2
Out of stock

24

SCREW This part replaces 02142-06164.

02142-0616A

2
Out of stock

25

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

2
Out of stock

26

LABEL, GEAR SHIFT

68392-22A00

1
Out of stock

27

LABEL, WARNING

68366-22A30-8JR

1
Out of stock

28

LABEL,WARNING This part replaces 68367-04610.

68367-04611

1
Out of stock
