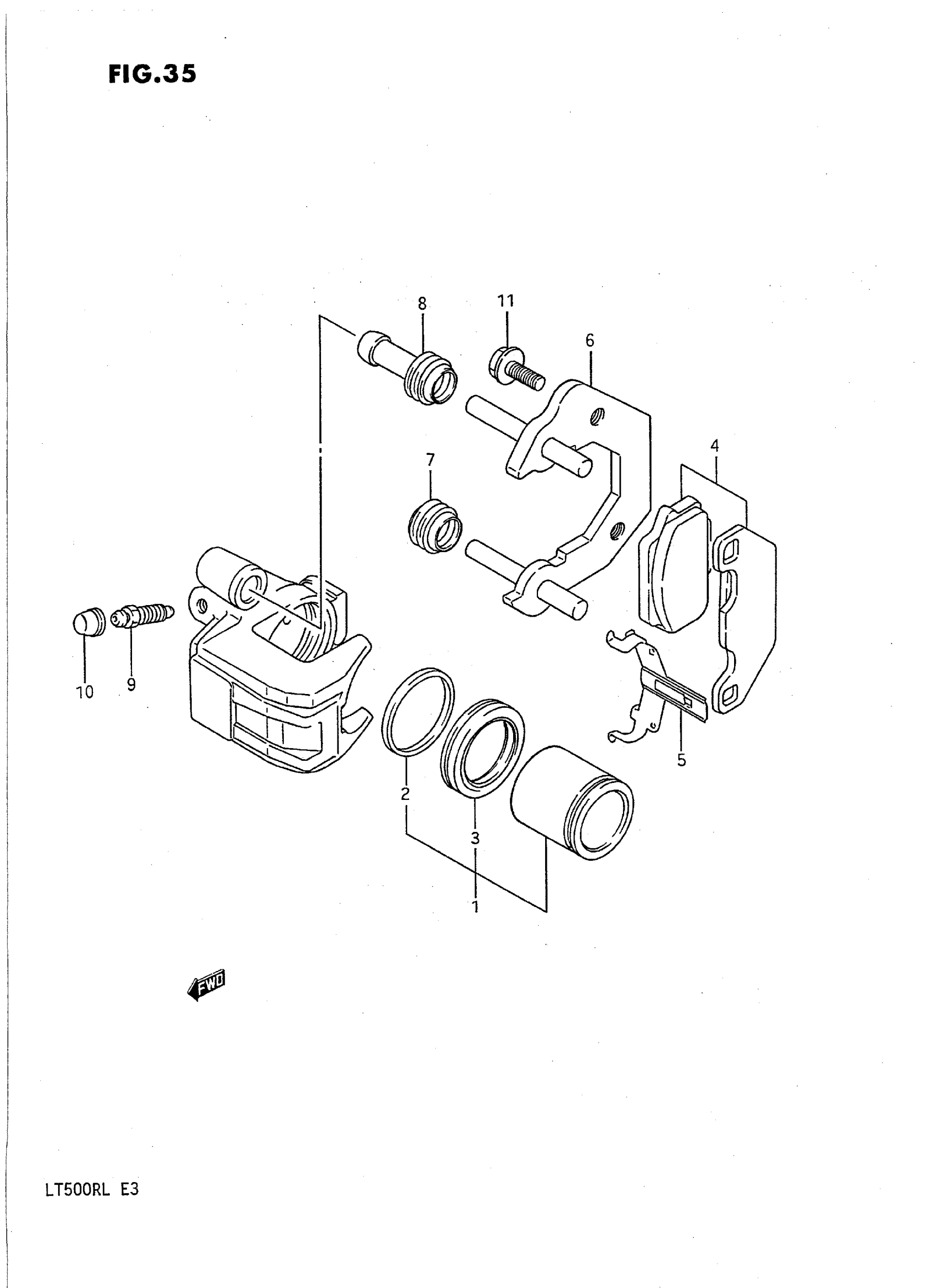

Suzuki LT500RL (1990) FRONT CALIPERS Diagram

#

Description
Price

NO DESCRIPTION AVAILABLE | MODEL H/J This part replaces 59100-43B00.

59100-43B03

Unavailable

NO DESCRIPTION AVAILABLE | MODEL H/J This part replaces 59300-43B00.

59300-43B03

Unavailable

NO DESCRIPTION AVAILABLE | MODEL K/L This part replaces 59100-43B02.

59100-43B03

Unavailable

NO DESCRIPTION AVAILABLE | MODEL K/L; Includes Item(s) 1 - 10 This part replaces 59300-43B02.

59300-43B03

Unavailable

1

PISTON SET This part replaces 59300-03810.

59300-02811

$34.88

2

SEAL,PISTON This part replaces 59107-03A00.

59307-35F00

$8.73

3

BOOT

59308-03A00

Unavailable

4

PAD SET

59100-43810

Unavailable

5

SPRING

59315-36500

$9.38

6

CARRIER, LH This part replaces 59350-19A00.

59350-19A01

$116.65

6

CARRIER, RH This part replaces 59150-19A00.

59150-19A01

Unavailable

7

.BOOT, AXLE

59312-36500

$5.07

8

.INSULATOR, AXLE

59313-36500

$5.99

9

BLEEDER

59121-18410

$8.73

10

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

$5.17

11

NO DESCRIPTION AVAILABLE This part replaces 09103-08148.

09103-08148-XC0

Unavailable
