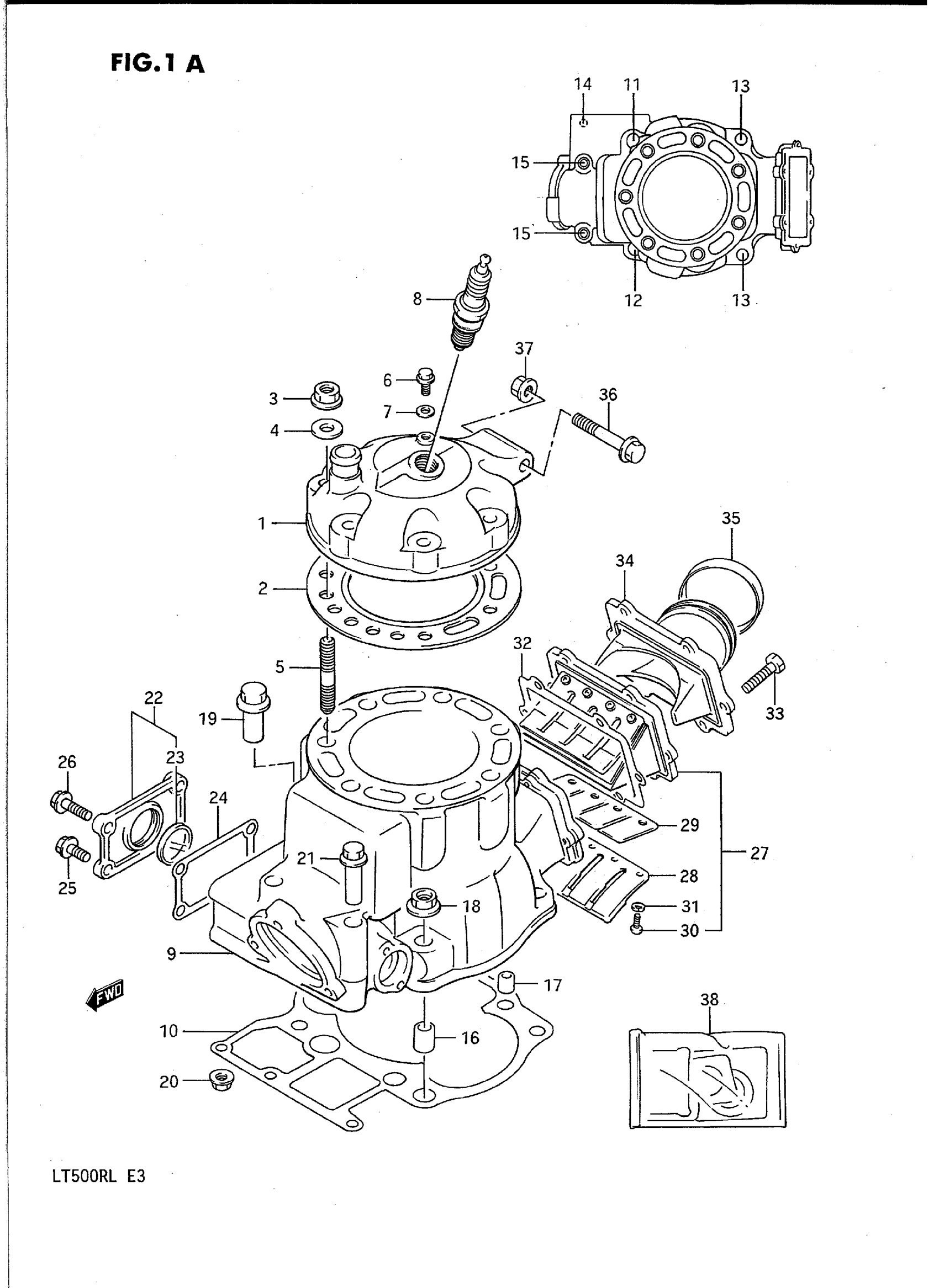

Suzuki LT500RL (1990) CYLINDER (MODEL J/K/L) Diagram

HEAD, CYLINDER

11111-43B10

Unavailable

GASKET,CYL HEAD This part replaces 11141-43B10.

11141-43B30

Unavailable

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

WASHER

09164-08020

$2.06

STUD BOLT (L:38)

09108-08218

Unavailable

BOLT, AIR DUCT

09360-06007

$2.30

GASKET

09168-06004

$1.49

SPARK PLUG (NGK,B8EGV)

09482-00208

Unavailable

CYLINDER

11210-43B12-0F0

Unavailable

GASKET,CYLINDER This part replaces 11241-43B00.

11241-43B10

Unavailable

NO DESCRIPTION AVAILABLE This part replaces 09108-10066.

09108-10066-XC0

Unavailable

BOLT,STUD This part replaces 09108-10091.

01421-1060A

$3.49

STUD BOLT (10X30)

09108-10092

Unavailable

STUD BOLT This part replaces 01421-06208.

01421-0620A

$1.91

BOLT,STUD This part replaces 01421-06458.

01421-0645A

$2.30

PIN This part replaces 09206-13001.

04211-13189

$2.19

PIN

04211-09129

$1.65

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39

NUT

09159-10065

Unavailable

NUT This part replaces 09159-06017.

08319-31067

$2.03

NUT

09159-06042

Unavailable

COVER, CYLINDER | Includes Item(s) 23

11230-00B01

Unavailable

LENS

11232-01B00

Unavailable

GASKET, CYLINDER COVER (NA) This part replaces 11233-00B00.

11233-01C00

Unavailable

BOLT

01547-06167

$1.65

BOLT

01547-06207

$2.01

NO DESCRIPTION AVAILABLE | Includes Item(s) 28 - 31 This part replaces 13150-01C10.

13150-92B00

Unavailable

STOPPER

13152-01C10

$8.53

VALVE, REED

13153-01C10

$13.63

SCREW This part replaces 02112-03086.

02112-0308A

$1.80

LOCK WASHER This part replaces 08321-21036.

08321-2103B

$1.49

GASKET, REED VALVE

13156-01C10

$3.38

BOLT This part replaces 01107-06207.

01500-06207

$2.28

PIPE, INTAKE

13110-43B10

Unavailable

CLAMP This part replaces 09402-56208.

09402-56901

$5.36

BOLT This part replaces 01517-08608.

01550-08607

$3.76

NUT

08319-31087

$2.32

GASKET SET | OPT This part replaces 11400-43850.

11400-43855

Unavailable
