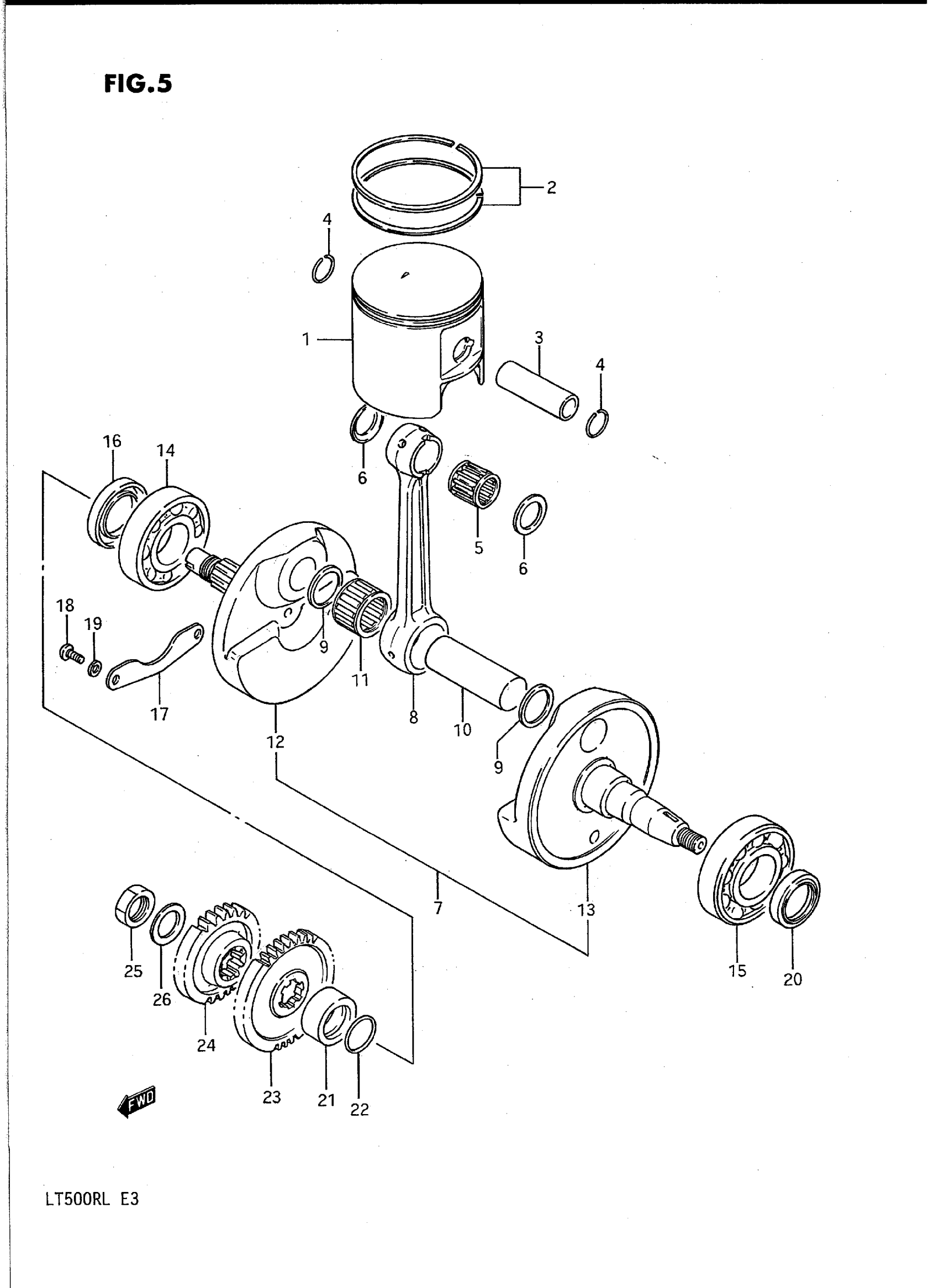

Suzuki LT500RL (1990) CRANKSHAFT Diagram

#

Description
Price

1

PISTON | MODEL H This part replaces 12110-43B02-0F0.

12110-43B10-0F0

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL H OPT This part replaces 12110-43B02-025.

12103-43810-025

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL H OPT This part replaces 12110-43B02-050.

12103-43810-050

Unavailable

1

PISTON | MODEL J/K/L

12110-43B10-0F0

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL J/K/L OPT This part replaces 12110-43B10-025.

12103-43810-025

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL J/K/L OPT This part replaces 12110-43B10-050.

12103-43810-050

Unavailable

2

RING, PISTON (STD) This part replaces 12140-43B10.

12141-14210

Unavailable

2

RING SET, PISTON (OS:0.25) | OPT

12140-43B10-025

Unavailable

2

RING SET, PISTON (OS:0.5) | OPT

12140-43B10-050

Unavailable

3

PIN, PISTON (L:63) | MODEL H This part replaces 12151-43B00.

12151-43B01

Unavailable

3

PIN, PISTON (L:63) | MODEL J/K/L

12151-43B01

Unavailable

4

CIRCLIP

09381-18002

$1.67

5

BEARING, PISTON PIN

09263-18025

$28.33

6

WASHER

09169-18005

Unavailable

7

CRANKSHAFT ASS'Y | MODEL H This part replaces 12200-43B00.

12200-43B01

Unavailable

7

CRANKSHAFT ASSY | MODEL J/K/L; Includes Item(s) 8 - 13

12200-43B01

Unavailable

8

ROD, CONNECTING | MODEL H This part replaces 12161-43B00.

12161-43B01

Unavailable

8

ROD, CONNECTING | MODEL J/K/L

12161-43B01

Unavailable

9

WASHER

09160-24022

Unavailable

10

PIN, CRANK

12211-43B00

Unavailable

11

BEARING

09263-24021

Unavailable

12

NO DESCRIPTION AVAILABLE This part replaces 12221-43B00.

12221-43B01

Unavailable

13

CRANKSHAFT, LH

12261-43B00

Unavailable

14

BEARING, LH This part replaces 09262-30075.

09262-30076

Unavailable

15

BEARING, LH

09262-30076

Unavailable

16

OIL SEAL, RH

09283-36004

$10.85

17

RETAINER, OIL SEAL

12541-14210

Unavailable

18

SCREW This part replaces 02112-06128.

02112-06127

$1.84

19

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

20

OIL SEAL, LH

09283-25082

Unavailable

21

SPACER, CRANKSHAFT RH

12359-43B00

Unavailable

22

.O-RING (D:2.4,ID:21.8)

09280-22001

$1.65

23

GEAR, CRANK BALANCER DRIVE | NT:40

12661-43B00

Unavailable

24

GEAR, PRIMARY DRIVE (NT:28)

21111-43B00

Unavailable

25

NUT

09140-18011

Unavailable

26

WASHER

09164-18004

$3.76
