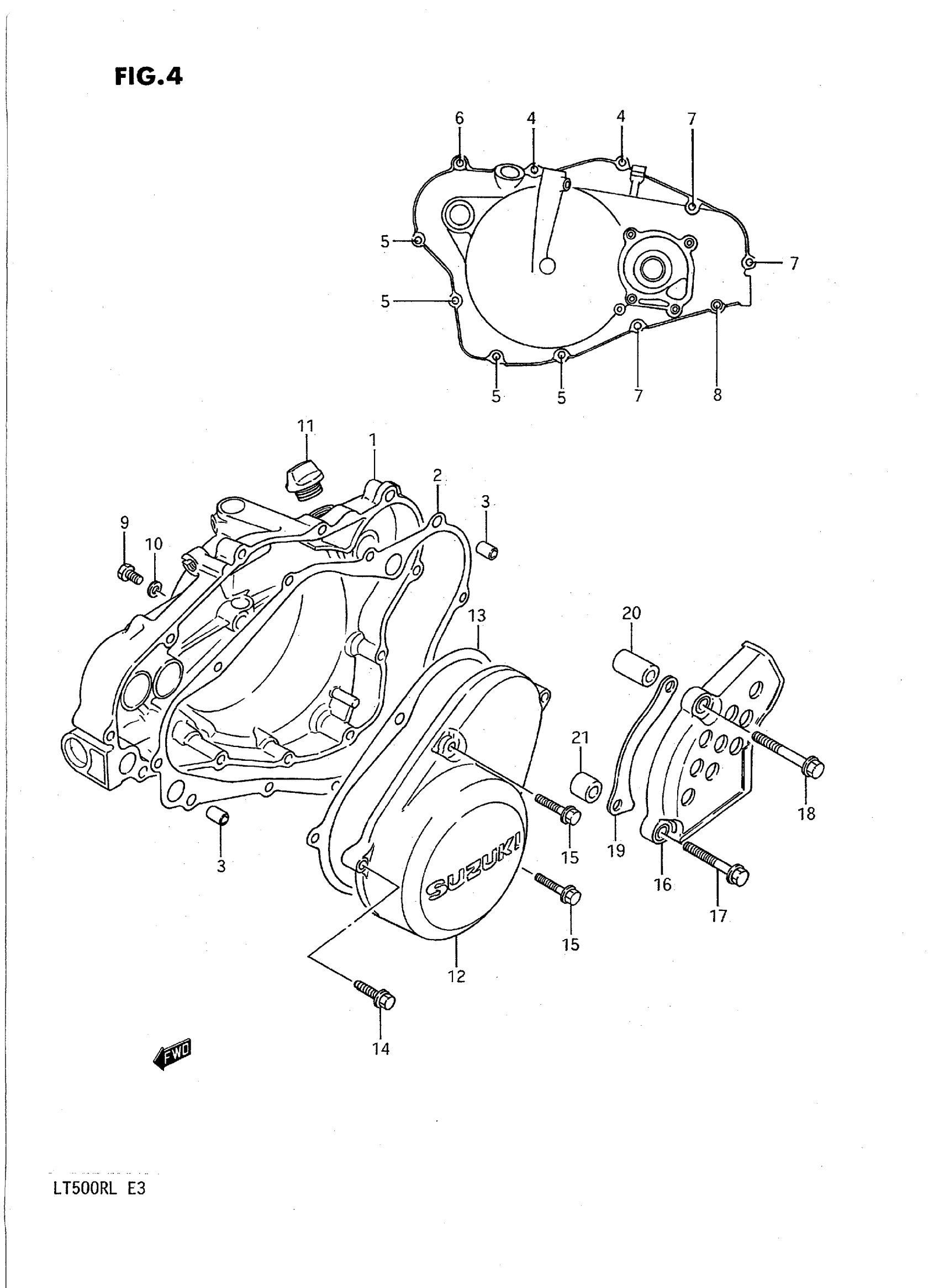

Suzuki LT500RL (1990) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11340-43B00

Unavailable

2

GASKET, CLUTCH This part replaces 11482-43B00.

11482-43BV0

$14.08

3

PIN

04211-09129

$1.65

4

BOLT

01547-06307

$2.03

5

BOLT

01547-06357

$2.03

6

BOLT

01547-06407

$2.32

7

BOLT

01547-06457

$2.32

8

BOLT

01547-06657

$2.75

9

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.49

10

GASKET

09168-06001

$1.49

11

PLUG SET This part replaces 09200-20810.

09200-20811

$4.02

12

COVER, MAGNETO

11351-43B00

Unavailable

13

GASKET, MAG COV This part replaces 11483-43B00.

11483-43BV0

Unavailable

14

BOLT

01547-06257

$2.03

15

BOLT

01547-06307

$2.03

16

COVER, SPROCKET

11360-43B01

Unavailable

17

BOLT This part replaces 01517-08408.

01550-08407

$3.42

18

BOLT This part replaces 01517-08558.

01550-08557

$3.74

19

PLATE, CHAIN GUIDE

27641-43B00

Unavailable

20

SPACER (L:26)

09180-08080

$4.66

21

SPACER,8.1X16X1 This part replaces 09180-08115.

09180-08115-XC0

Unavailable
