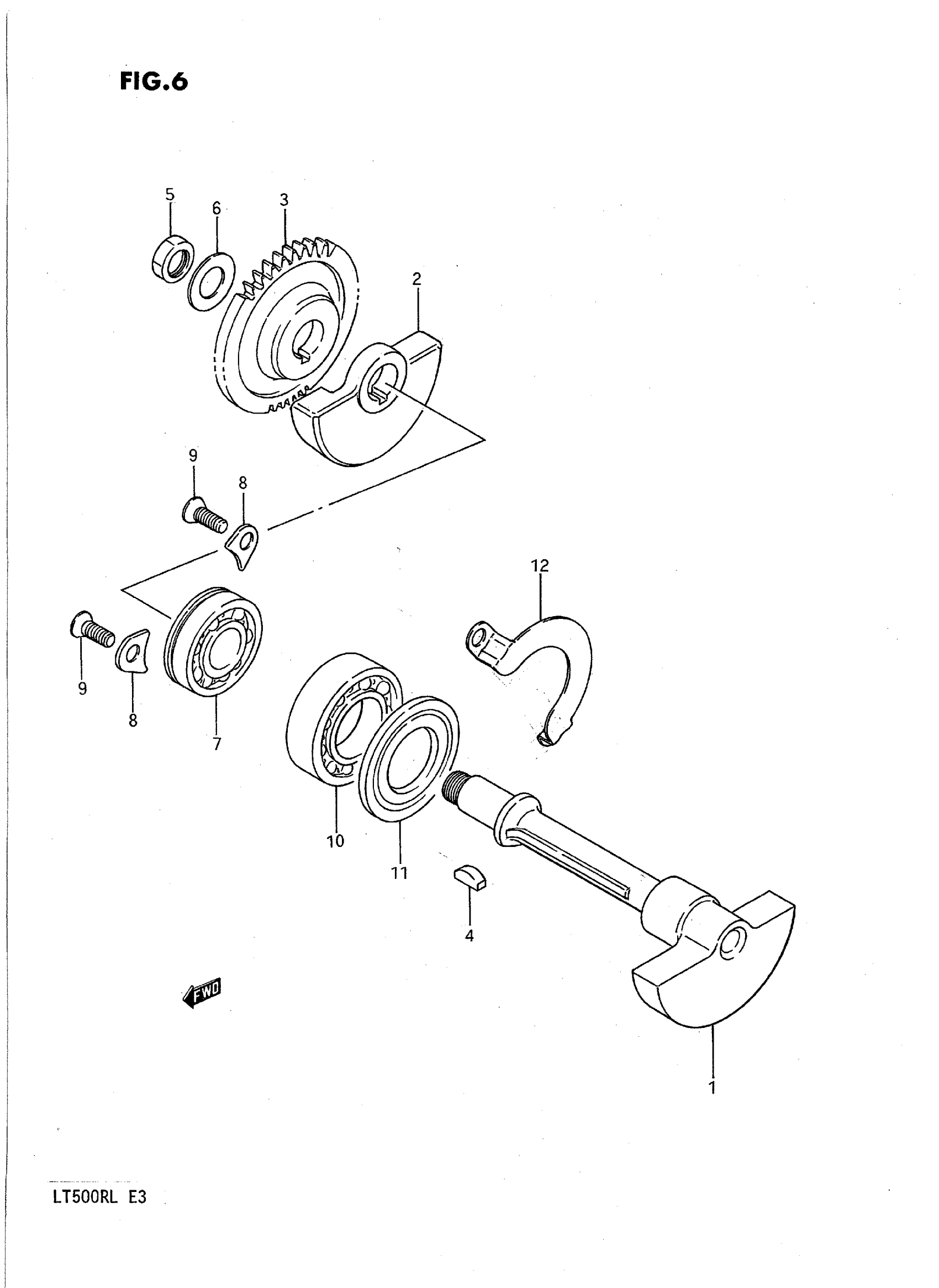

Suzuki LT500RL (1990) CRANK BALANCER Diagram

#

Description
Price

1

BALANCER, CRANK | MODEL H This part replaces 12651-43B00.

12651-43B10

Unavailable

1

BALANCER, CRANK | MODEL J/K/L

12651-43B10

Unavailable

2

WEIGHT, CRANK BALANCER

12654-43B00

Unavailable

3

GEAR, BALANCER DRIVEN | NT:40

12666-43B00

Unavailable

4

KEY

08341-31059

$2.48

5

NUT 14MM This part replaces 09140-14031.

09140-14022

$3.50

6

WASHER

09164-14010

Unavailable

7

BEARING, RH

09262-17030

Unavailable

8

RETAINER, BEARING

12542-13A00

Unavailable

9

SCREW

02122-06167

$1.49

10

B1 25X52X15 BEA This part replaces 09262-25088.

09262-25078

$34.47

11

OIL SEAL, LH (25X52X5) | MODEL H

09282-25004

Unavailable

11

OIL SEAL, LH (32X52X5) | MODEL J/K/L

09282-32004

Unavailable

12

RETAINER, OIL SEAL | MODEL H

12543-43B00

Unavailable
