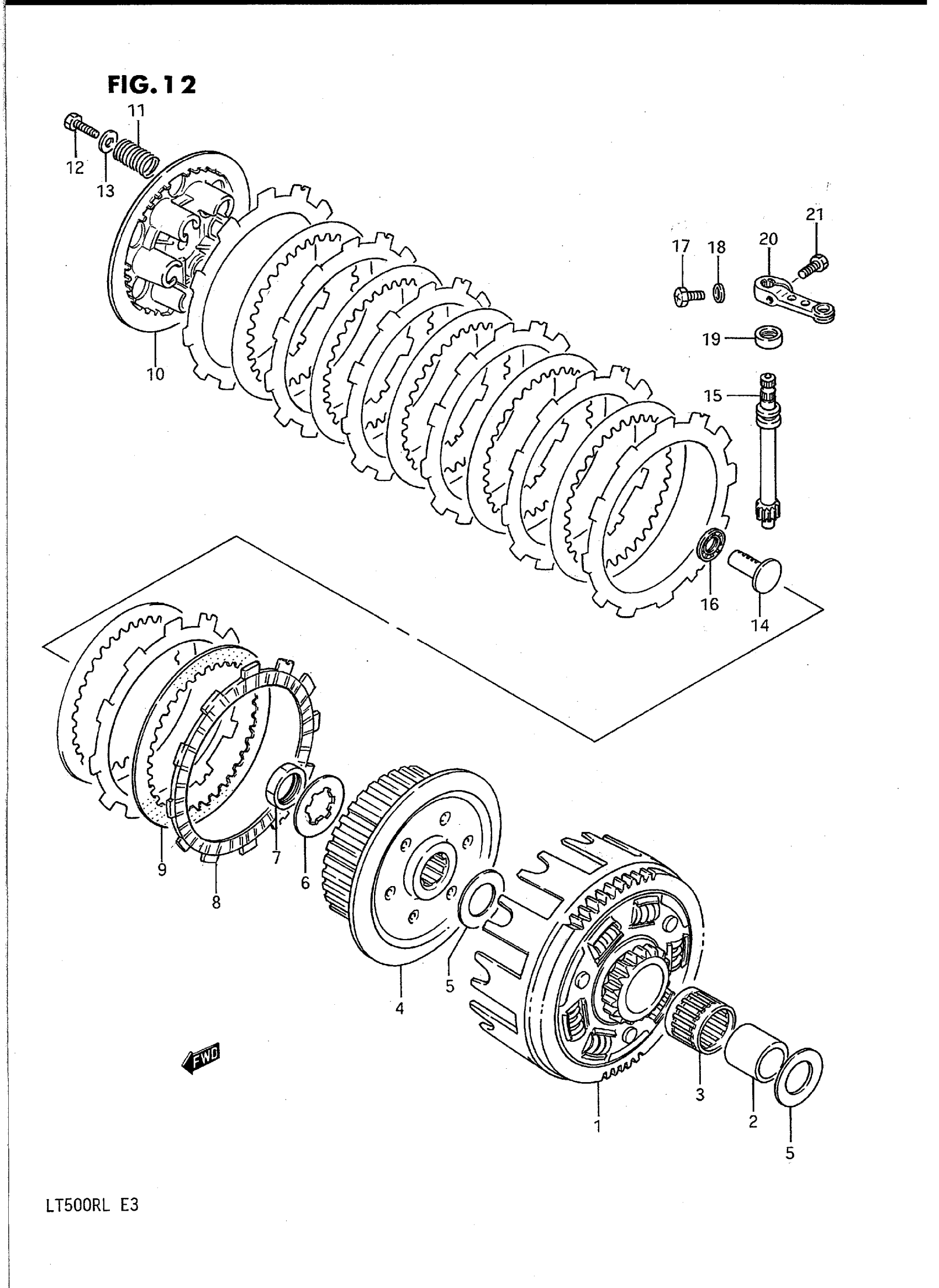

Suzuki LT500RL (1990) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN | NT:60/18

21200-43B01

Unavailable

2

SPACER (22X28X27)

09180-22021

Unavailable

3

BEARING (28X33X27)

09263-28002

Unavailable

4

HUB, SLEEVE

21410-43B00

Unavailable

5

THRUST WASHER

08211-22403

$4.26

6

WASHER

09167-22020

Unavailable

7

NUT

09140-22005

$3.87

8

PLATE, DRIVE NO.1 This part replaces 21441-07A01.

21441-12D01

$20.64

9

PLATE, DRIVEN (T:2)

21451-31000

$10.40

10

DISK, CLUTCH PRESSURE

21462-43B00

Unavailable

11

SPRING

09440-15021

$3.89

12

BOLT (5X12)

09100-05002

$1.49

13

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

14

RACK,CLUTCH RELEASE This part replaces 23165-00B00.

23165-44B01

$24.92

15

PINION (NT:12)

23261-43B00

Unavailable

16

BEARING

09263-10002

$10.19

17

BOLT (6X10) This part replaces 09135-06002.

09135-06501

$3.04

18

WASHER (6.2X11X1.2)

09168-06004

$1.49

19

OIL SEAL (10X17X5)

09285-10004

$3.37

20

ARM, CLUTCH RELEASE This part replaces 23271-20900.

23271-20902

$29.60

21

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$1.97
