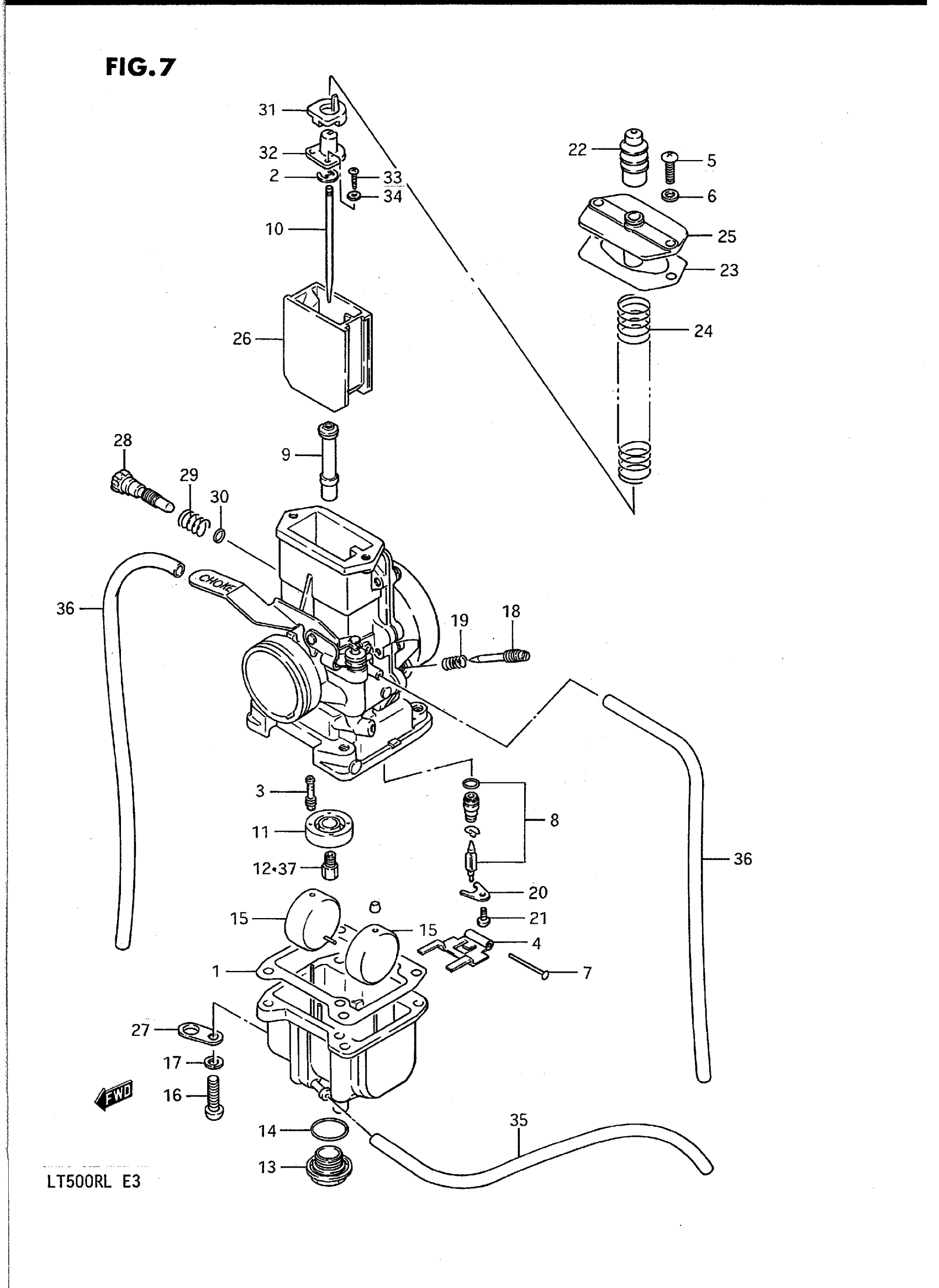

Suzuki LT500RL (1990) CARBURETOR (MODEL H) Diagram

#

Description
Price

CARBURETOR ASSY | Includes Item(s) 1 - 36

13200-43B00

Unavailable

1

GASKET

13251-14300

Unavailable

2

E RING

13394-10010

$5.45

3

JET, PILOT (30) This part replaces 09492-30003.

09492-30006

$9.55

4

ARM, FLOAT

13253-40010

Unavailable

5

SCREW This part replaces 02112-04126.

02112-0412A

$1.49

6

LOCK WASHER This part replaces 08321-21046.

08321-0104A

$1.84

7

PIN

13254-92311

$2.07

8

VALVE ASSY,NEED This part replaces 13370-43B00.

13370-43B01

Unavailable

9

JET, NEEDLE (O-6)

09494-00575

Unavailable

10

NEEDLE, JET (6DH6-3)

13383-43B00

Unavailable

11

RING

13331-14300

Unavailable

12

JET, MAIN (420)

09491-84004

Unavailable

13

CAP, DRAIN

13247-32210

$15.23

14

O RING

13249-41310

$4.40

15

FLOAT

13252-18620

$21.82

16

SCREW This part replaces 02112-05206.

02112-0520B

$1.84

17

LOCK WASHER This part replaces 08321-21056.

08321-0105A

$1.84

18

SCREW, PILOT AIR This part replaces 13269-46010.

13269-95110

$13.35

19

SPRING

13268-01010

$5.28

20

PLATE, NEEDLE VALVE

13373-39110

$6.64

21

SCREW This part replaces 02112-04066.

02112-0406B

$1.55

22

CAP

13681-41510

$11.68

23

GASKET, TOP

13266-14300

Unavailable

24

SPRING, THROTTLE VALVE

13573-43B00

Unavailable

25

CAP, TOP

13261-43B00

Unavailable

26

VALVE, PISTON (CA:2.0)

13551-43B00

Unavailable

27

PLATE

13693-13A00

Unavailable

28

ADJUSTER

13267-48700

$17.37

29

SPRING

13268-48110

$4.64

30

O RING

13278-02340

$1.91

31

RING This part replaces 13387-14310.

13387-14230

Unavailable

32

CONNECTOR

13398-14310

Unavailable

33

SCREW This part replaces 02112-03106.

02112-0310B

$2.72

34

LOCK WASHER This part replaces 08321-21036.

08321-2103B

$1.49

35

HOSE (3.5X6.5X600) | L:500->280 This part replaces 13683-37420.

09351-35653-600

$4.64

36

HOSE 4X7X600 | LH,L:400->325 This part replaces 13684-43B00.

09352-40706-600

$5.11

37

JET, MAIN (390) | OPT

09491-78005

$11.83

37

JET, MAIN (400) | OPT

09491-80010

$11.83

37

JET, MAIN (410) | OPT

09491-82007

$12.88

37

JET, MAIN (430) | OPT

09491-86002

$11.83

37

JET, MAIN (440) | OPT

09491-88001

$18.02
