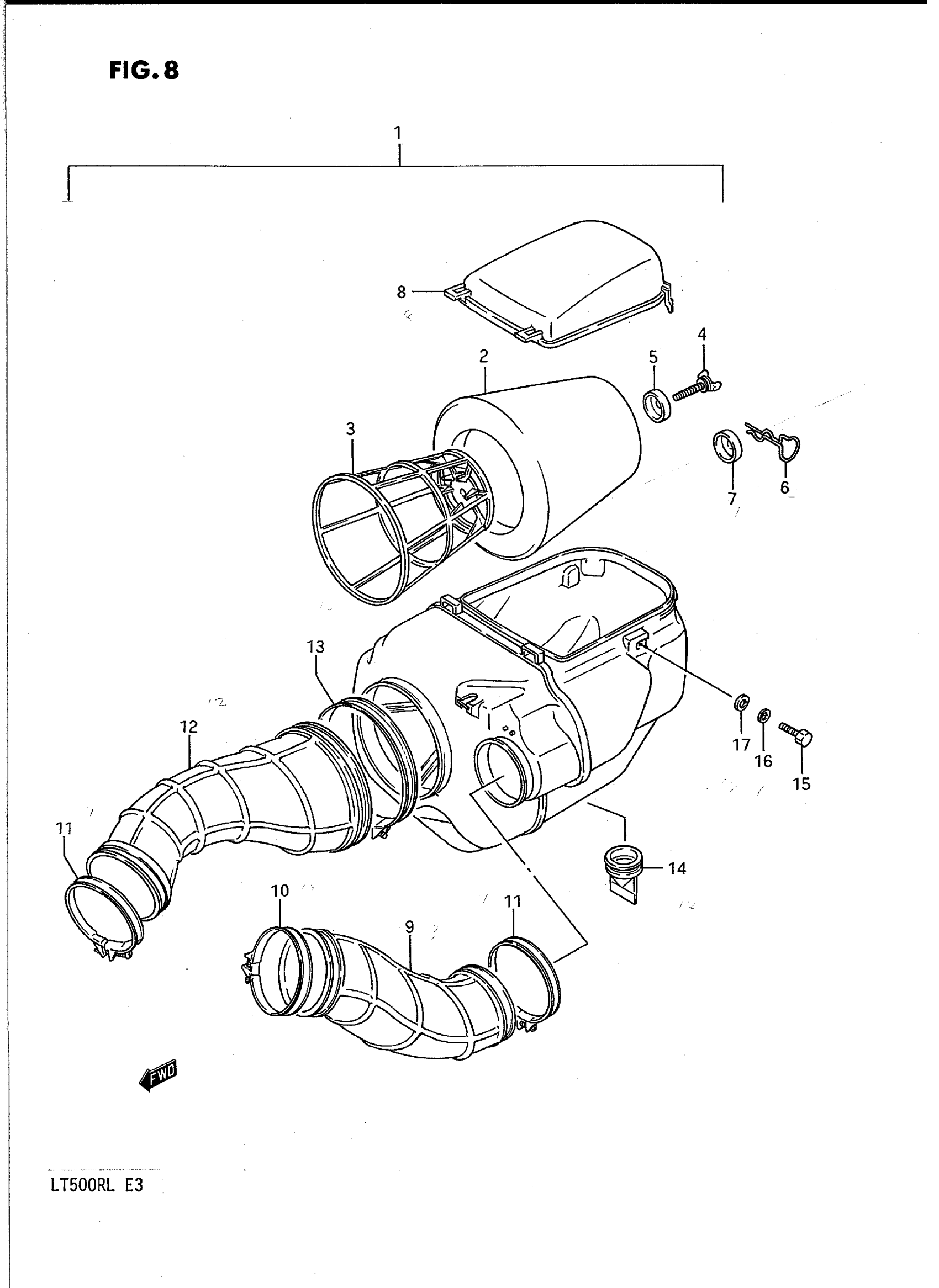

Suzuki LT500RL (1990) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | MODEL H This part replaces 13700-43B00.

13700-43B01

Unavailable

1

CLEANER ASSY, AIR | MODEL J/K/L; Includes Item(s) 2 - 14

13700-43B01

Unavailable

2

FILTER

13780-43B00

Unavailable

3

HOLDER, FILTER | MODEL H

13791-43B00

Unavailable

3

HOLDER, FILTER | MODEL J/K/L

13791-43B01

Unavailable

4

BOLT, WING | MODEL H

13837-43B00

Unavailable

5

WASHER | MODEL H This part replaces 13792-40400.

13792-13A01

$4.34

6

PIN, SNAP | MODEL J/K/L

13823-43B00

Unavailable

7

WASHER | MODEL J/K/L

13796-20400

$2.99

8

CAP

13740-43B00

Unavailable

9

TUBE, INLET

13891-43B00

Unavailable

10

CLAMP

09402-66208

$5.57

11

CLAMP This part replaces 09402-70207.

09402-70902

$5.64

12

TUBE OUTLET This part replaces 13881-43B00.

13881-43B01

Unavailable

13

CLAMP

13826-43B00

$9.46

14

TUBE, DRAIN

13873-18900

Unavailable

15

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$1.97

16

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

17

WASHER This part replaces 08322-21067.

08322-01067

$2.13
