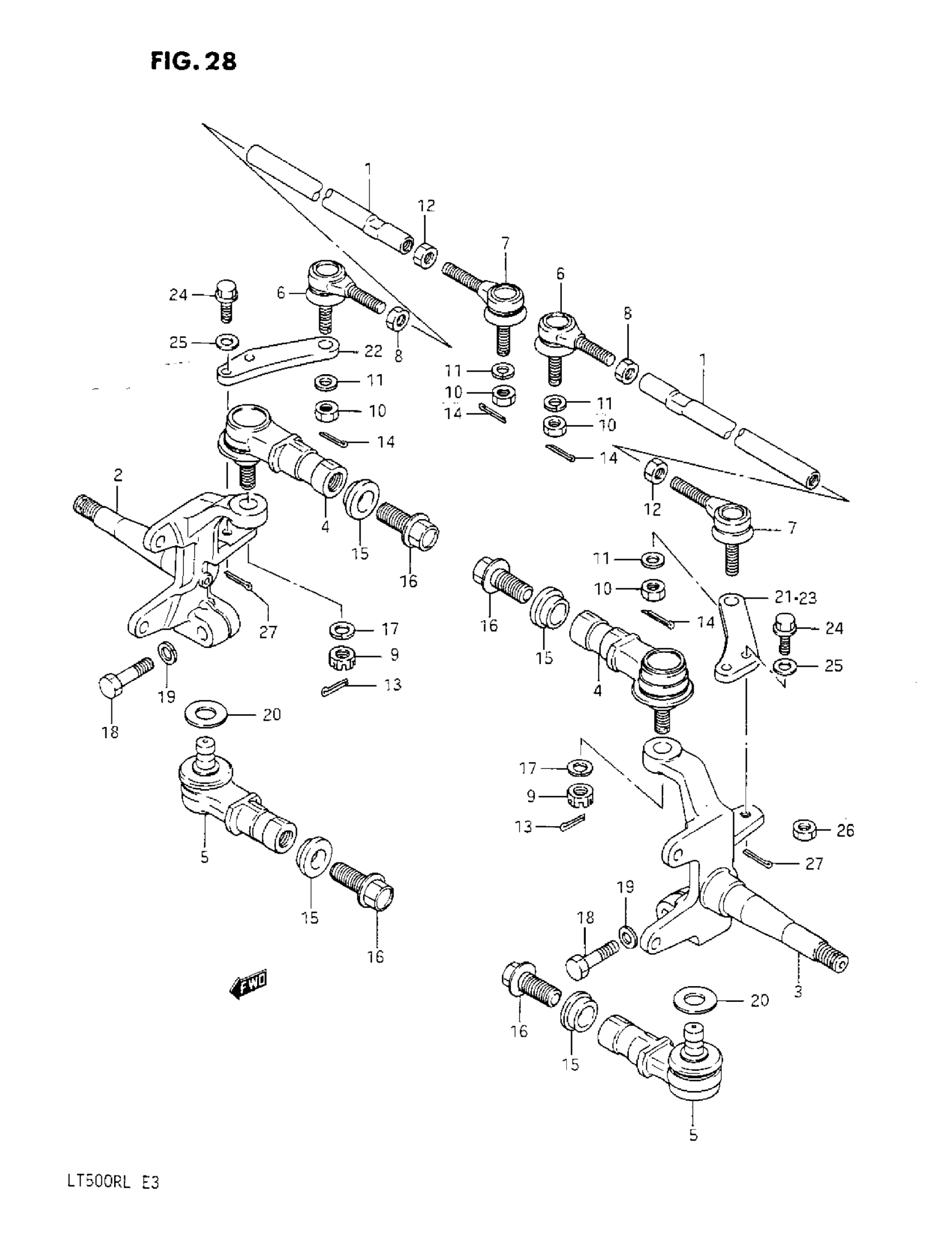

Suzuki LT500R (1987) TIE ROD Diagram

#

Description
Price

1

TIE-ROD, STEERING

51281-43B00

$34.24

2

NO DESCRIPTION AVAILABLE | TO 51231-41B10 W/09103-08236 W/08319-31085 This part replaces 51231-43B00.

51231-43B10

Unavailable

2

KNUCKLE, STEERING RH | MODEL J/K/L

51231-43B20

Unavailable

3

NO DESCRIPTION AVAILABLE | TO 51241-41B10 W/09103-08236 W/08319-31085 This part replaces 51241-43B00.

51241-43B10

Unavailable

3

KNUCKLE, STEERING LH | MODEL J/K/L

51241-43B20

Unavailable

4

END, KNUCKLE STEERING UPPER | MODEL H This part replaces 51210-19A00.

51210-19A01

Unavailable

4

END, KNUCKLE STEERING UPPER | MODEL J/K/L

51210-19A01

Unavailable

5

END,KNUCKLE STE | MODEL H This part replaces 51220-19A00.

51220-19A03

$106.62

5

END,KNUCKLE STE | MODEL J/K/L This part replaces 51220-19A01.

51220-19A03

$106.62

6

ROD END, RH | MODEL H This part replaces 51260-43B00.

51260-43B01

Unavailable

6

ROD END, RH | MODEL J/K/L

51260-43B01

Unavailable

7

ROD, END (LH THREAD) | MODEL H This part replaces 51270-43B00.

51270-43B01

$78.35

7

ROD END, LH | MODEL J/K/L

51270-43B01

$78.35

8

NUT This part replaces 09140-12036.

09140-12030

$2.92

9

NUT This part replaces 08314-41125.

08314-4012A

$2.50

10

NUT This part replaces 09159-10036.

09159-10027

$3.10

11

LOCK WASHER This part replaces 08321-21104.

08321-0110A

$1.84

12

NUT, TIE ROD LH THREAD

09140-12035

$2.92

13

PIN This part replaces 04111-30306.

04111-3030A

$1.49

14

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

15

STOPPER, KNUCKLE END BOLT

52418-24500

$8.83

16

BOLT, KNUCKLE STEERING END

09103-14008

$8.85

17

WASHER,LOCK This part replaces 08321-21125.

08321-0112A

$2.10

18

BOLT, KNUCKLE LOWER

09100-10225

$4.02

19

LOCK WASHER This part replaces 08321-21104.

08321-0110A

$1.84

20

WASHER, KNUCKLE END This part replaces 09160-14034.

09160-14060

$2.85

21

ARM, KNUCKLE STEERING RH | MODEL H This part replaces 51232-43B00.

51232-43B01

Unavailable

22

ARM, KNUCKLE STEERING RH | MODEL J/K/L

51232-43B01

Unavailable

23

ARM, KNUCKLE STEERING LH | MODEL J/K/L

51242-43B00

Unavailable

24

BOLT, KNUCKLE STEERING (L:33) | FOR 51231-43B00 FOR 51241-43B00

09103-08233

Unavailable

24

BOLT, KNUCKLE STEERING (L:33) | FOR 51231-41B10 FOR 51241-41B10 MODEL J/K/L

09103-08236

Unavailable

25

WASHER

09160-08103

$3.48

26

NUT This part replaces 08319-31085.

08319-3108A

$2.32

27

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
