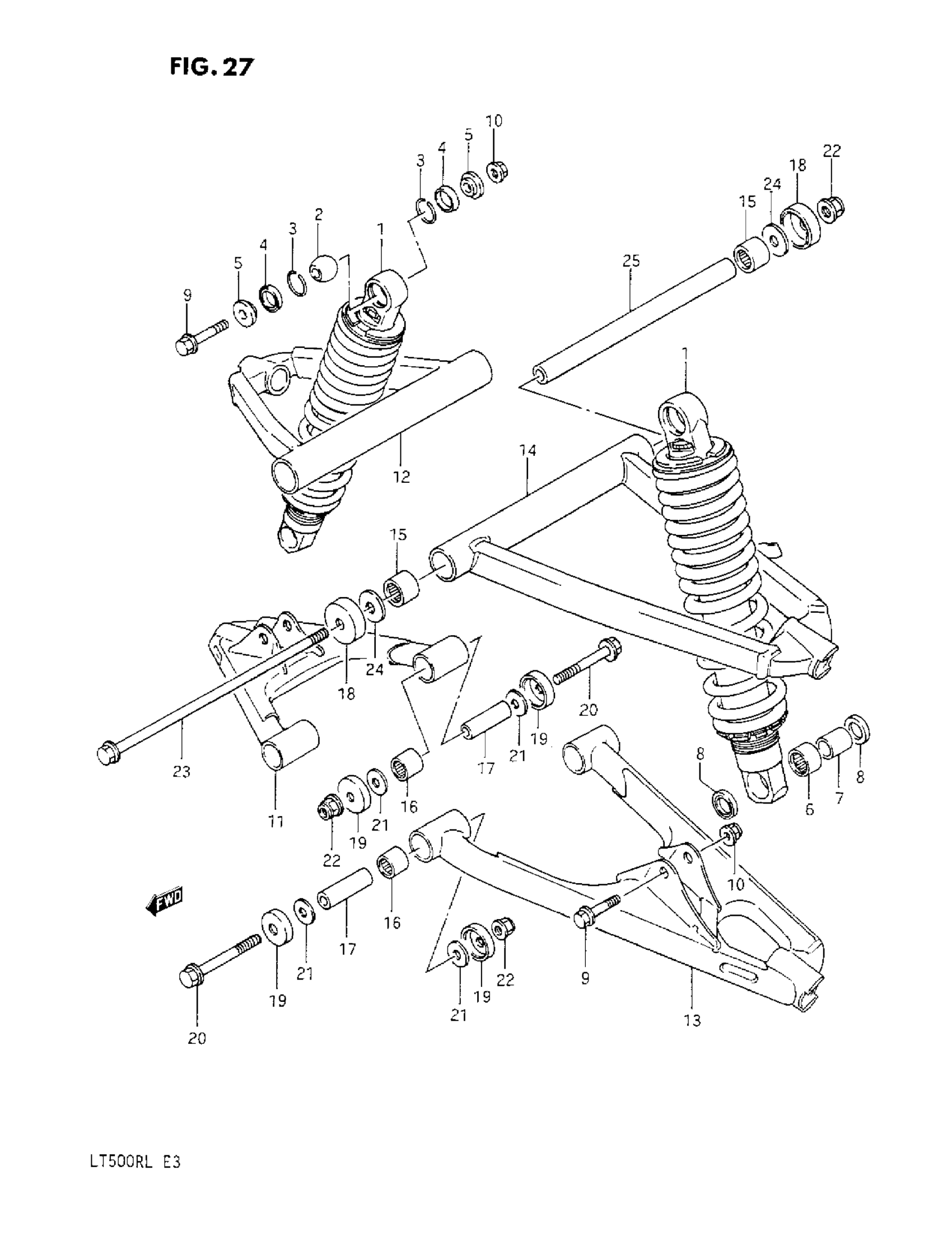

Suzuki LT500R (1987) SUSPENSION ARM (H) Diagram

#

Description
Price

1

SHOCK ABSORBER, FRONT (YELLOW This part replaces 52100-43B00-163.

52100-43B10-163

Unavailable

2

BEARING, REAR (10x24x14.5) This part replaces 52178-43B00.

62175-00B00

$61.15

3

RING, STOPPER This part replaces 62277-20900.

62657-34A01

$1.99

4

DUST SEAL

62226-20900

$13.05

5

SPACER, BUSH METAL

52177-43B00

Unavailable

6

BEARING, LOWER

52188-43B00

Unavailable

7

SPACER, BUSH

52187-43B00

Unavailable

8

.SEAL,OIL (17X24X3) This part replaces 62647-02B00.

09285-17007

$3.76

9

BOLT, SHOCK ABSORBER

62648-14500

$4.34

10

NUT

08319-31107

$2.73

11

ARM, SUSPENSION, LOWER RH This part replaces 52410-43B00.

52410-43B10

Unavailable

12

ARM, SUSPENSION, UPPER RH

52430-43B00

Unavailable

13

ARM, SUSPENSION, LOWER LH This part replaces 52420-43B00.

52420-43B10

Unavailable

14

ARM, SUSPENSION, UPPER LH

52440-43B00

Unavailable

15

BEARING, SUSPENSION ARM UPPER

09263-17019

Unavailable

16

.BEARING (17X24X25) This part replaces 09263-17020.

09263-17053

$21.66

17

SPACER, SUSPENSION ARM PIVOT

52455-43B00

$21.67

18

DUST SEAL, SUSPENSION ARM PIVOT

52451-43B00

Unavailable

19

SEAL,DUST This part replaces 52454-43B00.

52454-43B01

$7.73

20

BOLT,10X77 This part replaces 09103-10186.

09103-10247-XC0

$6.02

21

WASHER, SUSPENSION ARM PIVOT

08211-10281

$2.03

22

NUT

08319-31107

$2.73

23

NO DESCRIPTION AVAILABLE This part replaces 52471-43B00.

52471-43B0V

Unavailable

24

WASHER, SUSPENSION ARM UPPER

08211-10303

$4.00

25

SPACER, SUSPENSION ARM UPPER

52452-43B00

Unavailable
