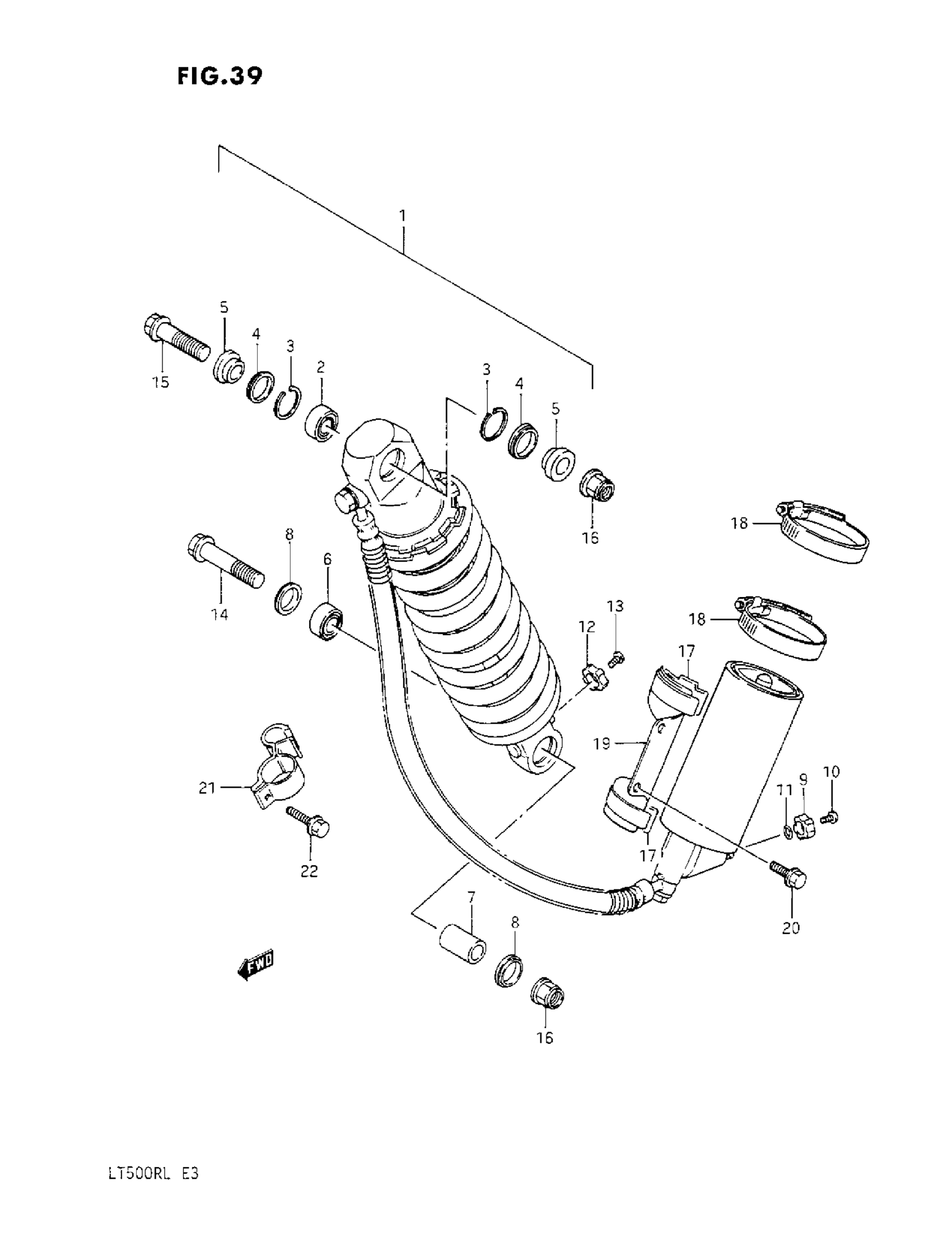

Suzuki LT500R (1987) SHOCK ABSORBER Diagram

#

Description
Price

1

ABSORBER ASSY, REAR SHOCK | MODEL H This part replaces 62100-43B00-163.

62100-43B10-163

Unavailable

1

ABSORBER ASS'Y, REAR SHOCK (YELLOW) | MODEL J/K/L

62100-43B10-163

Unavailable

2

BEARING, REAR (10x24x14.5) This part replaces 52178-43B00.

62175-00B00

$61.15

3

RING, STOPPER This part replaces 62277-20900.

62657-34A01

$1.99

4

DUST SEAL

62226-20900

$13.05

5

COLLAR

52177-43B00

Unavailable

6

BEARING

52188-43B00

Unavailable

7

SPACER

52187-43B00

Unavailable

8

.SEAL,OIL (17X24X3) This part replaces 62647-02B00.

09285-17007

$3.76

9

PLATE, ADJUST

62193-43B00

Unavailable

10

SCREW

62357-43B00

Unavailable

11

O-RING

62354-43B00

Unavailable

12

PLATE, ADJUST | MODEL H

62193-43B00

Unavailable

13

SCREW | MODEL H

62357-43B00

Unavailable

14

BOLT (10X58) This part replaces 62311-14501.

09103-10428

$5.07

15

BOLT, LOWER (10X54) This part replaces 62648-01B00.

62311-28E00

$6.19

16

NUT

08319-31107

$2.73

17

CUSHION,RR SHOC This part replaces 62423-43B00.

62423-43B01

Unavailable

18

CLAMP, TANK

09402-70503

$18.42

19

BRACKET, TANK

62420-43B01

Unavailable

20

BOLT This part replaces 01517-06167.

01550-06167

$2.30

21

CLAMP, HOSE

62430-43B00

Unavailable

22

BOLT This part replaces 01517-06205.

01550-0620A

$1.97
