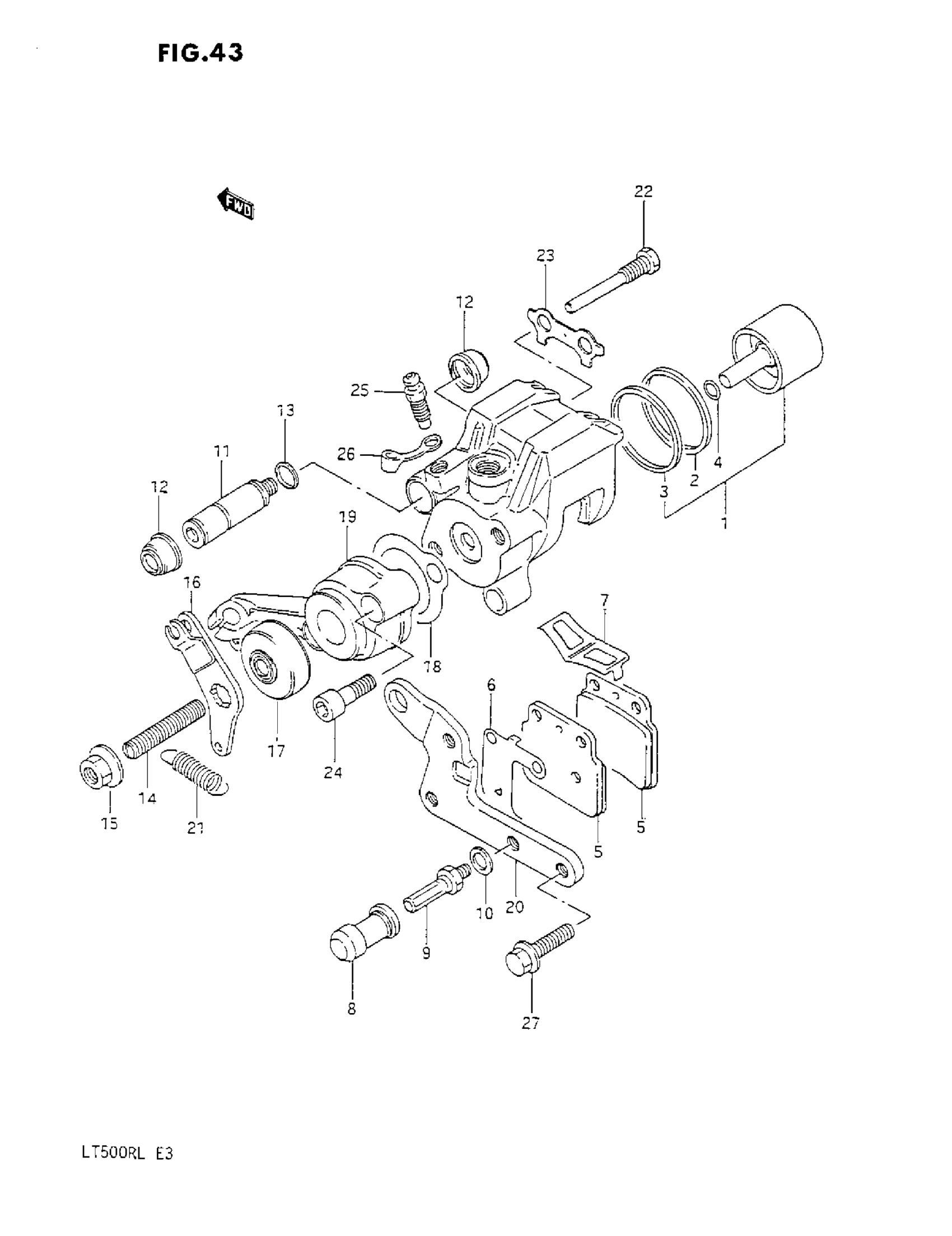

Suzuki LT500R (1987) REAR CALIPER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 69100-43B00.

69100-01C00-999

Unavailable

1

PISTON SET This part replaces 69100-19840.

69100-19841

Unavailable

2

DUST SEAL

59108-13A00

Unavailable

3

..SEAL SET,PISTON This part replaces 59107-13A00.

69100-13820

$8.52

4

O-RING

69322-19A00

$4.80

5

PAD SET This part replaces 69140-43B00.

69100-43870

Unavailable

6

SHIM

59371-13A00

$9.37

7

SPRING

59315-13A00

$11.02

8

BOOT

59386-13A00

$7.95

9

BOLT

59382-13A00

$7.69

10

WASHER

59314-13A00

$2.02

11

PIN

69305-19A00

$23.35

12

BOOT

59303-13A00

$5.80

13

SPRING

59306-13A00

$3.15

14

BOLT

69327-19A00

$20.22

15

NUT

69323-19A00

$4.88

16

ARM

69325-19A00

$19.38

17

BOOT

69329-19A00

$7.27

18

PACKING This part replaces 69326-19A00.

69326-19A01

$9.23

19

BRAKE, PARKING (SILVER)

69320-19A10

Unavailable

20

BRACKET

69351-43B00

Unavailable

21

SPRING

69328-19A00

$7.73

22

PIN

59345-13A00

$6.98

23

WASHER

59346-13A00

$4.17

24

BOLT

69321-19A00

$9.00

25

BLEEDER

59121-01A00

$8.73

26

CAP

59122-01A00

$4.34

27

BOLT

09103-08229

Unavailable
