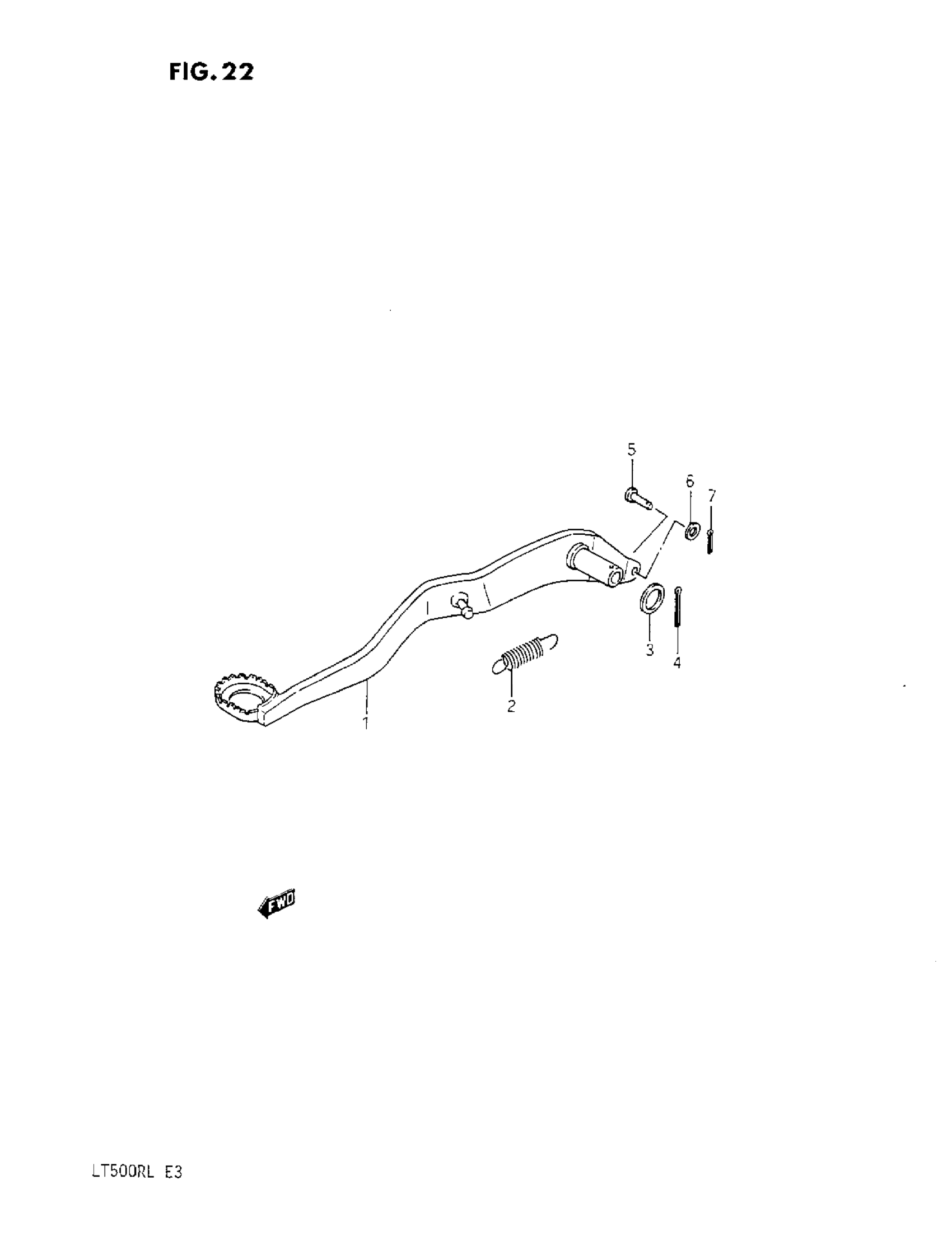

Suzuki LT500R (1987) REAR BRAKE Diagram

#

Description

Price

1

PEDAL, BRAKE (SILVER)

43110-43B00-126

Unavailable

2

SPRING This part replaces 09443-14020.

09443-14015

$2.89

3

WASHER,17.5X34X This part replaces 09160-17021.

09160-17501-XC0

$2.28

4

PIN This part replaces 04111-30308.

04111-3030A

$1.49

5

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

$4.11

6

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26

7

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49
