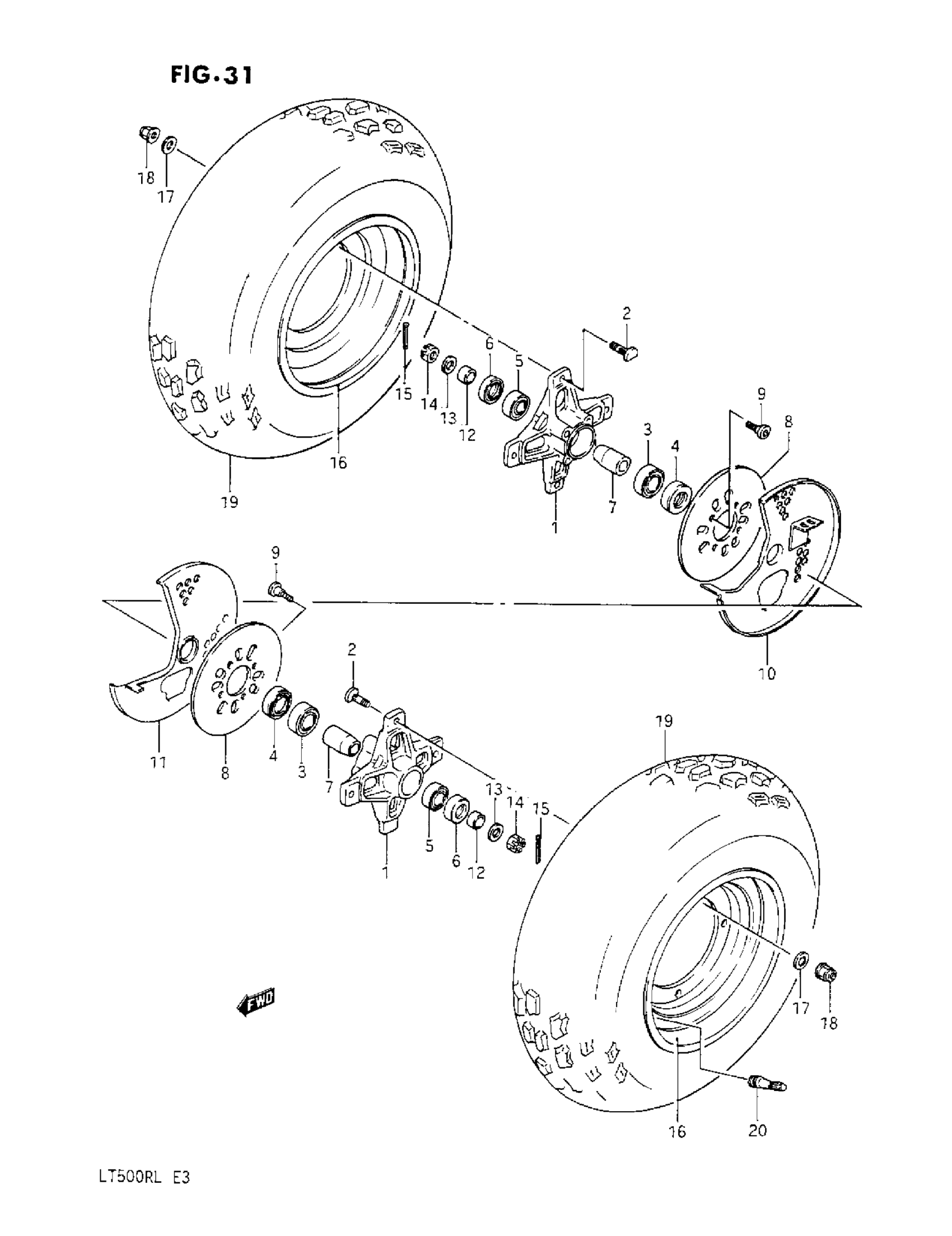

Suzuki LT500R (1987) FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT (BLUE)

54111-19A11-19F

Unavailable

2

BOLT, FRONT HUB

09119-08070

Unavailable

3

BEARING This part replaces 08120-60047.

08120-6004B

$16.23

4

DUST SEAL, INNER

09284-26002

$10.92

5

BEARING, FRONT HUB OUTER This part replaces 08120-62027.

09262-15024

$24.83

6

DUST SEAL, OUTER

09284-21001

$12.79

7

SPACER, FRONT HUB

54731-19A00

Unavailable

8

DISC, FRONT BRAKE

59211-43B00

Unavailable

9

BOLT This part replaces 59421-03A01.

09106-08155

$3.76

10

COVER, FRONT DISK RH

59230-43B01

Unavailable

11

COVER, FRONT DISK LH

59430-43B01

Unavailable

12

SPACER, FRONT AXLE

09180-15068

$4.90

13

WASHER This part replaces 08322-11148.

08322-01147

$1.91

14

NUT, HUB This part replaces 08314-41148.

08314-4014B

$4.24

15

PIN This part replaces 04111-30308.

04111-3030A

$1.49

16

RIM, FRONT WHEEL (10X5.5AT)

55310-43B00

Unavailable

17

WASHER This part replaces 08322-21088.

08322-01087

$2.13

18

NUT This part replaces 09159-08072.

09159-08034

$1.62

19

TIRE, FRONT (AT21X7-10) | BS, MODEL H This part replaces 55100-43B30.

55100-43B32

Unavailable

19

TIRE, FRONT (AT21X7-10) | BS, MODEL J This part replaces 55100-43B70.

55100-43B32

Unavailable

19

TIRE, FRONT (21X7.00-10) | DUNLOP, MODEL H

55100-43B51

Unavailable

19

TIRE, FRONT (21X7.00-10) | DUNLOP, MODEL J This part replaces 55100-43B80.

55100-43B51

Unavailable

19

TIRE, FRONT (AT21X7-10) | BS, MODEL K This part replaces 55100-43B31.

55100-43B32

Unavailable

19

TIRE, FRONT (AT21X7-10) | BS, MODEL L

55100-43B32

Unavailable

20

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$9.25
