1987 Suzuki LT500R Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 1987 Suzuki LT500R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

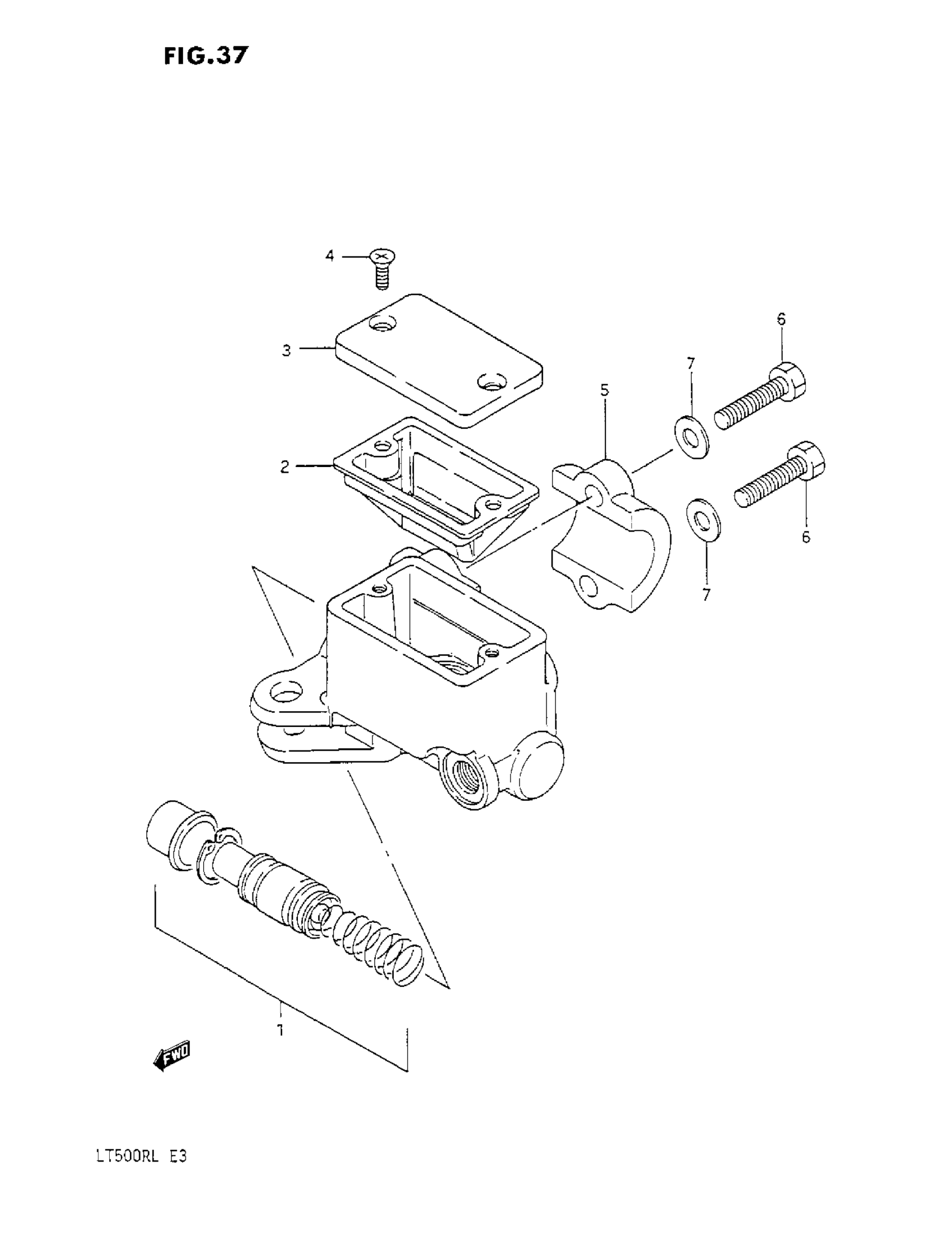

1987 Suzuki LT500R Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CYLINDER ASSY, FRONT MASTER | MODEL H/J/K This part replaces 59600-19A00.

59600-25C00

1
Out of stock

1

CYLINDER ASS'Y, FRONT MASTER | MODEL L

59600-25C00

1
Out of stock

1

PISTON/CUP SET This part replaces 59600-36820.

59600-04810

1
Out of stock

2

DIAPHRAGM

59667-24500

1

$13.50

In stock

3

1

$15.49

In stock

3

CAP | MODEL L

69669-24A01

1

$15.49

In stock

4

SCREW, CAP

69689-49300

2
Out of stock

5

HOLDER

59671-19B00

1

$22.65

In stock

7

.WASHER This part replaces 08322-21064.

08322-0106B

2
Out of stock
