1987 Suzuki LT500R Brake Lever Diagram

← All diagrams

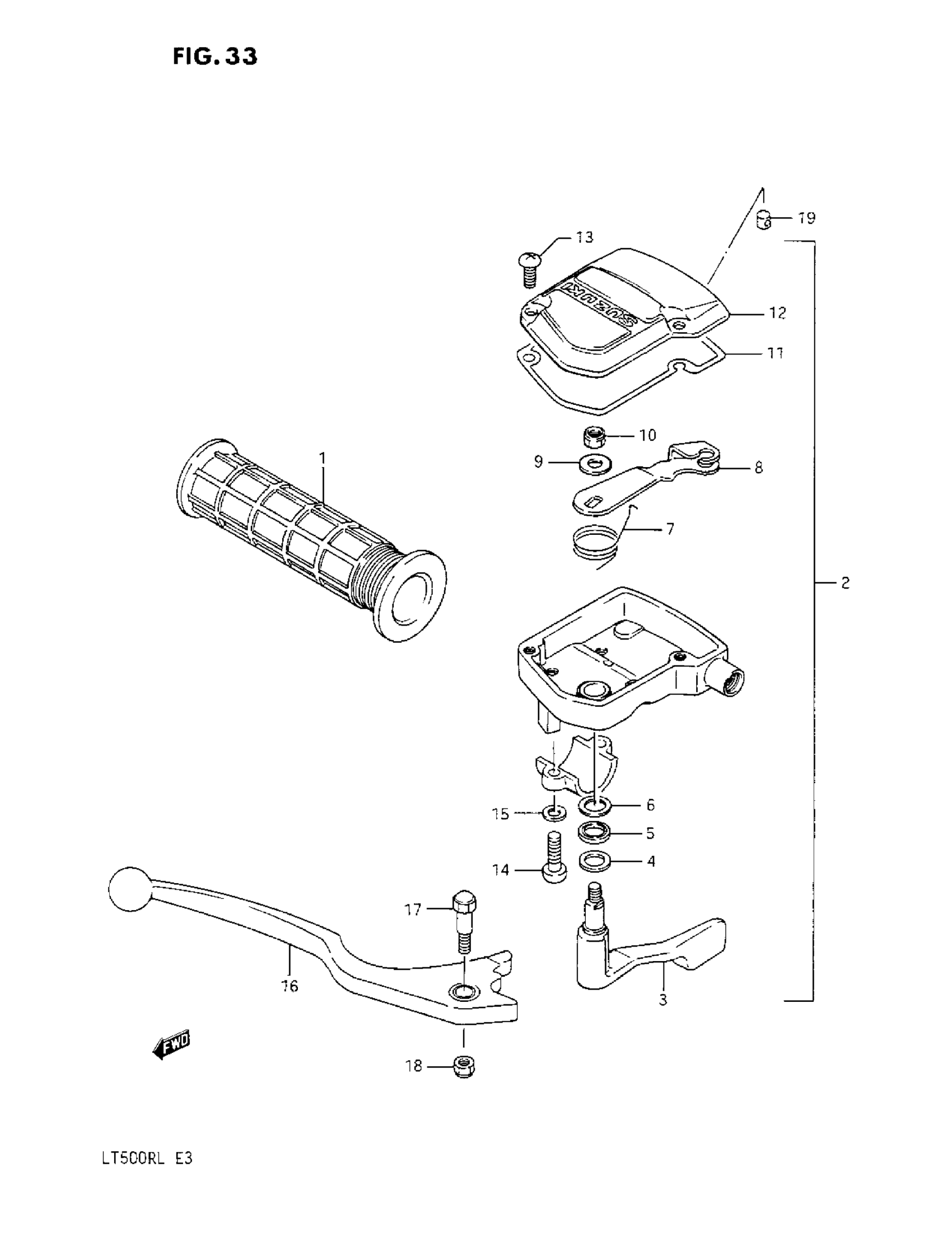

Find the part on the Brake Lever diagram for your 1987 Suzuki LT500R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Suzuki LT500R Brake Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP This part replaces 57211-19A03-291.

57211-19A04-291

1
Out of stock

2

CASE ASSY, THROTTLE | MODEL H ~F.NO.102037 This part replaces 57100-43B00.

57100-43B01

1
Out of stock

2

CASE ASS'Y, THROTTLE | MODEL H F.NO.102038~ MODEL J/K/L

57100-43B01

1
Out of stock

3

CASE ASSY, THROTTLE | MODEL H ~F.NO.102037 This part replaces 57151-43B00.

57100-43B01

1
Out of stock

3

LEVER | MODEL H F.NO.102038~ MODEL J/K/L

57151-43B01

1
Out of stock

4

WASHER (8.4X15.5X1.6) | MODEL H ~F.NO.102037

57154-43B00

1
Out of stock

4

WASHER (8.2X14.0X1.0) | MODEL H F.NO.102038~ MODEL J/K/L

57154-43B01

1
Out of stock

5

DUST SEAL (8.0X14.0X4.0) | MODEL H ~F.NO.102037

57159-43B00

1
Out of stock

5

DUST SEAL (8.0X12.0X3.0) | MODEL H F.NO.102038~ MODEL J/K/L

57159-43B01

1
Out of stock

6

WASHER (8.2X12.0X0.5) | MODEL H F.NO.102038~ MODEL J/K/L

57152-43B01

1
Out of stock

7

SPRING

57134-43B00

1
Out of stock

8

ARM, THROTTLE CABLE

57158-43B00

1
Out of stock

9

WASHER

57153-43B00

1
Out of stock

10

.NUT This part replaces 08319-21056.

08319-2105A

1
Out of stock

11

GASKET

57157-43B00

1
Out of stock

12

CASE ASSY, THROTTLE This part replaces 57121-43B00.

57100-43B01

1
Out of stock

13

2

$1.55

In stock

14

SCREW This part replaces 02112-05205.

02112-0520B

2
Out of stock

15

LOCK WASHER This part replaces 08321-21055.

08321-0105A

2
Out of stock

16

LEVER, BRAKE

57420-49101

1
Out of stock

17

BOLT

57431-49100

1
Out of stock

18

.NUT This part replaces 08319-21065.

08319-2106B

1
Out of stock

19

PIN, THROTTLE CABLE (L:6) | MODEL H/J

58631-07010

1
Out of stock

19

PIN, THROTTLE CABLE (L:7) | MODEL K/L

58631-22A00

1
Out of stock
