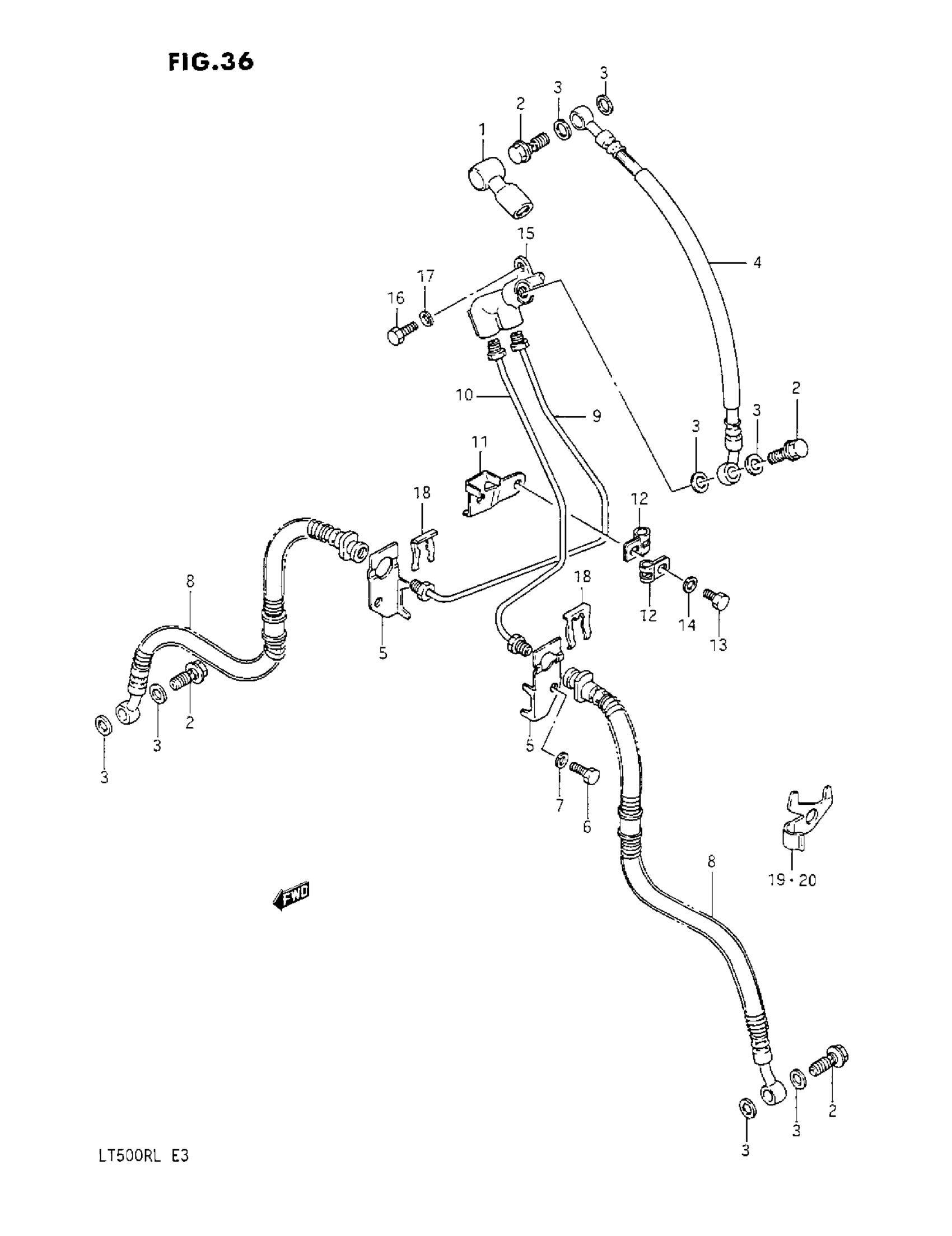

Suzuki LT500R (1987) FRONT BRAKE HOSE Diagram

#

Description
Price

1

BOOT,MASTER CYL This part replaces 59711-04700.

59711-04701

$20.62

2

BOLT

09360-10017

$3.42

3

WASHER (10X15X1.5)

09161-10009

$1.84

4

HOSE, FRONT BRAKE NO.1

59480-43B00

Unavailable

5

GUIDE, BRAKE HOSE NO.1

59266-43B00

Unavailable

6

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$1.97

7

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

8

HOSE, FRONT BRAKE NO.2

59240-43B01

Unavailable

9

PIPE, BRAKE RH

59250-43B00

Unavailable

10

PIPE, BRAKE LH

59450-43B00

Unavailable

11

BRACKET, BRAKE PIPE

59255-43B00

Unavailable

12

CLAMP

09403-06401

$2.83

13

BOLT This part replaces 01107-06126.

01500-0612A

$1.78

14

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

15

JOINT, THREE WAY This part replaces 59490-19A00.

59491-19A10

$53.33

16

BOLT This part replaces 01107-06166.

01500-0616A

$1.78

17

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

18

E RING This part replaces 09383-13001.

09383-13003

$2.30

19

CLAMP, HOSE NO.2 RH

59261-43B00

Unavailable

20

CLAMP, HOSE NO.2 LH

59271-43B00

Unavailable
