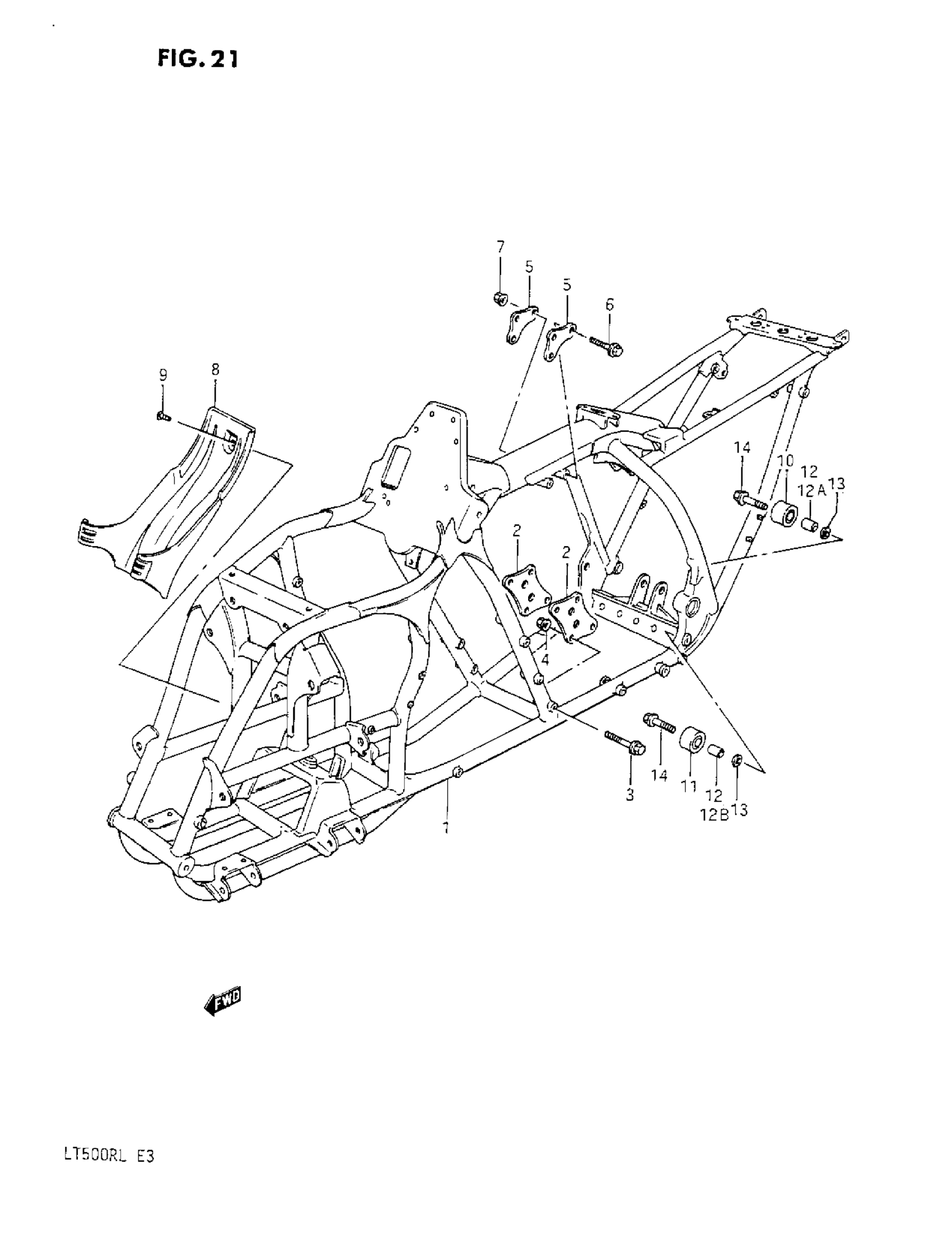

Suzuki LT500R (1987) FRAME Diagram

#

Description
Price

1

FRAME (BLUE) | MODEL H This part replaces 41100-43B00-19F.

41100-43810-19F

Unavailable

1

FRAME (BLUE) | MODEL J/K/L

41100-43810-19F

Unavailable

2

PLATE, MOUNT FRONT

41991-43B00

Unavailable

3

BOLT This part replaces 01517-08608.

01550-08607

$3.76

4

NUT

08319-31087

$2.32

5

PLATE, ENGINE MOUNT UPPER

41931-43B00

Unavailable

6

BOLT This part replaces 01517-08608.

01550-08607

$3.76

7

NUT

08319-31087

$2.32

8

COVER, RADIATOR FRONT

47311-43B00

Unavailable

9

SCREW This part replaces 02142-06125.

02142-0612A

$1.49

10

ROLLER, CHAIN CONTROL UPPER | MODEL H

43910-01B00

Unavailable

10

ROLLER, CHAIN CONTROL UPPER | MODEL J/K/L

43911-01B10

$16.63

11

ROLLER, CHAIN CONTROL LOWER

43910-22A10

Unavailable

12

SPACER | MODEL H This part replaces 09180-08119.

09180-08156

$6.70

12

SPACER (8.5X14X28) | MODEL J/K/L This part replaces 09180-08136.

09180-08206

$5.75

12

SPACER | MODEL J/K/L This part replaces 09180-08119.

09180-08156

$6.70

13

WASHER, GEAR SHAFT This part replaces 08211-08161.

09181-08167

$1.96

13

WASHER, LOWER | MODEL J/K/L

08211-08221

$2.45

14

BOLT

09103-08043

$3.18
