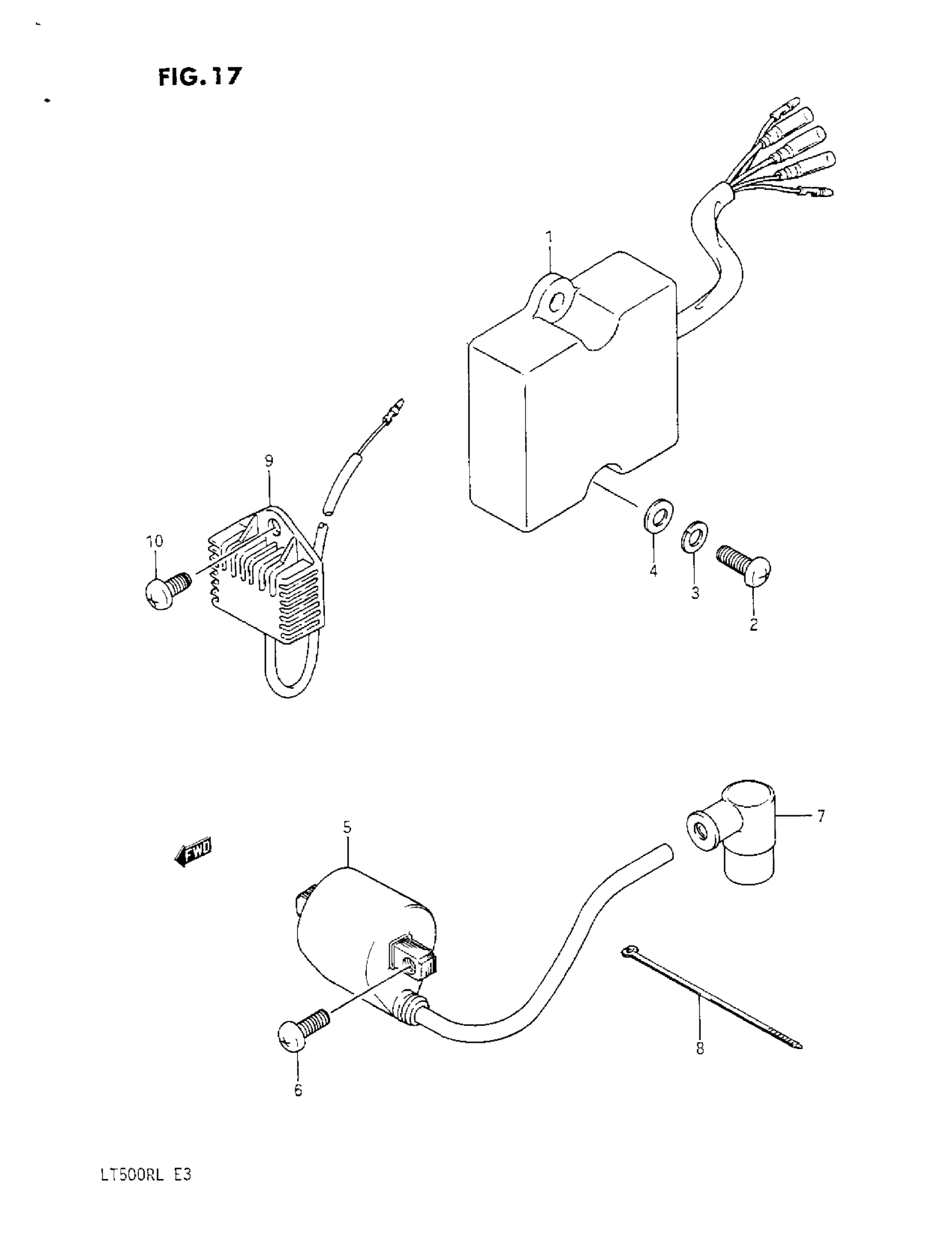

Suzuki LT500R (1987) ELECTRICAL Diagram

#

Description

Price

1

C.D.I UNIT ASSY This part replaces 32900-43B00.

32900-01C00

Unavailable

2

SCREW This part replaces 02112-06166.

02112-0616A

$1.49

3

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

4

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26

5

COIL ASSY,IGNIT This part replaces 33410-43B00.

33410-09412

Unavailable

6

SCREW This part replaces 02112-06166.

02112-0616A

$1.49

7

CAP, SPARK PLUG This part replaces 33510-41111.

33510-20A02

$24.39

8

BELT

09407-09402

$2.45

9

REGULATOR ASS'Y, VOLTAGE

32500-19A00

Unavailable

10

SCREW This part replaces 02112-06126.

02112-0612A

$1.49
