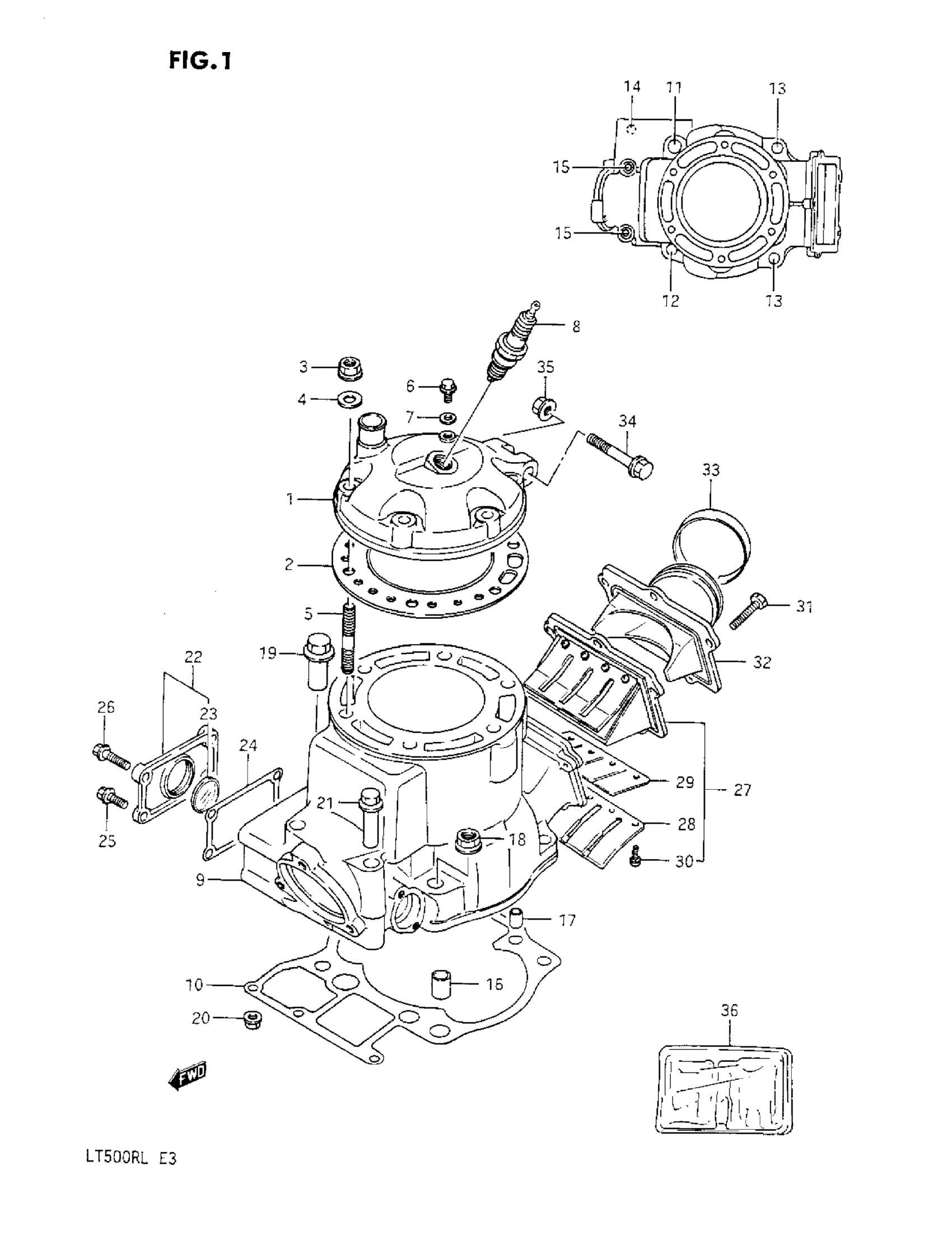

Suzuki LT500R (1987) CYLINDER (H) Diagram

#

Description
Price

1

HEAD, CYLINDER

11111-43B01

Unavailable

2

GASKET,CYL HEAD This part replaces 11141-43B01.

11141-43B20

Unavailable

3

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

4

WASHER

09164-08020

$2.06

5

STUD BOLT (L:35)

09108-08143

$3.78

6

BOLT, AIR DUCT

09360-06007

$2.30

7

GASKET

09168-06004

$1.49

8

SPARK PLUG (NGK, B8EGV)

09482-00208

Unavailable

9

CYLINDER

11210-43B00

Unavailable

10

GASKET,CYLINDER This part replaces 11241-43B00.

11241-43B10

Unavailable

11

NO DESCRIPTION AVAILABLE This part replaces 09108-10066.

09108-10066-XC0

Unavailable

12

BOLT,STUD This part replaces 09108-10091.

01421-1060A

$3.49

13

STUD BOLT (10X30)

09108-10092

Unavailable

14

STUD BOLT This part replaces 01421-06208.

01421-0620A

$1.91

15

BOLT,STUD This part replaces 01421-06458.

01421-0645A

$2.30

16

PIN This part replaces 09206-13001.

04211-13189

$2.19

17

PIN

04211-09129

$1.65

18

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39

19

NUT

09159-10065

Unavailable

20

NUT This part replaces 09159-06017.

08319-31067

$2.03

21

NUT

09159-06042

Unavailable

22

COVER, CYLINDER

11230-00B01

Unavailable

23

LENS

11232-01B00

Unavailable

24

GASKET, CYLINDER COVER (NA) This part replaces 11233-00B00.

11233-01C00

Unavailable

25

BOLT

01547-06167

$1.65

26

BOLT

01547-06207

$2.01

27

VALVE ASS'Y, REED

13150-43B00

Unavailable

28

STOPPER

13152-43B00

Unavailable

29

VALVE, REED

13153-14200

Unavailable

30

SCREW This part replaces 02112-03087.

02112-0308A

$1.80

31

BOLT This part replaces 01107-06207.

01500-06207

$2.28

32

PIPE, INTAKE

13110-43B00

Unavailable

33

CLAMP This part replaces 09402-56208.

09402-56901

$5.36

34

BOLT This part replaces 01517-08608.

01550-08607

$3.76

35

NUT

08319-31087

$2.32

36

NO DESCRIPTION AVAILABLE | OPT This part replaces 11400-43840.

11400-43845

Unavailable
