1987 Suzuki LT500R Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 1987 Suzuki LT500R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

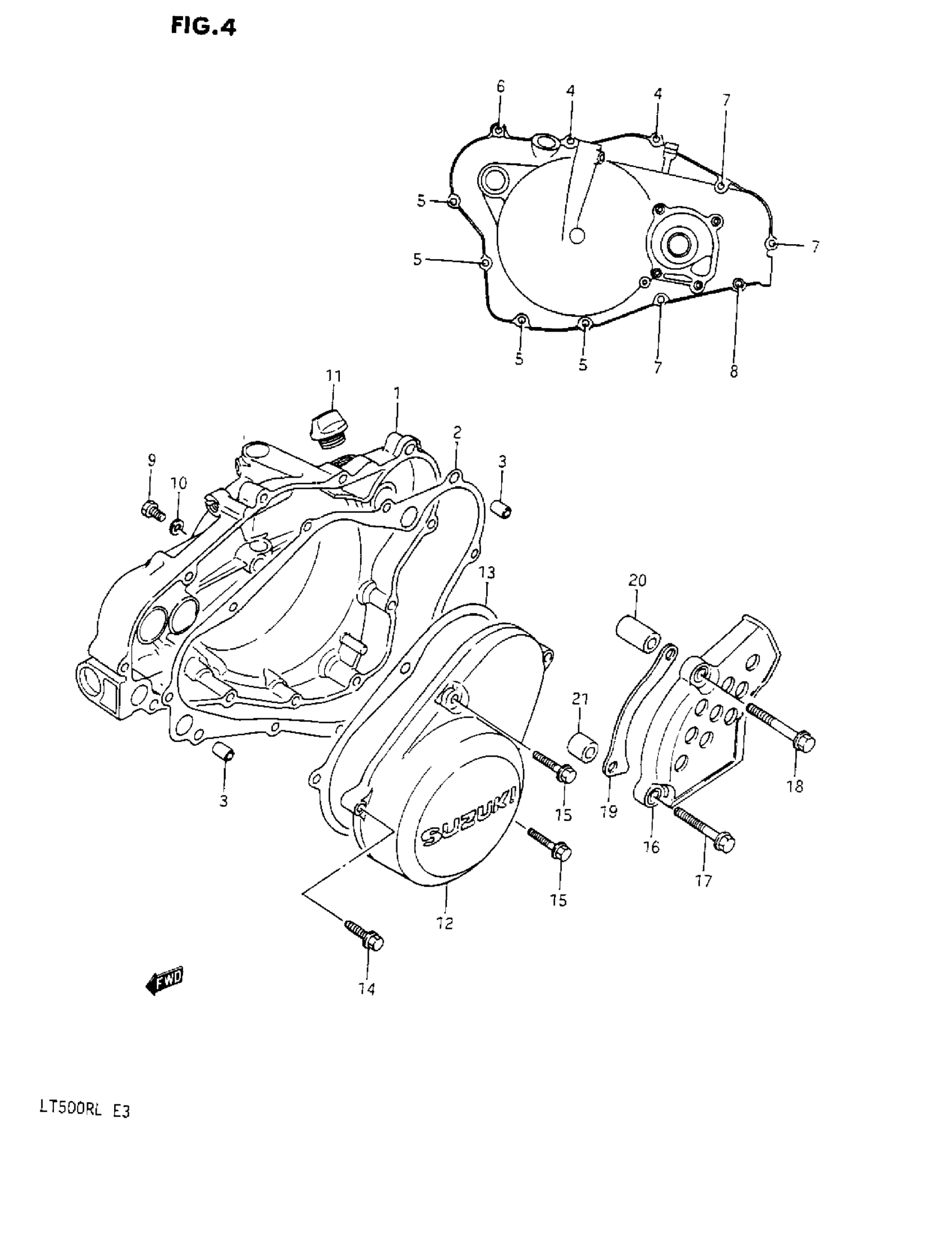

1987 Suzuki LT500R Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH

11340-43B00

1
Out of stock

2

GASKET, CLUTCH This part replaces 11482-43B00.

11482-43BV0

1
Out of stock

3

PIN

04211-09129

2
Out of stock

4

BOLT

01547-06307

2
Out of stock

5

BOLT

01547-06357

4
Out of stock

6

BOLT

01547-06407

1
Out of stock

7

BOLT

01547-06457

3
Out of stock

8

BOLT

01547-06657

1
Out of stock

9

SCREW (6X10) This part replaces 09128-06004.

09128-06044

1
Out of stock

10

GASKET

09168-06001

1
Out of stock

11

PLUG SET This part replaces 09200-20810.

09200-20811

1
Out of stock

12

COVER, MAGNETO

11351-43B00

1
Out of stock

13

GASKET, MAG COV This part replaces 11483-43B00.

11483-43BV0

1
Out of stock

14

BOLT

01547-06257

3
Out of stock

15

BOLT

01547-06307

2
Out of stock

16

COVER, SPROCKET

11360-43B01

1
Out of stock

17

BOLT This part replaces 01517-08408.

01550-08407

1
Out of stock

18

BOLT This part replaces 01517-08558.

01550-08557

1
Out of stock

19

PLATE, CHAIN GUIDE

27641-43B00

1
Out of stock

20

SPACER (L:26)

09180-08080

1
Out of stock

21

SPACER,8.1X16X1 This part replaces 09180-08115.

09180-08115-XC0

1
Out of stock
