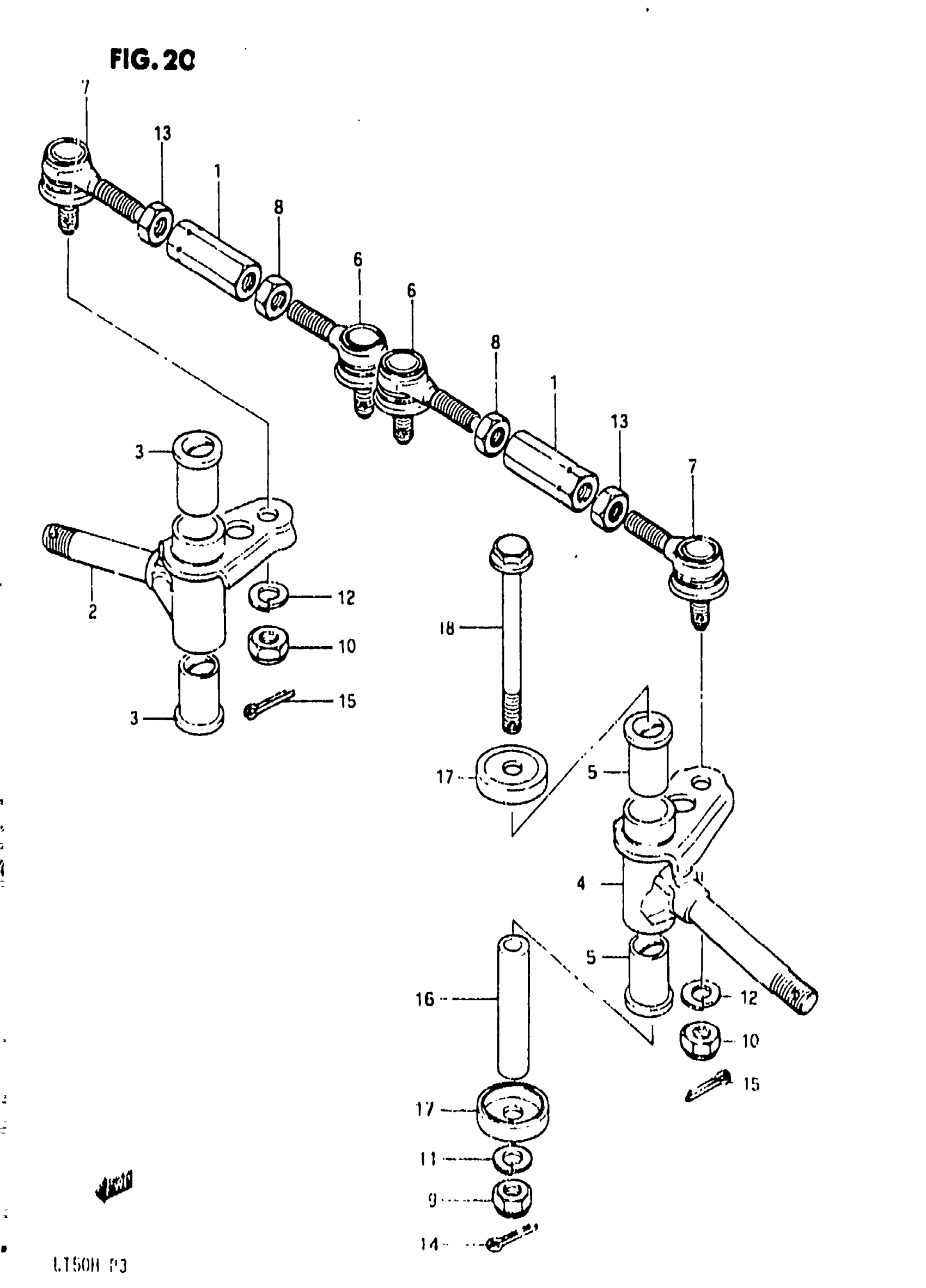

Suzuki LT50 (1987) TIE ROD Diagram

#

Description
Price

1

TIE ROD, STEARING

51281-04200

Unavailable

2

NO DESCRIPTION AVAILABLE | Includes Item(s) 3 This part replaces 51230-04200.

51230-04201

Unavailable

3

BUSH This part replaces 51236-24402.

51236-40B00

$19.07

4

NO DESCRIPTION AVAILABLE This part replaces 51240-04200.

51240-04201

Unavailable

5

BUSH This part replaces 51236-24402.

51236-40B00

$19.07

6

NO DESCRIPTION AVAILABLE This part replaces 51260-04200.

51260-04201

Unavailable

7

ROD END, LH This part replaces 51270-04200.

51270-04201

Unavailable

8

NUT This part replaces 08310-22105.

09140-10043

$2.68

9

NUT This part replaces 08319-31105.

08319-3110A

$2.73

10

NUT This part replaces 09159-10036.

09159-10027

$3.10

11

LOCK WASHER This part replaces 08321-21104.

08321-0110A

$1.84

12

LOCK WASHER This part replaces 08321-21104.

08321-0110A

$1.84

13

NUT, TIE ROD, LH

09140-10027

$1.49

14

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

15

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

16

SPACER, KINGPIN

51251-04201

Unavailable

17

DUST SEAL

51255-18900

$4.48

18

BOLT, KNUCKLE ARM

09103-10082

Unavailable
