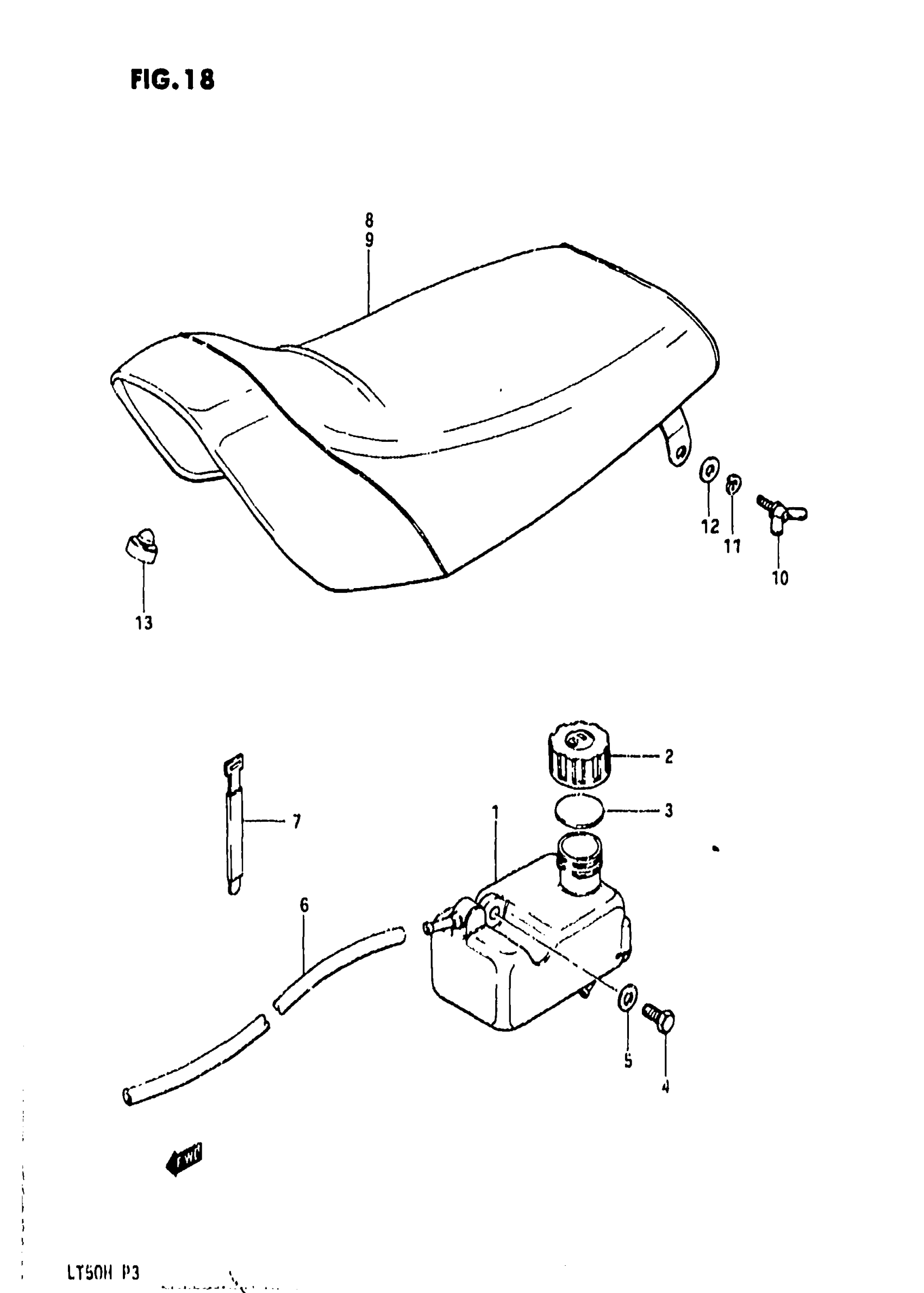

Suzuki LT50 (1987) OIL TANK-SEAT Diagram

#

Description
Price

1

TANK, OIL

44611-04600

Unavailable

2

CAP, OIL TANK

44651-05003

$5.05

3

OIL TANK CAP GA This part replaces 44661-27000.

44661-27001

$16.28

4

BOLT This part replaces 01107-06166.

01500-0616A

$1.78

5

WASHER

09160-06019

$1.49

6

HOSE This part replaces 09343-05165.

09352-50005-00B

$13.93

7

CLAMP | MODEL E This part replaces 09407-11301.

09407-18302

$2.28

8

SEAT SET | MODEL E This part replaces 45100-04600-54G.

45100-04650-4UZ

Unavailable

9

SEAT (BLACK) | MODEL F

45100-04610-48H

Unavailable

9

SEAT SET | MODEL G This part replaces 45100-04610-54G.

45100-04650-4UZ

Unavailable

9

SEAT SET | MODEL H This part replaces 45100-04620-4UZ.

45100-04650-4UZ

Unavailable

10

BOLT,STEERING A This part replaces 45241-04600.

09119-06130

$6.92

11

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

12

WASHER This part replaces 09160-06006.

09160-06084

$1.78

13

CUSHION

09321-10002

$2.22
