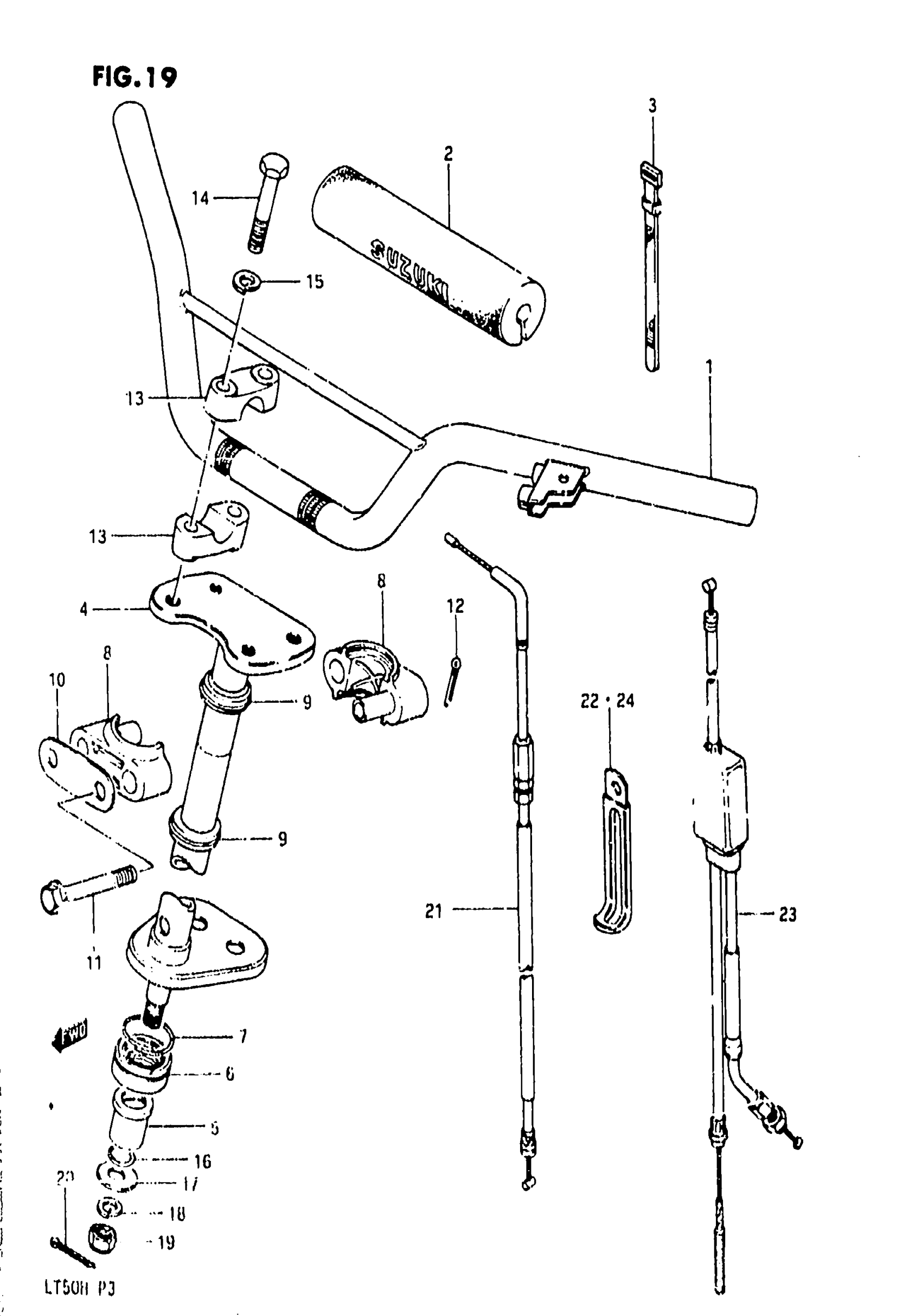

Suzuki LT50 (1987) HANDLEBAR-STEERING Diagram

#

Description
Price

1

HANDLEBAR (BLACK)

56110-04200-291

Unavailable

2

PAD CROSS

56172-04600

$14.20

3

BAND

09407-18401

$2.07

4

SHAFT, STEERING

51650-04200

Unavailable

5

BUSH, STEERING LOWGR

51661-24401

Unavailable

6

DUST SEAL, STEERING SHAFT

51662-18900

$7.36

7

CLIP, DUST SEAL

09380-31002

$2.43

8

HOLDER,STEERING SHAFT This part replaces 51670-18901.

51670-18902

$18.02

9

DUST SEAL, STEERING

51678-18900

$8.12

10

REINFORCEMENT

51681-18900

Unavailable

11

BOLT

09103-08085

$6.91

12

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

13

CLAMP, HANDLEBAR

56211-04200

$18.58

14

BOLT

01204-08507

$3.40

15

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

16

O RING (D:2.5,ID:13.8) This part replaces 09280-14003.

09280-14011

$4.77

17

WASHER This part replaces 09160-10068.

09160-10128-XC0

$2.62

18

LOCK WASHER This part replaces 08321-21104.

08321-0110A

$1.84

19

NUT This part replaces 09159-10036.

09159-10027

$3.10

20

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

21

CABLE ASSY, THROTTLE

58300-04201

$23.69

22

CLAMP This part replaces 09404-06401.

09404-06039

$1.74

23

CABLE ASSY,RR B This part replaces 58500-04200.

58500-04203

$48.89

24

CLAMP(L:80) This part replaces 09404-06404.

09404-06036

$1.74
