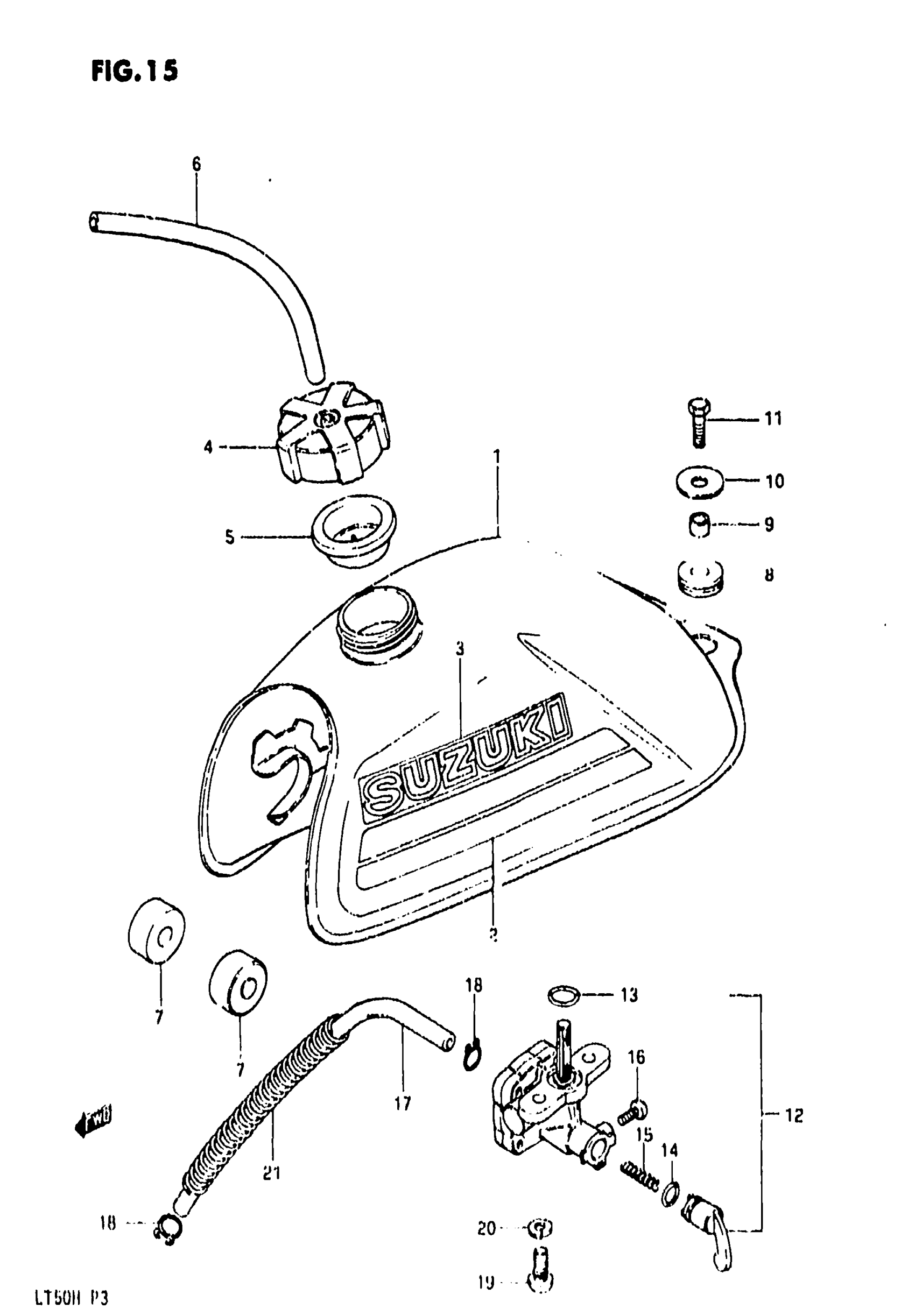

Suzuki LT50 (1987) FUEL TANK (MODEL E) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 3 This part replaces 44100-04200-00N.

44110-04600-13L

Unavailable

2

TAPE SET

68110-04200-96Z

Unavailable

3

EMBLEM, FRONT FENDER This part replaces 68111-04200-94A.

68111-19B00-7ZP

Unavailable

4

CAP SET,FUEL TA This part replaces 44211-04600.

44200-04610

$86.90

5

CAP SET,FUEL TA This part replaces 44248-04600.

44200-04610

$86.90

6

HOSE This part replaces 09343-05165.

09352-50005-00B

$13.93

7

CUSHION, FRONT

09329-10005

$2.11

8

CUSHION, REAR

09320-09002

$1.98

9

SPACER

09180-06038

$1.98

10

WASHER, FRONT This part replaces 09160-06004.

09160-06134

$1.91

11

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

12

COCK ASSY,FUEL | Includes Item(s) 13 - 16 This part replaces 44300-04450.

44300-04451

$50.65

13

O RING, JOINT

44348-41370

$1.91

14

O RING, LEVER

44353-41370

$4.37

15

SPRING This part replaces 44357-41370.

44357-32470

$2.21

16

SCREW

44343-41370

$2.22

17

HOSE,5X10X600 This part replaces 09343-05129.

44421-13ER0

$10.06

18

CLIP

09401-08401

$1.54

19

BOLT This part replaces 09125-06044.

09128-06008

$1.49

20

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

21

SPRING

09440-10019

$3.37
