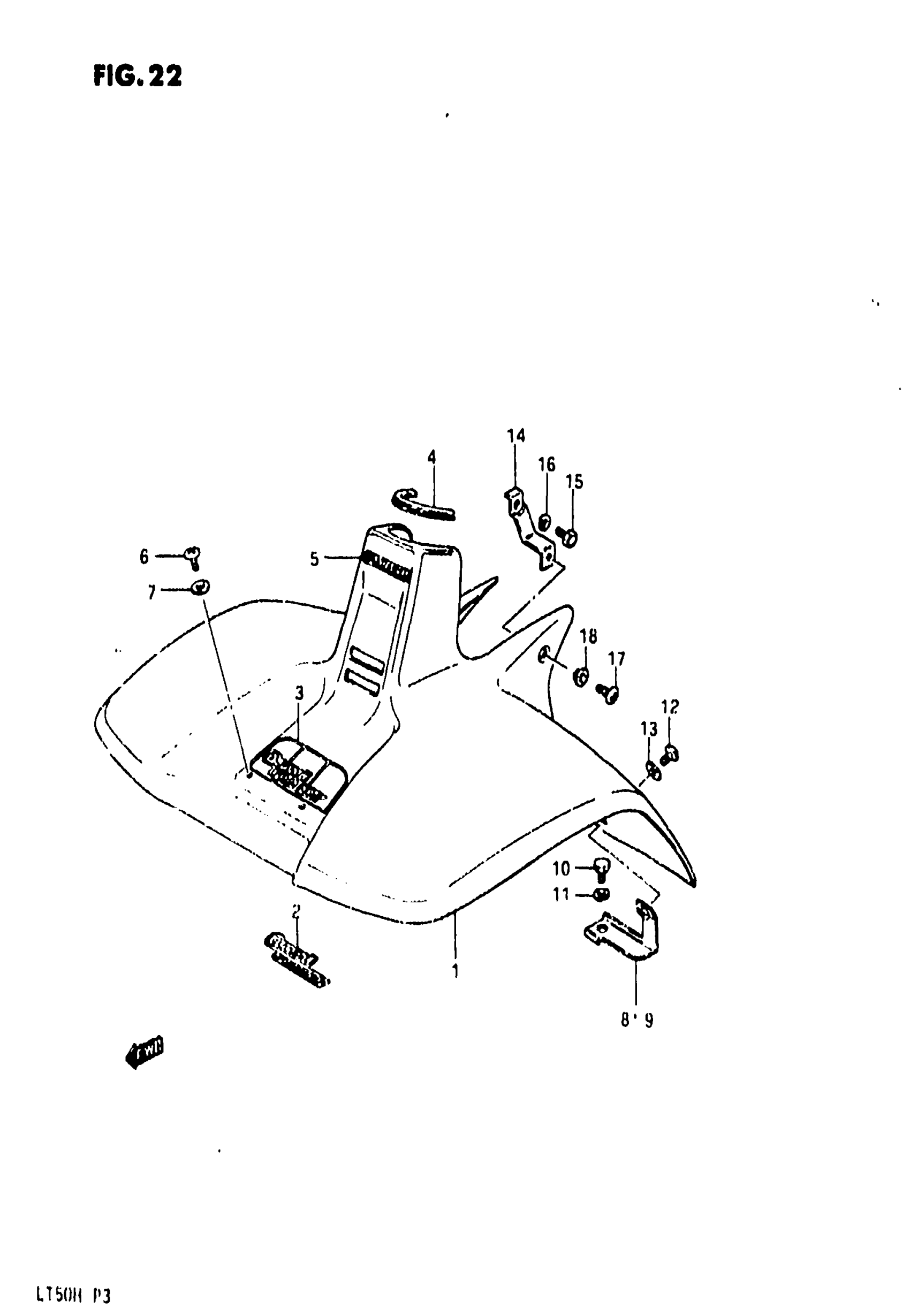

Suzuki LT50 (1987) FRONT FENDER (MODEL F/G) Diagram

#

Description
Price

1

FENDER, FRONT (ORANGE) | MODEL F This part replaces 53111-04200-00N.

53111-04201-25G

$318.75

1

FENDER, FRONT (YELLOW) | MODEL G This part replaces 53111-04200-163.

53111-04201-25Y

Unavailable

1

FENDER, FRONT (ORANGE) | MODEL G

53111-04200-25G

Unavailable

2

EMBLEM, FENDER NAME | MODEL F

68233-04210-7HF

Unavailable

3

EMBLEM, FENDER NAME | MODEL G, FOR 163

68233-04220-95C

Unavailable

3

EMBLEM, FENDER NAME | MODEL G, FOR 250

68233-04220-7ZH

Unavailable

4

MOLDING, METER This part replaces 58628-04200.

94527-19C00

$7.67

5

EMBLEM | MODEL F

68169-04200-92R

Unavailable

5

EMBLEM | MODEL G, FOR 163

68169-04200-99V

Unavailable

5

EMBLEM | MODEL G, FOR 25G

68169-04200-7ZP

Unavailable

6

SCREW, FENDER FRONT

02142-06127

$1.49

7

WASHER, FENDER FRONT

09160-06084

$1.78

8

BRACKET, FENDER LOWER, RH

53270-04200

$7.67

9

BRACKET, FENDER LOWER, LH

53280-04200

Unavailable

10

BOLT This part replaces 01107-06125.

01500-0612A

$1.78

11

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

12

SCREW, FENDER LOWER

02142-06127

$1.49

13

WASHER, FENDER LOWER

09160-06084

$1.78

14

BRACKET, FENDER SIDE, RH

53170-04200

Unavailable

14

BRACKET, FENDER SIDE, LH

53180-04200

Unavailable

15

BOLT This part replaces 01107-06125.

01500-0612A

$1.78

16

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

17

SCREW

02142-06127

$1.49

18

WASHER

09160-06084

$1.78
