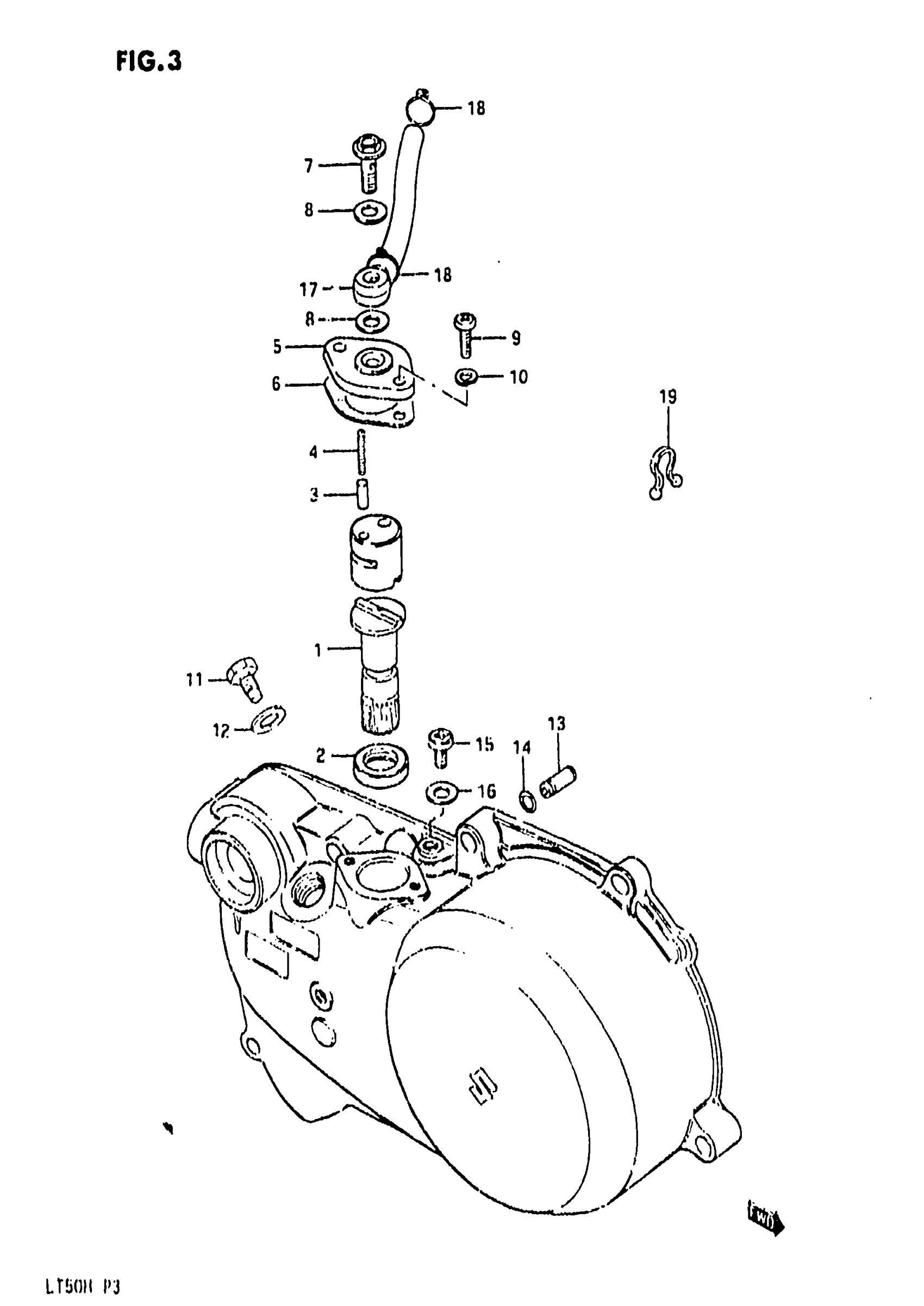

Suzuki LT50 (1987) CLUTCH COVER-OIL PUMP Diagram

#

Description
Price

0

COVER SET,CLUTC | INC. CLUTCH COVER; Includes Item(s) 1 - 18 This part replaces 11300-04891.

11300-04894

Unavailable

1

GEAR, OIL PUMP DRIVE | NT:23

16161-04000

$40.85

2

OIL SEAL (12X18.5X3)

09284-12004

$5.79

3

PLUNGER, SUB

09261-02006

$1.72

4

SPRING

09440-01001

$1.72

5

CAM, OIL PUMP

16251-04000

Unavailable

6

GASKET, OIL PUMP This part replaces 16731-04000.

16731-04000-H17

$3.02

7

UNION BOLT

09360-06003

$3.76

8

GASKET

09168-06004

$1.49

9

SCREW This part replaces 02112-04128.

02112-0412A

$1.49

10

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

11

STOPPER

09135-06007

$2.24

12

GASKET

09164-06003

$2.07

13

CHECK VALVE

16710-04010

Unavailable

14

O RING

09280-03003

$1.91

15

SCREW This part replaces 02112-05088.

02112-05087

$1.49

16

GASKET

09168-05001

$1.98

17

HOSE, OIL (L:512!97) This part replaces 16810-39100.

16810-07520

Unavailable

18

CLIP

09401-08401

$1.54

19

CLAMP

09408-00012

$2.13
