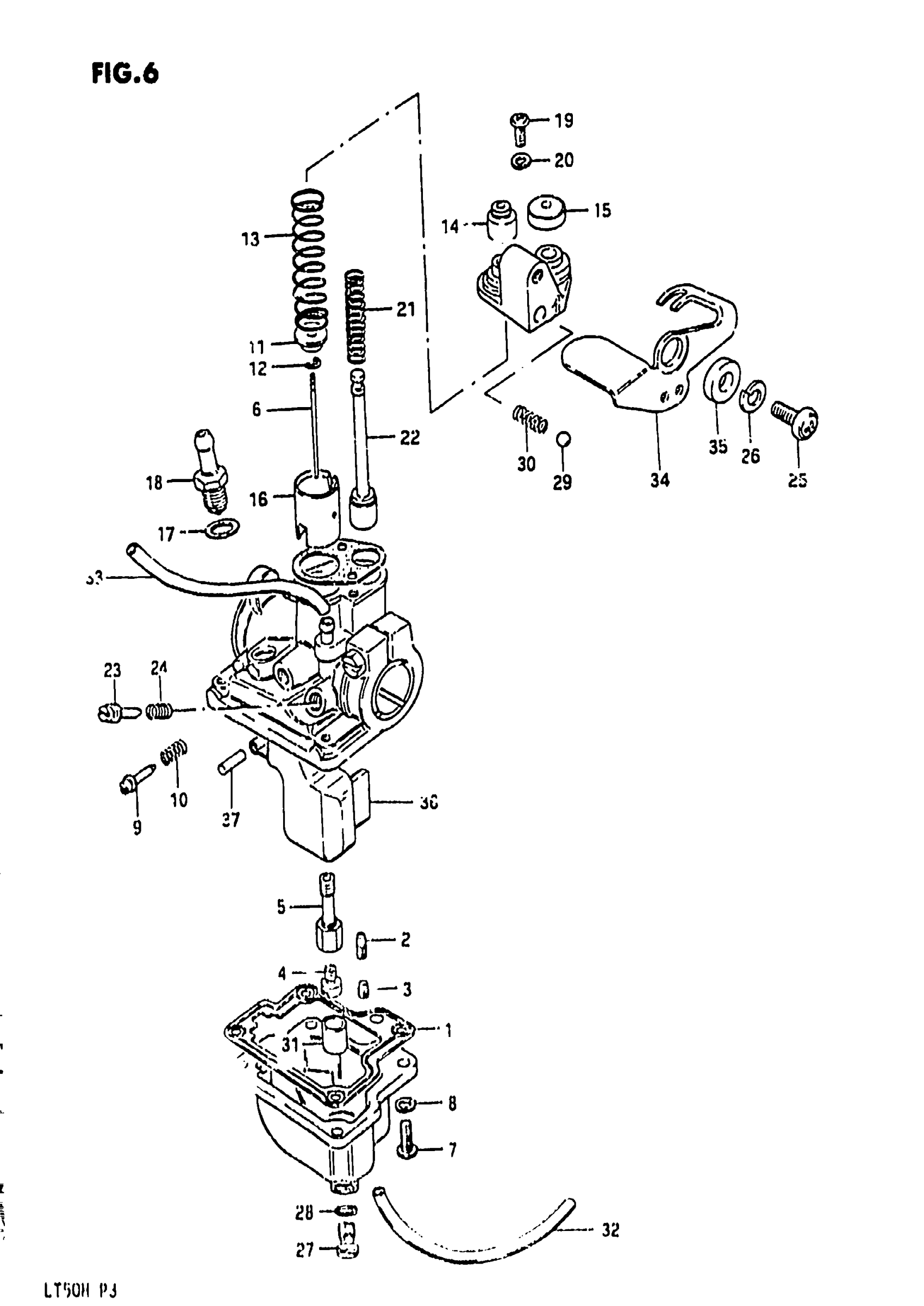

Suzuki LT50 (1987) CARBURETOR Diagram

#

Description
Price

0

CARBURETOR ASSY | Includes Item(s) 1 - 37 This part replaces 13200-04430.

13200-04432

$156.40

1

GASKET, FLOAT CHAMBER

13251-04110

$5.36

2

JET, PILOT NO.1 (15) This part replaces 09492-15002.

09492-15015

$16.78

3

JET, PILOT NO.2 (0.38)

09492-15007

$11.38

4

JET, MAIN (57.5)

09491-57003

$11.38

5

JET, NEEDLE ( E-6)

09494-00380

$25.33

6

NEEDLE, JET (3E3-3)

13383-19010

$16.00

7

SCREW This part replaces 02112-04126.

02112-0412A

$1.49

8

LOCK WASHER This part replaces 08321-21046.

08321-0104A

$1.84

9

SCREW, THROTTLE STOP

13267-01010

$7.73

10

SPRING, STOP SCREW

13268-01010

$5.28

11

SEAT, THROTTLE VALVE SPRING

13387-04430

$7.22

12

E RING This part replaces 13394-12110.

13394-40D00

$5.43

13

SPRING, THROTTLE VALVE

13573-27630

Unavailable

14

.CAP This part replaces 13681-04010.

13681-04011

$4.93

15

CAP, STARTER

13682-98010

$3.05

16

VALVE, THROTTLE (CA:3.0)

13551-04430

Unavailable

17

GASKET, VALVE SEAT

13663-31010

$2.80

18

VALVE, NEEDLE

13370-04110

$23.83

19

SCREW This part replaces 02112-04108.

02112-04107

$1.55

20

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

21

SPRING, STARTER VALVE

13417-18630

$6.00

22

VALVE, STARTER

13411-04410

$16.87

23

SCREW, PILOT AIR

13269-04010

$13.67

24

SPRING

13268-01010

$5.28

25

SCREW This part replaces 02112-06126.

02112-0612A

$1.49

26

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

27

PLUG, DRAIN

13247-05010

$5.11

28

GASKET, DRAIN PLUG

13249-05010

$1.98

29

BALL

13435-33110

$2.14

30

SPRING

13434-30650

$3.59

31

HOSE(4.5X8.5X60 | L:600-6.5 This part replaces 13683-35420.

09355-45001-600

$9.48

32

.HOSE (3X5X600) | L:300-175 This part replaces 13683-36A00.

09352-30504-600

$4.91

33

.HOSE (3X5X600) | L:300-200 This part replaces 13683-36A00.

09352-30504-600

$4.91

34

LEVER, STARTER

13413-04420

Unavailable

35

RING

13424-30650

$5.32

36

FLOAT

13252-04011

$23.83

37

PIN

13254-04010

$4.35
