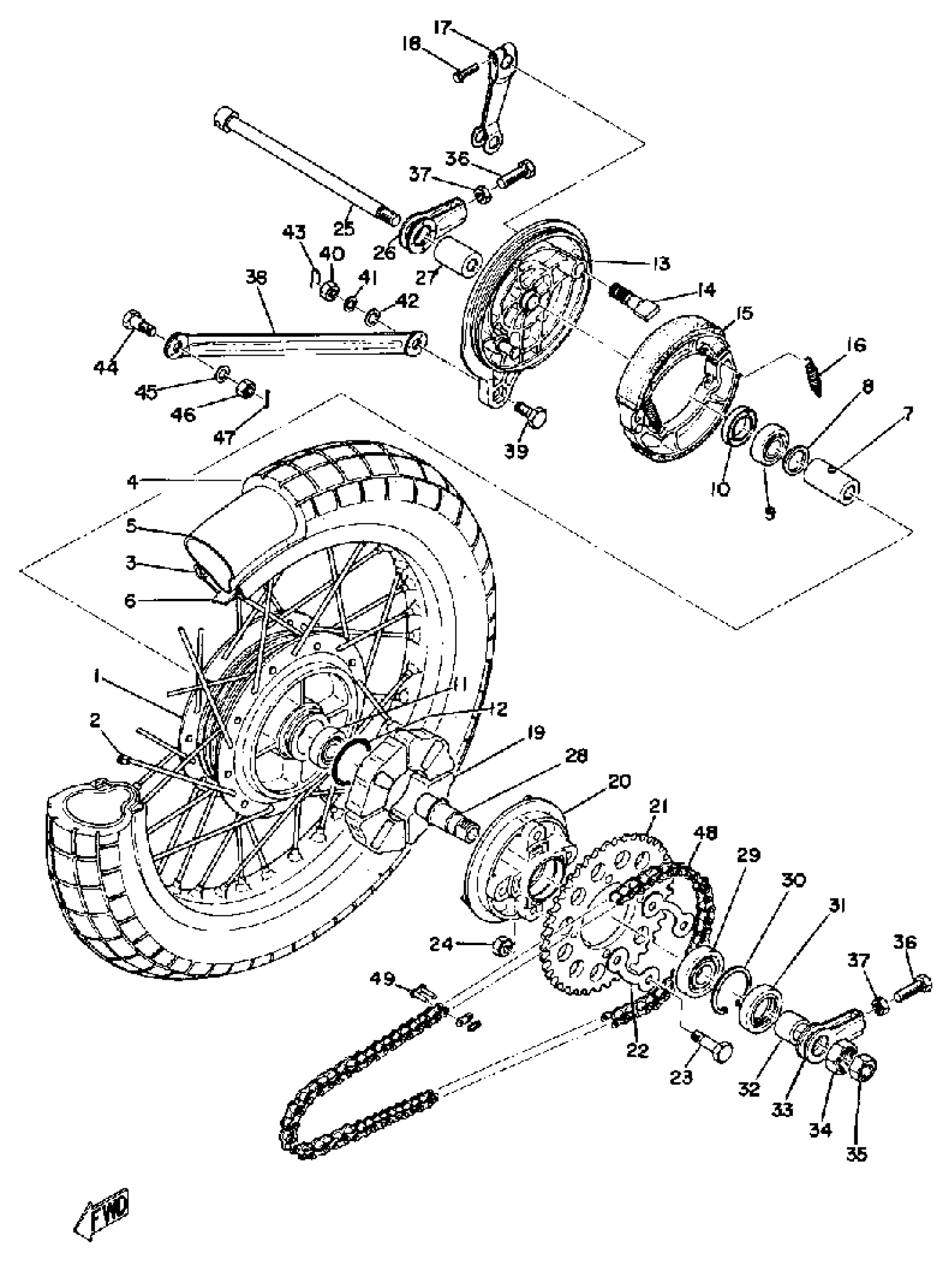

Yamaha LT3MX (LT3MX) LT20 1973 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

183-25311-00-00

Unavailable

2

SPOKE SET, REAR

183-25304-01-00

Unavailable

2

SPOKE SET, INNER 2

183-25396-90-00

Unavailable

2

SPOKE SET, OUTER 2

183-25397-90-00

Unavailable

3

RIM (1.40-18)

94414-18545-00

$116.99

4

300X18 YOKO Y610

94130-18041-00

Unavailable

4

TIRE, 300 X 18 YOKO Y620

94130-18322-00

Unavailable

5

TUBE (5H5)

94227-18195-00

$35.99

6

BAND, RIM (2J4)

94340-18086-00

$17.99

7

SPACER 136253170000

90560-15136-00

Unavailable

8

FLANGE, SPACER

146-25116-00-00

$8.99

9

BRG, R-B (7H4)

93306-20211-00

$25.99

10

OIL SEAL (22X35X5)

93104-22018-00

$11.49

11

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

$22.99

12

O-RING (183)

93210-42101-00

Unavailable

13

BRAKE SHOE PLATE ASSY

437-25026-10-35

Unavailable

14

CAMSHAFT

2RH-25351-00-00

Unavailable

15

BRAKE SHOE SET-2PCS

183-W2536-00-00

Unavailable

16

SPRING (5T9)

90506-17328-00

Unavailable

17

LEVER CAMSHAFT

1R0-25355-00-00

Unavailable

18

BOLT, HEXAGON

97017-06030-00

Unavailable

19

DAMPER, CLUTCH

304-25364-01-00

Unavailable

20

CLUTCH, HUB

58K-25366-00-00

Unavailable

21

SPROCKET, DRIVEN 45T

183-25446-20-00

Unavailable

21

SPROCKET, DRIVEN 49T

276-25449-10-00

Unavailable

21

SPROCKET, DRIVEN 52T

276-25452-10-00

Unavailable

22

WASHER

4AW-25412-00-00

Unavailable

23

BOLT(1AJ)

90101-08672-00

Unavailable

24

NUT(6L2)

95333-08600-00

Unavailable

25

AXLE, WHEEL

382-25381-00-00

Unavailable

26

PULLER, CHAIN

248-25388-00-00

Unavailable

27

COLLAR

90387-15425-00

Unavailable

28

SHAFT, SPROCKET

183-25387-00-00

Unavailable

29

BEARING(3BN)

93306-00438-00

Unavailable

30

CIRCLIP(5U8)

99009-42500-00

Unavailable

31

SEAL,OIL

93106-26005-00

Unavailable

32

COLLAR 183253860000

90387-20165-00

Unavailable

33

PULLER, CHAIN 1

214-25388-00-00

Unavailable

34

NUT, HEXAGON

90170-20167-00

Unavailable

35

NUT(6TC)

95337-14600-00

Unavailable

36

BOLT

90101-08060-00

Unavailable

37

. NUT

95380-08700-00

Unavailable

38

BAR, TENSION

27L-25371-00-00

Unavailable

39

BOLT 1092537300

90109-08063-00

Unavailable

40

. NUT

95380-08700-00

Unavailable

41

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

42

WASHER, PLAIN

92990-08200-00

Unavailable

43

PIN, COTTER

91490-25020-00

Unavailable

44

BOLT (183-25378-00)

90109-08368-00

Unavailable

45

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

46

. NUT

95380-08700-00

Unavailable

47

PIN, COTTER

91490-25020-00

Unavailable

48

CHAIN 428-112L

94580-88112-00

Unavailable

48

CHAIN

9Y582-51115-00

Unavailable

49

JOINT, CHAIN(3KX)

94681-64001-00

Unavailable
