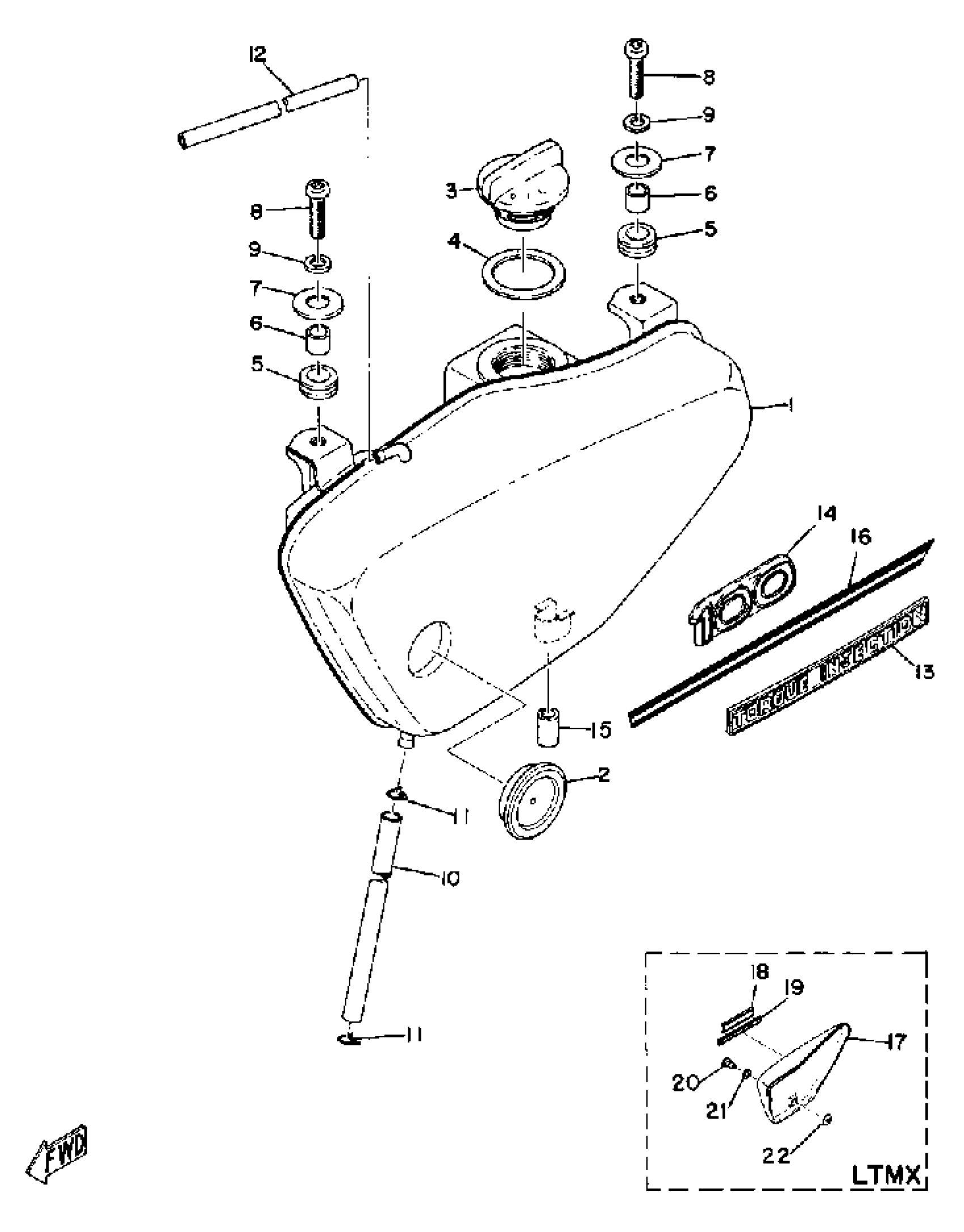

Yamaha LT3MX (LT3MX) LT20 1973 OIL TANK Diagram

#

Description
Price

1

OIL TANK ASSY

304-21705-01-R3

Unavailable

1

OIL TANK ASSY

304-21705-01-Y1

Unavailable

2

GAUGE, LEVEL

214-21761-00-00

Unavailable

3

BODY, OIL TANK CAP

1A0-21771-00-00

$29.13

4

GASKET 214217720000

90430-29114-00

$5.79

5

GROMMET 839774310000

90480-14023-00

$4.34

6

COLLAR (J10)

90387-06026-00

$6.45

7

WASHER, PLATE

90201-06380-00

$0.54

8

SCREW, PAN HEAD (76T)

98517-06025-00

$2.90

9

WASHER, SPRING

92995-06100-00

$2.95

10

HOSE (L1500)

90445-090F6-00

$24.98

11

CLIP 101235600

90467-08003-00

$5.88

12

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

$15.77

13

EMBLEM 7

305-21787-01-00

Unavailable

14

EMBLEM 6

305-21786-02-00

Unavailable

15

DAMPER, OIL TANK

437-21779-00-00

Unavailable

16

GRAPHIC

304-21799-00-33

Unavailable
