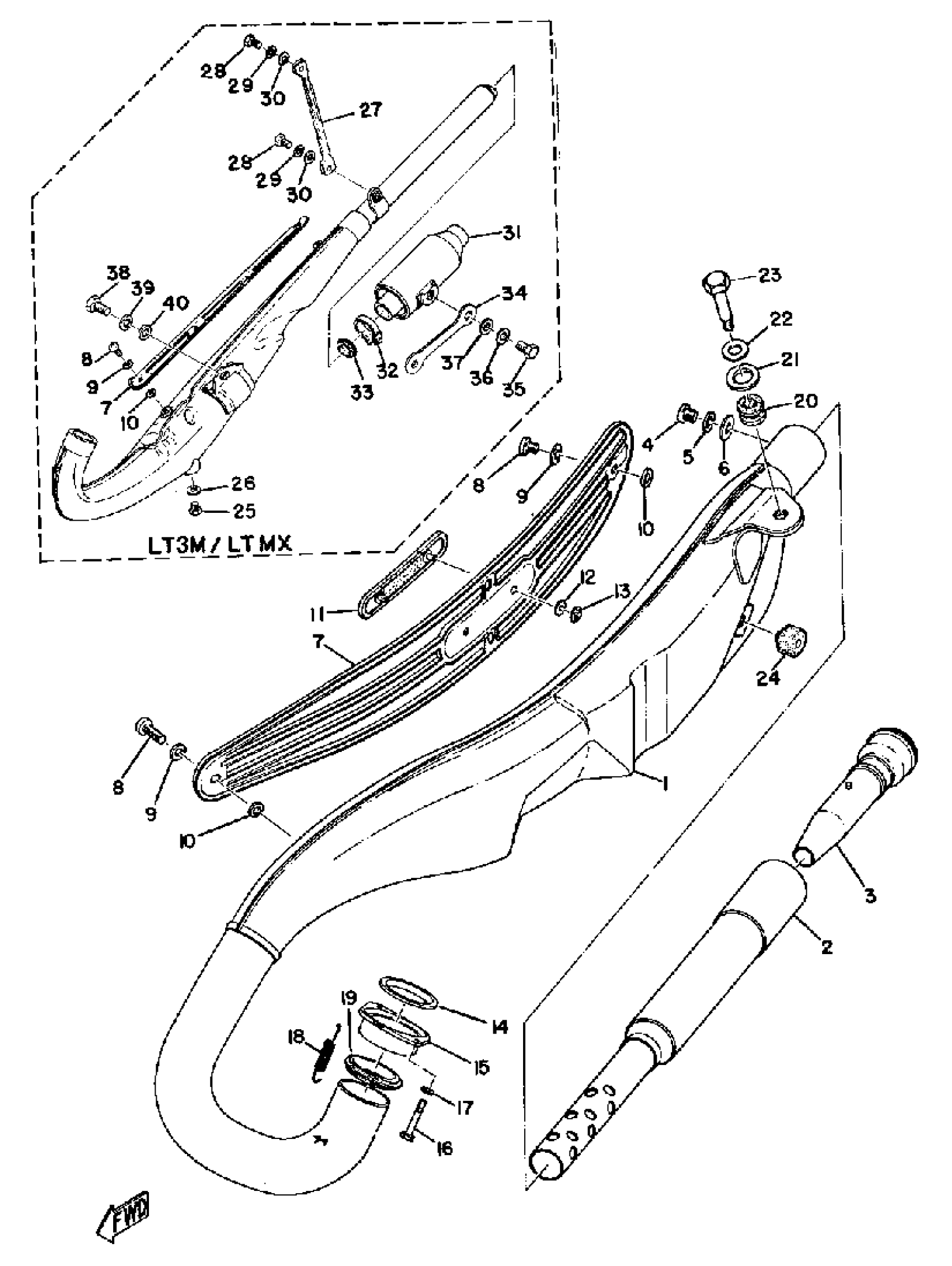

Yamaha LT3MX (LT3MX) LT20 1973 MUFFLER Diagram
#
1
EXHAUST PIPE ASSY L
305-14610-30-00
Unavailable
1
EXHAUST PIPE ASSY L
335-14610-00-00
Unavailable
2
. SILENCER, EXHAUST
214-14753-01-00
Unavailable
3
. PIPE, OUTLET
261-14752-30-00
Unavailable
5
WASHER, SPRING
92995-06100-00
Unavailable
7
PROTECTOR, MUFF 1
304-14718-00-93
Unavailable
7
PROTECTOR, MUFF 1
305-14718-30-00
Unavailable
11
EMBLEM, PROTECTOR
305-14729-30-00
Unavailable
14
GASKET, EXHAUST PIPE
3PA-14613-10-00
Unavailable
15
NUT, RING
2K5-14612-00-00
Unavailable
16
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
17
WASHER, SPRING
92995-06100-00
Unavailable
18
SPRING 214-14683-01
90506-12029-00
Unavailable
19
GASKET
248-14623-10-00
Unavailable
20
DAMPER, FRONT
168-21638-00-00
Unavailable
21
WASHER PLATE 168217580000
90201-18262-00
Unavailable
22
WASHER, PLATE (4N0)
90201-126A7-00
Unavailable
23
BOLT
90109-08391-00
Unavailable
24
STOPPER
1M3-27114-00-00
Unavailable
25
BOLT(3JP)
97017-06010-00
Unavailable
27
STAY, MUFFLER 1
304-14771-00-00
Unavailable
28
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
29
WASHER, SPRING
92995-06100-00
Unavailable
31
SILENCER, EXHAUST
335-14753-00-00
Unavailable
32
CLAMP, HOSE
90460-33049-00
Unavailable
33
GASKET
248-14623-10-00
Unavailable
34
STAY, MUFFLER
335-14791-00-00
Unavailable
35
BOLT(62E)
97013-08012-00
Unavailable
36
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
37
WASHER, PLAIN
92990-08200-00
Unavailable
38
BOLT(JA9)
90101-08691-00
Unavailable
39
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
40
WASHER, PLAIN
92990-08200-00
Unavailable
