1973 Yamaha LT3MX (LT3MX) Front Wheel Diagram

← All diagrams

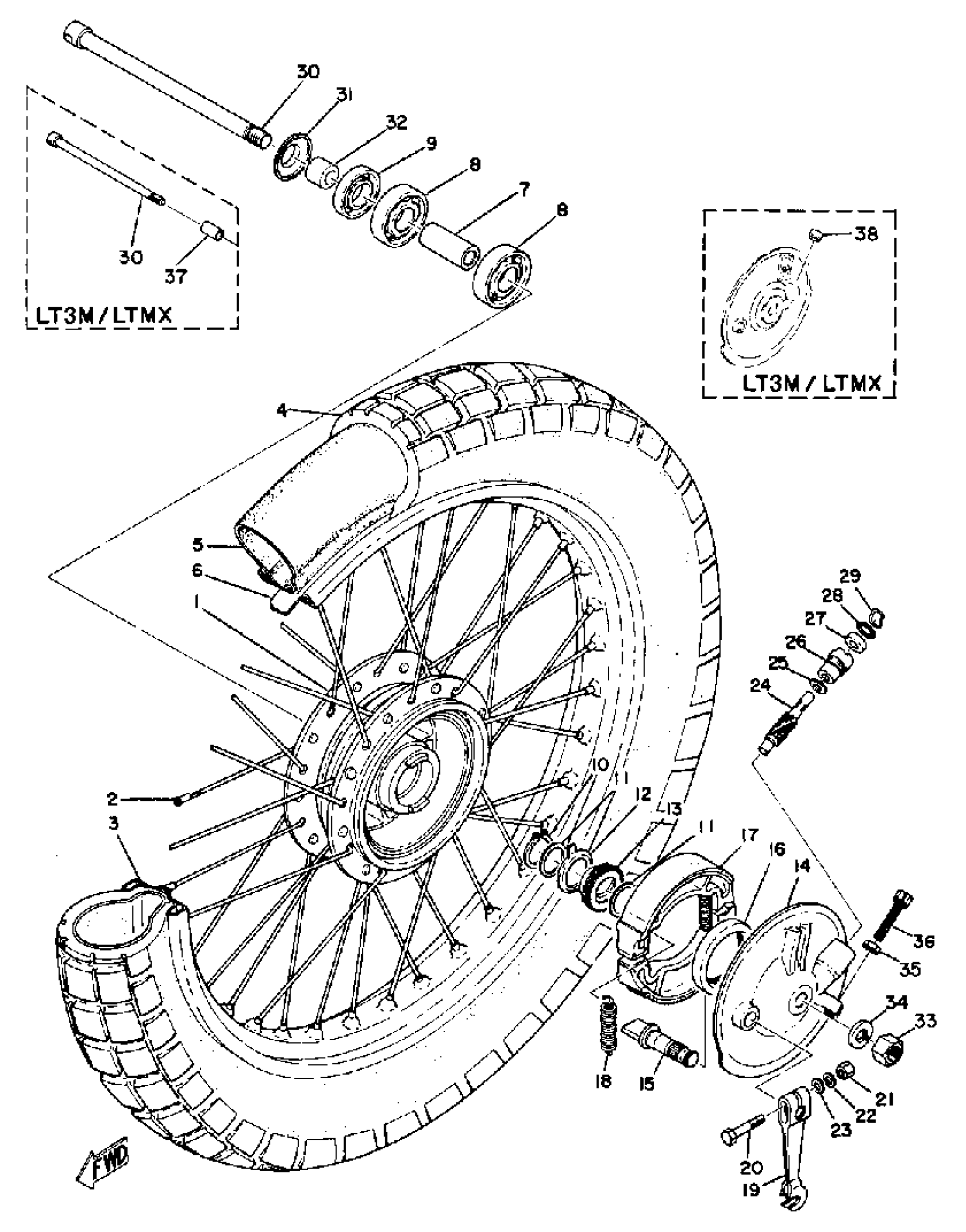

Find the part on the Front Wheel diagram for your 1973 Yamaha LT3MX (LT3MX), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha LT3MX (LT3MX) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

248-25111-10-00

1
Out of stock

2

SPOKE SET, FRONT

276-25104-10-00

1
Out of stock

2

SPOKE SET, FRONT

276-25104-40-00

1
Out of stock

2

SPOKE SET, INNER 1

276-25196-80-00

1
Out of stock

2

SPOKE SET, INNER 1

276-25196-90-00

1
Out of stock

2

SPOKE SET, OUTER 1

276-25197-80-00

1
Out of stock

2

SPOKE SET, OUTER 1

276-25197-90-00

1
Out of stock

3

RIM (1.40-18)

94414-18545-00

1

$107.12

In stock

3

RIM (1.40-19)

94414-19003-00

1
Out of stock

4

TIRE, 275 X 18 YOKO ENDURO

94127-18115-00

1
Out of stock

4

TIRE, 275 X 19 YOKO Y611

94127-19095-00

1
Out of stock

5

TUBE

94227-18010-00

1
Out of stock

5

TUBE (2.75-19)(3GX)

94227-19292-00

—

$33.15

In stock

6

BAND, RIM (2J4)

94340-18086-00

1

$16.00

In stock

6

BAND, RIM

94327-19111-00

1

$12.51

In stock

7

SPACER

90560-12138-00

—

$12.83

In stock

8

BEARING

93306-30102-00

—
Out of stock

9

OIL SEAL (18X37X8-109)

93102-18008-00

—

$22.31

In stock

10

CIRCLIP(1AR)

99009-20400-00

—
Out of stock

11

WASHER, PLATE 1832514700

90201-20269-00

—
Out of stock

12

CLUTCH, METER

183-25149-00-00

—
Out of stock

13

GEAR, DRIVE

248-25135-00-00

1
Out of stock

14

BRAKE SHOE PLT ASSY

437-25120-10-00

1
Out of stock

15

CAM SHAFT

122-25351-02-00

—

$36.95

In stock

16

SEAL,OIL

93105-47007-00

—
Out of stock

17

BRAKE SHOE SET-2 PCS

326-W2536-00-00

1
Out of stock

18

SPRING, TENSION (566).

90506-16150-00

—

$6.98

In stock

19

LEVER, CAM SHAFT

137-25155-00-00

—

$27.94

In stock

20

BOLT(JF7)

97080-06030-00

—

$3.45

In stock

21

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

22

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

23

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

24

GEAR, METER

214-25138-00-00

—

$18.32

In stock

25

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

26

BUSHING

109-25136-00-00

—

$8.78

In stock

27

OIL SEAL (7X14X4-136)

93104-07003-00

—

$7.29

In stock

28

O-RING (26H)

93210-14579-00

—

$5.69

In stock

29

RING, STOP

102-25137-00-00

—
Out of stock

30

AXLE, WHEEL

357-25181-00-00

1
Out of stock

30

AXLE, WHEEL

427-25181-10-00

1
Out of stock

31

COVER, HUB DUST

2K5-25118-00-00

—
Out of stock

32

COLLAR 1832518300

90387-12095-00

—

$4.63

In stock

33

NUT(3DM)

95304-12600-00

—

$6.68

In stock

34

YBS67-12 WASHER,SPRING

92990-12100-00

—

$6.68

In stock

35

NUT (109-26344-00)

90179-06143-00

—

$6.68

In stock

36

BOLT (109-26345-00)

90123-06011-00

—

$14.12

In stock

37

COLLAR

90387-12099-00

1
Out of stock

38

PLUG 288251390000

90338-18014-00

—

$7.57

In stock
